2. GenerAL DeScrIPTIOn
The TRANTEC Wireless Antenna Distributor S5-ADU is designed to be used in conjunction with a UHF band
system for sound reinforcement applications.
It comes with 2 channels, in which a single antenna signal is distributed to 5 outputs.
3. HAnDLInG PrecAUTIOnS
• When installing, keep the unit, receiving antennas, and antenna cables as far away as possible from fluorescent
lamps, digital equipment, personal computers, and other equipment which generate RF frequency noise.
• Do not install the receiving antennas in close proximity to metal objects, such as iron frames and lockers.
Keep the antennas at least 30 cm (11.81") away from the wall surface.
• Pairs of antennas should be at least 3 m (9.84 ft) away from each other to obtain the optimum diversity effect,
although this distance differs depending on the construction and size of the room where they are installed.
• When cleaning the case, use a dry cloth. Never use benzine, thinner or other volatile liquids.

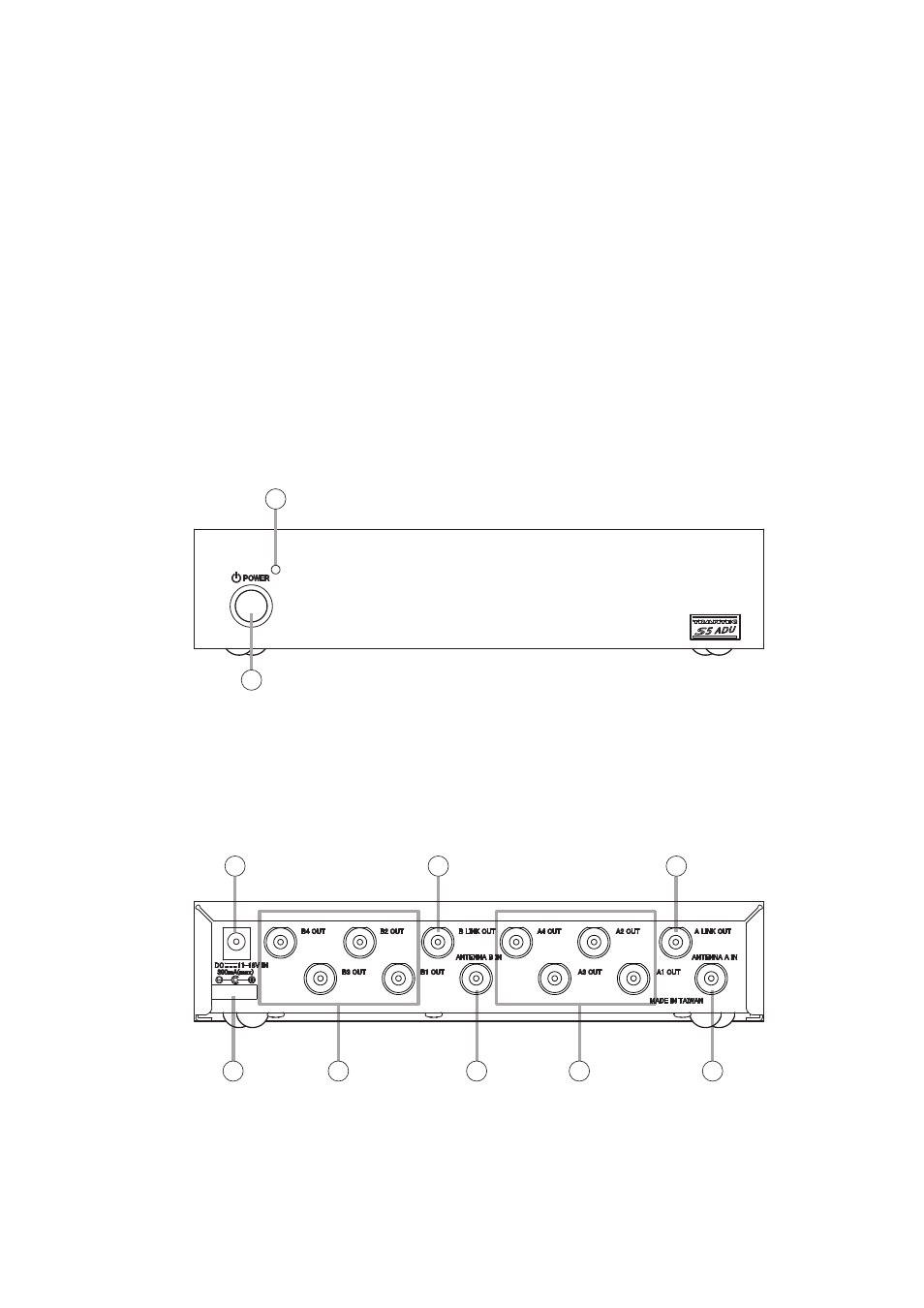

4. nOMencLATUre AnD FUncTIOnS
[Front]
2
1
1. Power switch
Press this switch to switch on the power. Press this
switch again to switch off the power.
2. Power lamp
Lights when the power is switched on.
[rear]
4
5 6 6
3
7 7
4
3. Dc power input
Connect the power cable of AC adapter* to this
jack.
* "A" version : Supplied
"W" version : Consult your TOA dealer.
4. Antenna link output A, B
50 Ω, BNC. Connect the additional S5-ADU
antenna input.
