Model Number RS-140 RS-143 RS-144
Call Button 1 Momentary (CALL) Momentary (EMERGENCY)
Call Button 2 - Momentary (NORMAL)
Privacy Button Latching (PRIVACY) -
Call Indicator Flashing red -
Conversation Indicator Lit red -
Privacy Indicator Lit red -
Wiring 2-core shielded cable
Transmission Distance 500 m/ø0.5 mm (AWG24), 800 m/ø0.65 mm (AWG22),
1300 m/ø0.9 mm (AWG19)
Operating Temperature 0 to +40°C
Finish Panel Stainless steel, hairline
Call Button 1 Resin, red
Call Button 2 - Resin, white
Privacy Button Resin, white -
Dimensions 70 (w) x 115 (h) x 28.6 (d) mm
Weight 80 g
Accessory Mounting bracket ... 1, No. 6-32 UNC x 18 ... 2, Machine screw M4 x 30 ... 2,
No. 6-32 UNC x 30 ... 2
Applicable Box Flush-mount box: YC-801 (option)
Wall-mount box: YC-802 (option)
Model Number RS-141
Handset Receiver Dynamic type
Handset Microphone Electret condenser type
Wiring 2-core shielded cable
Handset Receiver Slide volume
Volume Control Maximum attenuation level: 12 – 18 dB
Operating Temperature 0 to +40°C
Finish ABS resin, pale white
Dimensions 116 (w) x 220 (h) x 71 (d) mm
Weight 350 g
Accessory No. 6-32 UNC x 18 ... 4, Machine screw M4 x 25 ... 4
Applicable Box 2-gang electrical box: YC-302 (option)
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer:
TOA Corporation
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Japan
Authorized representative:
TOA Electronics Europe GmbH
Suederstrasse 282, 20537 Hamburg,Germany
5. SPECIFICATIONS

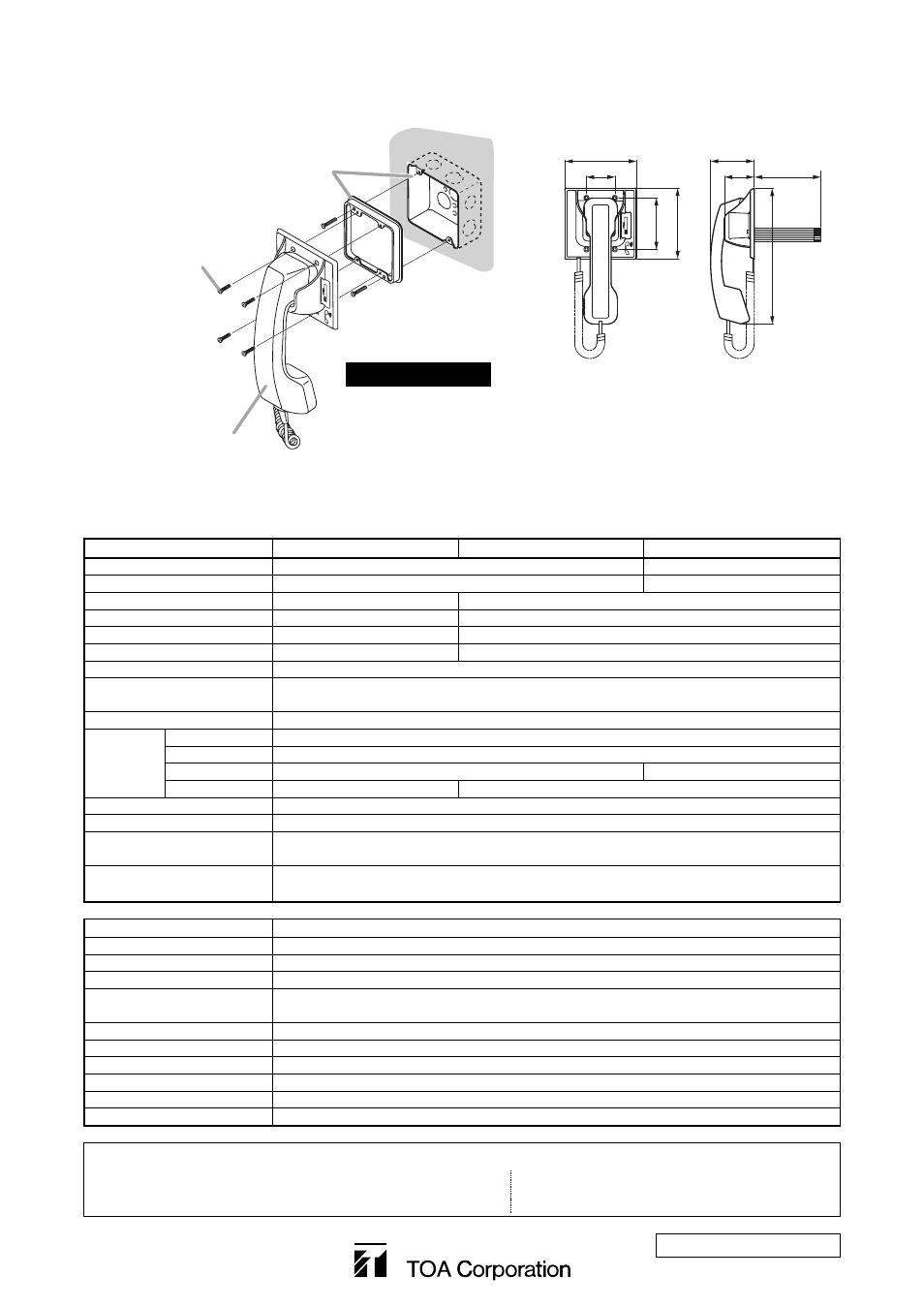

4.2. Option Handset Installation
Mount the option handset to an electrical box mounted in the wall.
116 71
46 48 200 or less
Unit: mm
83.5 11
5
220
RS-141
[Dimensional diagram]
YC-302
2-gang electrical box
(option)
Machine screw M4 x 25
(supplied with the RS-141)
Wall surface
Accessory screws
The RS-141 comes with 2 types of screws: M4 x 25 and UNC
No. 6-32 x 18.
For the electrical box provided with unified threads, use the
UNC No. 6-32 x 18.
