6. SERVICING
Failure
Should amplifier fail, contact your nearest TOA authorized contractor or service center.
7. OPERATION
Be sure to complete all connections before operation.
7.1. Basic Operation Procedure
Step 1. Press the power switch to turn on the power.
The power indicator lights. The amplifier comes into operation about 5 seconds after the power has
been switched on.
Step 2. Adjust the individual input and master volume controls for the optimum level.
Turn the knob clockwise to increase the output level and counterclockwise to decrease it. Sound
quality is downgraded when the Peak Indicator remains lit.
Step 3. Adjust the graphic equalizer.
The one-octave graphic equalizer allows more precise frequency adjustments response to room
acoustics, reducing feedback opportunities and improving intelligibility.
Characteristic of this equalizer is on p. 9. Adjust it to obtain the desired frequency response by
actually hearing the sound or by using pink noise.
To make the adjustment, place the EQ switch in the IN position.
If a control knob is moved up, center frequency is boosted and if down, it is cut. Placing the EQ switch
in the OUT position bypasses the equalizer circuit and makes frequency response flat.
7.2. Filter ON/OFF
When the HIGH PASS FILTER switch is in the ON position, low frequency is cut. In this event, low frequency
below 180 Hz may be cut at a 12 dB/OCTAVE rate. When LOW PASS FILTER switch is in the ON position,
high frequency of 7 kHz or higher may be cut at a 12 dB/OCTAVE rate.
To bypass the filter, place the filter switch in the OFF position.
7.3. Compressor ON/OFF

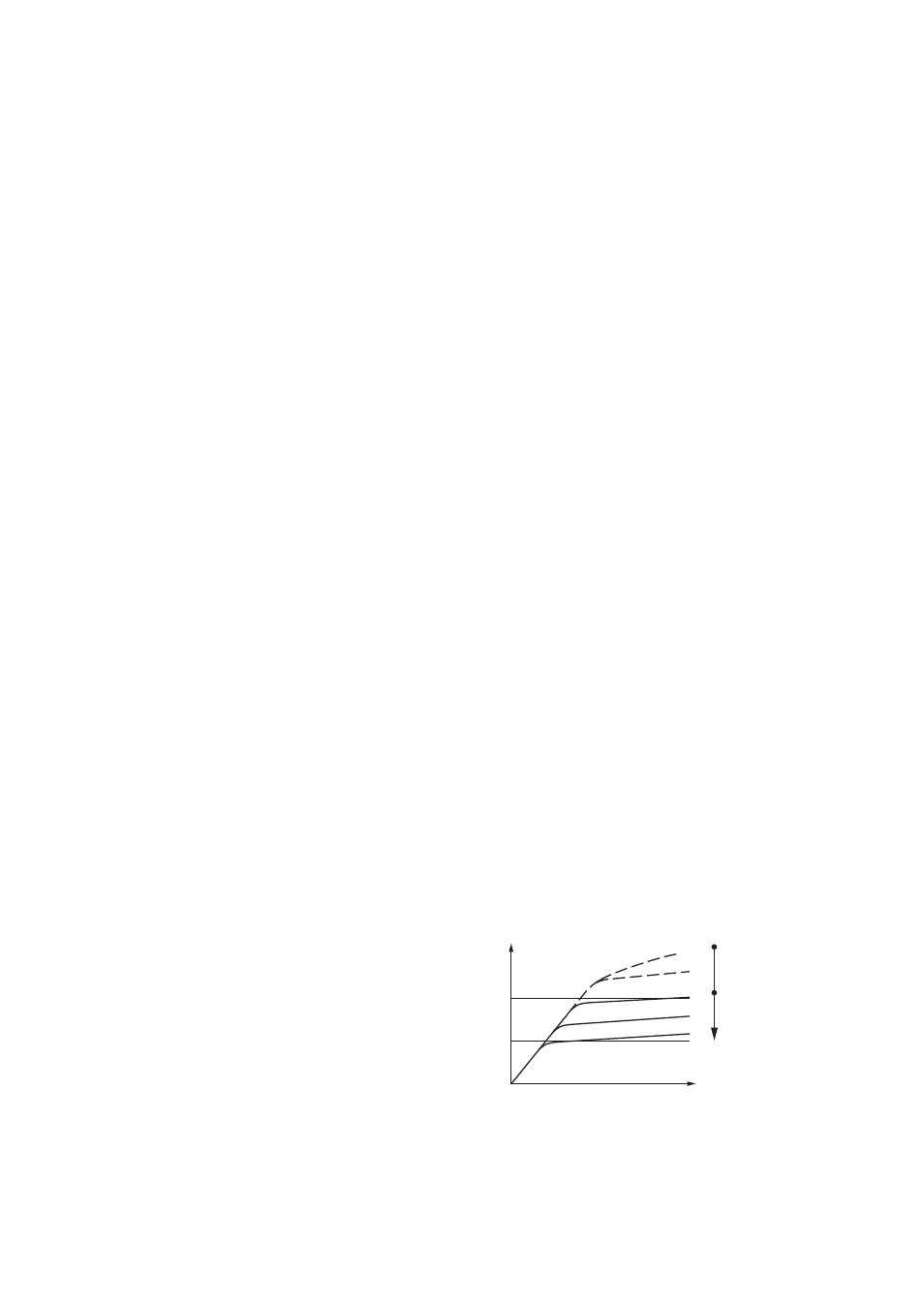

If the COMPRESSOR CONTROL switch is set to
OFF, it bypasses the compressor circuit. Turn it
clockwise to activate the compressor and to
adjust the limiting level. Since turning it fully
clockwise limits the output level to the maximum,
be sure to turn it to the appropriate position so
that the Peak indicator does not light.
Output
Input
Clip OFF
HALF
MAX
COMPRESSOR
CONTROL
Rated
1/2
