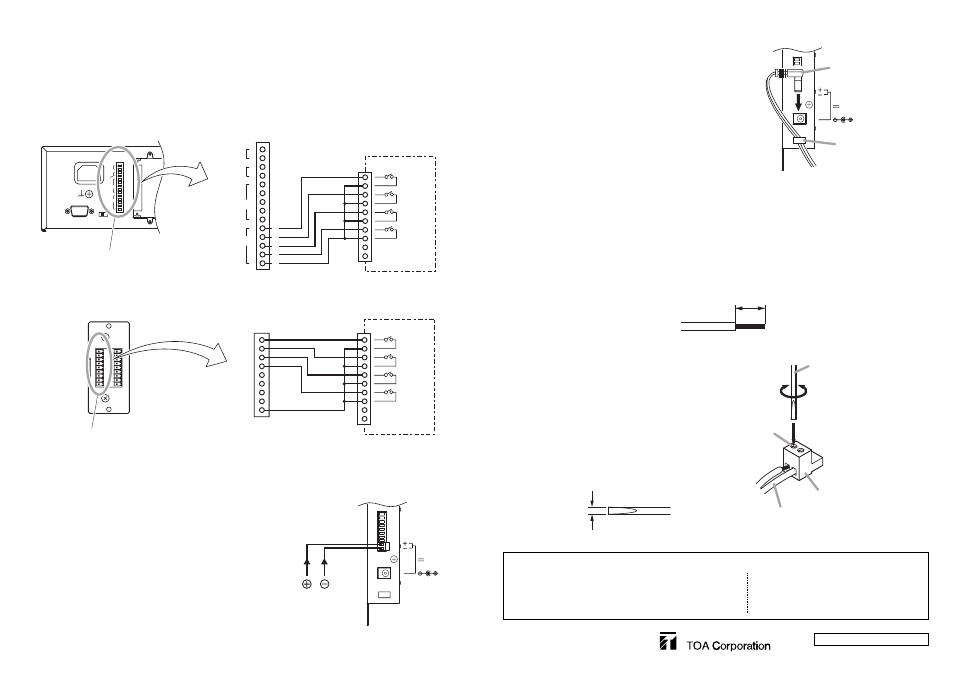

6. POWER SOURCE CONNECTIONS
6.1. When Using a 24 V DC Power Source
Connect a 24V DC power source to the SS-9001's DC
power input terminal shown at right.
Notes
• The DC power supply unit should be capable of
supplying 200 mA or more.
• The DC power fed to this terminal should be from
21.6 to 26.4 V.
If the input voltage exceeds this range, the SS-9001
may malfunction or fail.
5. CONNECTIONS
DC IN
24V
120mA
[Left side]
From 24 V DC
power source
6.2.When Using the Optional AC Adapter
Connect the optional AD-246 AC Adapter to
the SS-9001's DC power input terminal shown
at right.
Pinch the adapter cord with the cord clamp to
securely fix the cord.
DC IN
24V
120mA
AC adapter (optional)
Cord clamp
[Left side]
7. REMOVABLE TERMINAL PLUG CONNECTION
Be sure to use the supplied removable terminal plugs for connections to the removable terminal
blocks.
Caution
Avoid soldering stranded cable, as contact resistance may increase when the cable is tightened and
the solder is crushed, possibly resulting in an excessive rise in joint temperatures.
[Cable end treatment]
7 mm Solid or stranded cable
[Connector connection]
Step 1. Loosen the terminal screw, then
insert the cable.
Step 2. Loosen the terminal screw, then
insert the cable.
(Pull on the cable to ensure it is
securely connected.)
Tip
Recommended slotted screwdriver type:
Screwdriver with 3 mm blade width
Tightens Loosens
Terminal screw
Slotted screwdriver
Cable
1 2
1
Removable terminal plug
(accessory)
Bit shape 3 mm
133-05-400-4A
URL: http://www.toa.jp/
VOL2
REMT
VOL1
REMT
OUT
IN
I/O
CTRL
E
E
4
4
3
3
1
2
2
1 VOL2 REMT
VOL1 REMT
OUT
IN
I/O CTRL
E IN
E IN
SS-9001
9000 Series amplifier
ZONE 1
G
CTRL IN
ZONE 2
G
ZONE 3
G
ZONE 4
G
E
E
4
4
3
3
1
2
2
1
E
IN
E
IN
Control-I/O connection terminal
5.1. Connecting the 9000 Series Amplifier
5.2. Connecting the C-001T Module
The control input terminals of SS-9001 are polarized non-voltage contact inputs.
With the output terminal setting in the 9000 series amplifier, the SS-9001's internal relays can be
activated. Make necessary connections depending on applications.
OUT IN
1
2
3
4
5
6
7
8
E
C-001T
Control output terminal
SS-9001 C-001T module
ZONE 1
G
CTRL IN
OUT
ZONE 2
G
ZONE 3
G
ZONE 4
G
E
5
4
8
3
6
7
2
1
