Page 26

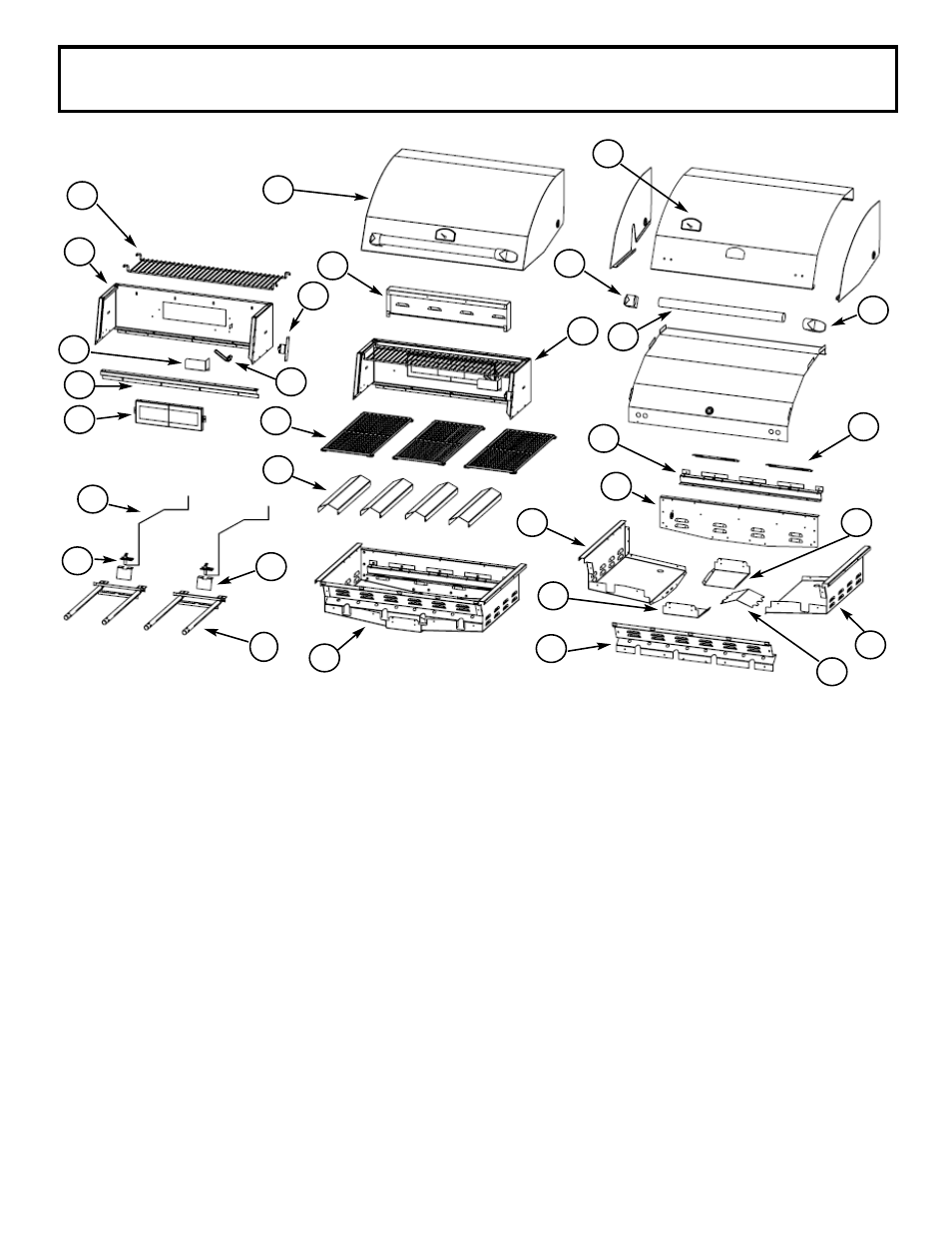

SS 4 Replacement Parts Sheet
26
NS*
Bag of 13 Self-Tapping Screws
NS*
Bag of 6 Wheel Channel Nuts
NS*
Set of 3 “ S” Hooks (See Fig. 24)
NS*
Match Extender
NS*
Condiment Basket (See Fig. 44)
NS*
Side Burner Igniter Wire
NS*
Back IR Igniter Wire
NS*
Hood Bolt Assembly
1.
Bread Warmer Grate
2.
Hood Support
3.
Back IR Igniter Cover
4.
Back IR Heat Deflector
5.
Back Infrared Burner (2 cell)
6.
Back IR Igniter
7.
Spit Holder
8a.
Main Igniter Wire - 36”
8b.
Main Igniter Wire - 42”
9.
Main Igniter
10.
2-Cell Burner
11.
Igniter Grease Shield
12.
TG30 Hood Assembly
13.
Back IR Cover
14.
Hood Support Assembly
15.
TG 30 Main Grate Assembly
16.
Flavor Grid
17.
TG30 Inner Liner Assembly
18.
Dome Temp Gauge
19.
Main Hood Handle End
20.
Main Hood Handle End
21.
1.5” x 22” Handle Tube
22.
2 Burner Z Bar
23.
Burner Support
24.
TG30 Inner Liner Back
25.
TG Inner Liner Bottom
26.
TG30 Inner Liner Left
27.
TG Inner Liner Bottom
28.
Front Heat Shield
29.
TG30 Inner Liner Right
30.
Drip Pan Heat Shield
* Not Shown
6
12
15
13
1
2
3
5
8
7
9
11
10
14
16
17
18
19
20
21
22
23
24
26
27
28
25
30
29
4
