Ug_sf8_10_en_cn_v2.pdf – Superlux SF8 User Manual

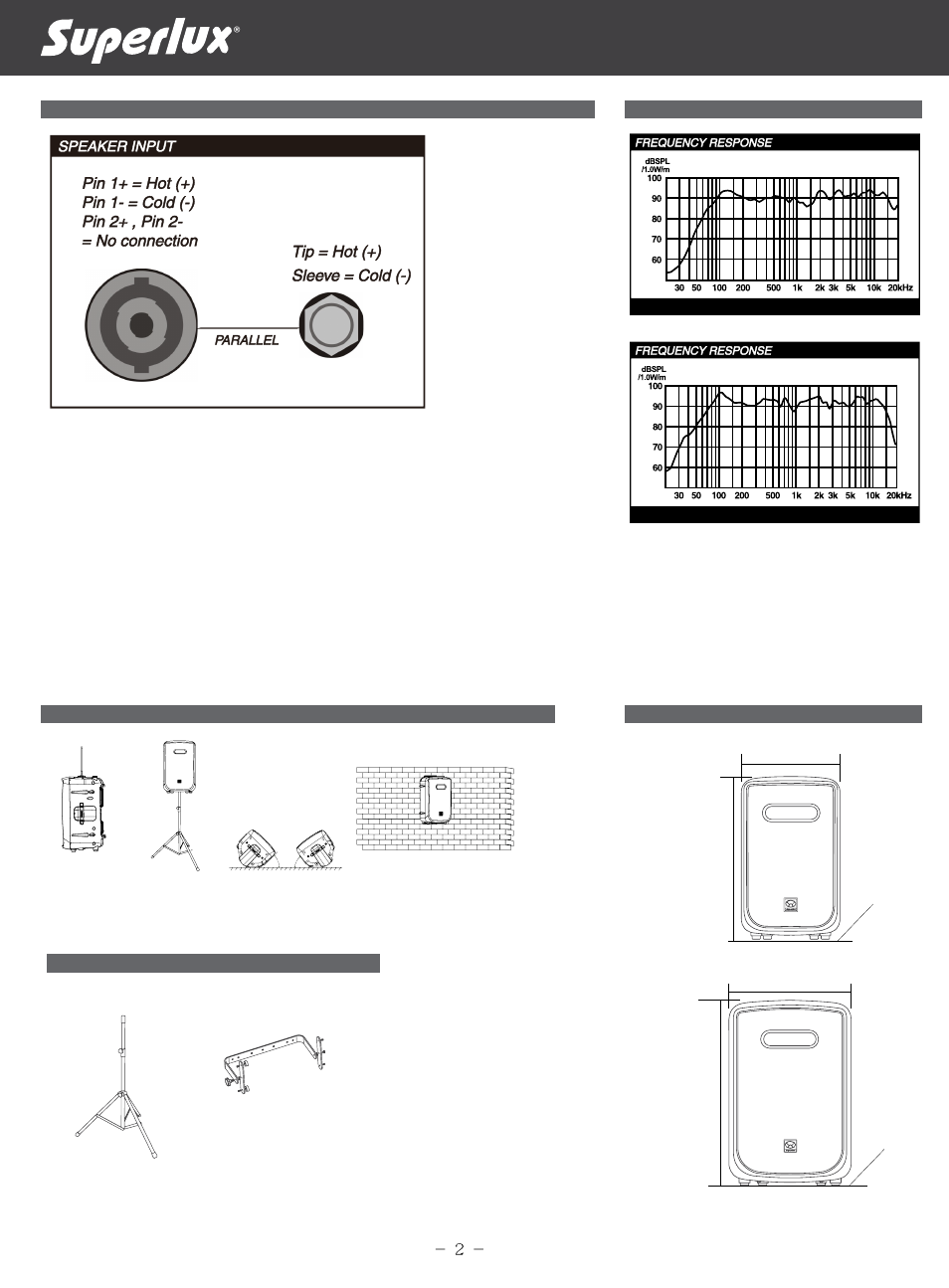

Page 2

Connectors of SF8 and SF10
Frequency Response
Dimensions
Installation & Placement of SF8 and SF10
Optional Accessories
SPS410B
AX108 for SF8
AX110 for SF10
Tripod Stand
model# SPS410B
U-Bracket Kit
model# AX108 and AX110
Suspension
On a stand
Floor monitor
On a wall
45°
55°
SF8
SF10
Professional speaker connector
This connector is compatible with the popular speakon-type 4-pole plug and it comes with a
locking feature to prevent accidental disconnections. Simply line up the tabs on the plug with
the jack on the SF8 or SF10, push it in, and rotate it 1/4 turn to the right to lock it in place.
Wiring:
Pin 1 - = Cold (-)
Pin 1+ = Hot (+)
Pin 2 - = No Connection
Pin 2 + = No Connection
1/4” jack
1/4” stands for Tip-Sleeve, the two connections available on a mono 1/4” phone jack or plug.
1/4” TS Wiring:
Sleeve = Cold (-)
Tip=Hot(+)
SF8 and SF10 have a
speakon style and a
1/4” TS inputs in parallel.
The SF8 or SF10 have a
nominal impedance of 8
ohms. Two of them in
parallel equals 4 ohms.
Three of them in parallel
equals 2.7 ohms and 4 of
them in parallel equals 2
ohms. Use heavy gauge,
stranded wire for connect-
ing a speaker to the output
of a power amplifer.
27.5 cm
10.8 in
45.5 cm
17.9 in
54.3 cm
21.4 in
33.5 cm
13.2 in
D32.4 cm
D12.8 in
D26.1 cm
D10.3 in
SF8
SF10
