ORTF Stereo Skill:
When recording with ORTF microphone, keep the microphone
•
at least 1 meter away from the ensemble.
Adjust the microphone position so that the room space could
•
be heard, while excellent direct sound is maintained.
Keep the most of the ensembles/orchestra within 90° coverage.
•
Keep the microphone high enough that each instruments/artists
•
has an un-block direct path to the microphone.
Set the PAN control to extreme Left and Right. Do not pan the
•
signal in between L and R.
Choose a high quality recorder, or mixer.
•
Adjust the nominal recording level at about -18dBfs for clas-
•
sical music without compressor/limiter, while keep the peak at
about -3dBfs to -6dBfs.
Always use a shock mount.
•
Features
Ture condenser, precision 1/2” capsules
•
Fix capsules for ORTF standard
•
Sturdy metal body
•
5 pin, balanced output
•
Standard phantom power operation
•
Shock mount included
•
XLR 5 pins female to 2 x XLR 3 pins male plug cable included
•
Excellent stereo image
•
Specifications
Type Stereo 1/2” true Condenser
Acoustic Pressure gradient
Polar Pattern Cardioid, ref to polar chart lower right
Frequency Response 40~20,000Hz
Low-cut -3 dB @ 30Hz
Sensitivity
(ref. 1Pa or 94dB SPL)
-36dBV
Output Impedance 200Ω
Minimum Load Impedance 1KΩ
Equivalent Noise Level
(A weighted)
18dB SPL
Max SPL (THD≤0.5%) 135dB SPL
Dynamic Range 117dB
Signal / Noise Ratio 76dB (IEC651 ref. to 94dB SPL)
97dB (20dB headroom)
Power Phantom 48 Vdc
Drain Current 2.25 mA/CH; 4.5 mA total
Pin Configuration Pin 2/3 CH1, pin 4/5 CH2, pin 1
ground. Pin 2/4 hot.
Finish Metal, black painted finish
Environmental conditions The S502 operates between -10°C to
+50°C (14°F to 122
°F ) with relative
humidity between 0 to 95%
Cables FM0.6AMM 0.6m Y-Splitter Cable,
5-pin female XLR plug convert to 2
3-pin XLR male plug.
Case A3 plastic carrying box
Dimensions Ref. to illustration below.
Net weight 245 grams (0.54 lbs), body only.

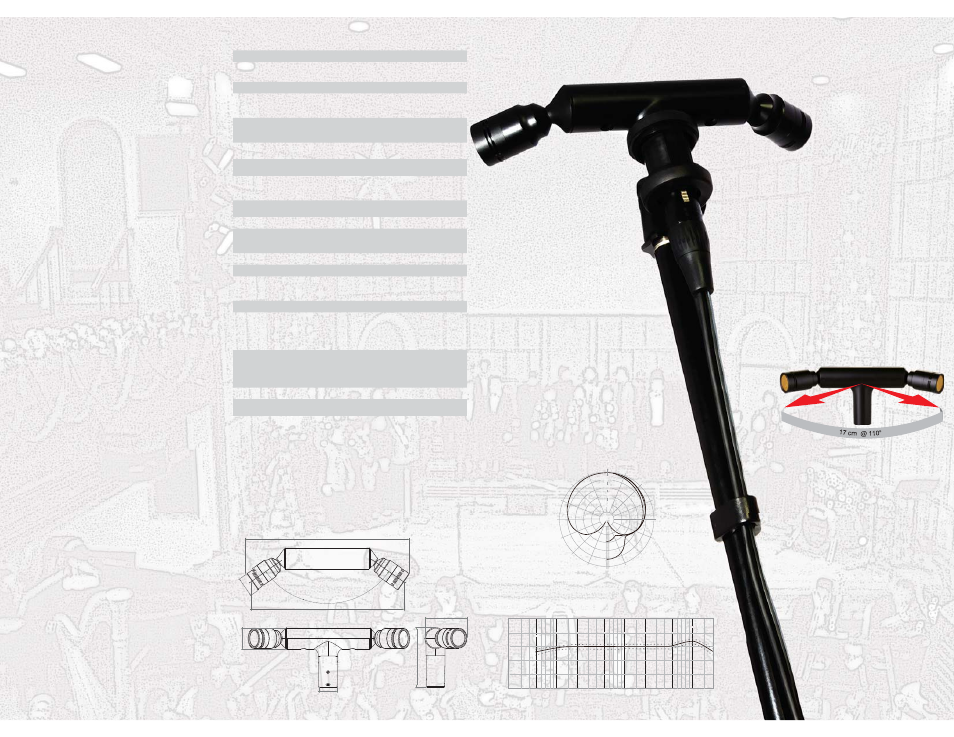

S502, ORTF Stereo
The S502 combined a pair of matched cardioid capsules in
the ORTF arrangement - the most popular stereo recording mi-
crophone technique for loudspeakers as well as headphoness
reproductions.
Based on the successful S241 and S125 true condenser tech-
nology, Superlux exercise the same precision ½” gold coated
diaphragm for the most precision sound pick-up. Simple and
straightforward design provides experienced engineers the most
convenient solution for stereo recording.
S502 includes followings:
A3 plastic carrying box
HM-30 shock mount clip
2 x S20 foam screen
FM0.6AMM 0.6m Y-Splitter Cable, 5-pin female XLR plug con-
vert to 2 3-pin XLR male plug.
Optional Accessories:
FM10AMM: 10 meters, stereo XLR5F/XLR5M cable
FM20AMM: 20 meters, stereo XLR5F/XLR5M cable
FM30AMM: 30 meters, stereo XLR5F/XLR5M cable
Frequency Response
Dimensions
What is “ORTF”?
ORTF is brief from “Office de Radiodiffusion
Télévision Française”. This standard was estab-
lished for stereo broadcasting that brings optimal
stereo performance to most audio systems. 2
cardioid capsules arranged with 110°
open angle and 17 cm space away.
The benefits of ORTF brings more spa-
cious sound than coincident XY tech-
nique, yet avoid “hole in the center” problem of
spaced AB technique which exhibits very good
spacious sound.
ORTF technique balanced excellent stereo po-
sitioning, and spacious sound that please most
of the audience than AB or XY/MS stereo tech-
nique. ORTF is a technique that can be easily
handled by beginners or video production crews
with a fix ORTF stereo microphone such as
S502. Experienced engineer can also takes this
advantage with S502, or use a pair of S241 with
stereo bracket for ORTF recording.
Maintainence
Condenser microphone shall be kept in low hu-
midity environment for best sound performance.
S tore the condenser microphones in air-condi-
t io ned room or dehumidifier to keep away form
moi sture. Clean air is another important factor.
Keep away from smoking environment to avoid
