The E421B is a shotgun microphone sys-

tem that comprises with:

E421, the shotgun microphone

PS4 The battery base box with shock mount for micro-
phone, and a cold shoe for mounting onto camcorder

FD0.3WW 0.3M cable (Attached to E421)

FD5WW 5M long cable

S32 wind screen foam

Standard system setup:

The microphone is powered by the battery box. Which provides
power as well as a low cut filter for lowering wind noise in windy
condition. When there is no power from the recording device, or the
device doesn’t provide low cut filter to lower wind noise, you can
always use the battery box of E421B system to power the micro-
phone and cut out the low frequency noise.

Plug-in power system setup:

The microphone is powered by the recording device. There is no
low cut filter at the microphone, but you may find this filter in the
recording device. Refer to the manual of your recording device.

In this way, you don’t have to prepare batteries for E421B, and can
focus on your recording device.

However, you still need the suspension on the battery box, or you
shall incorporate another shock mount such as Superlux HM40.

In the illustration over-left page, a boom pole was shown with E421
suspended with Superlux HM40 shock mount. The microphone is
connected directly to the recording device which is a DV camcorder
with plug-in power. A monitoring headphone was also shown.

Microphone Skill:

Get the microphone as close to your subject as possible.
A boom is specially helpful for video shooting.

Always use a shock mount to reduce handling noise.

Be careful of the wind: Outdoor, indoor air-con, fans...

Always use a headphone or proper monitoring tool while
recording. People don’t close their eyes while shooting
video, nor should they not to hear what sound is recorded.
Superlux provides extensive line of high performance
headphones, please check back at the web site: superlux.
tw

For lower cost boom pole, Superlux will supply an adapter
bolt to convert landing net pole (from fishing hobby store)
for mounting a microphone with standard 3/8” thread.

Superlux plan to supply easy boom pole in the near future,
please check back our web site.

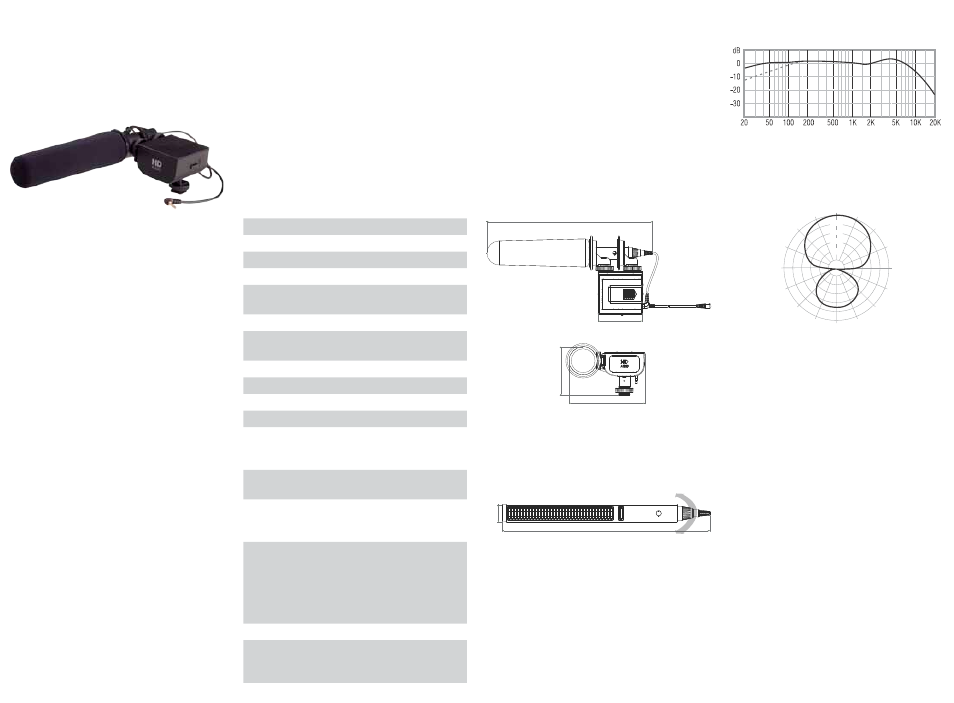

Specifications

Type

Electret condenser

Acoustic

Interference Tube

Polar Pattern

Super-cardioid

Frequency Response

20~20,000Hz

Sensitivity (ref. 1Pa or
94dB SPL)

-34 dBV/Pa

Output Impedance

200Ω

Minimum Load Imped-
ance

1KΩ

Equivalent Noise Level

20dB

Max SPL (THD≤0.5%)

134dB

Dynamic Range

114dB

Signal to Noise Ratio

74dB

Power

Battery
Current Drain

6 Vdc, 4x AA size batteries
6.7 mA

Pin Configuration

Tip and Ring: Signal
Sleeve: Ground

Environmental conditions From -10 °C to +50°C (14°F to

122°F ) with relative humidity
between 0 to 95%

Cables

Short cable
Long cable
Material, conductors,
and connectors

FD0.3WW 30cm (1 ft.)
FD5WW 5 m (16.4 ft.)
Vinyl-jacketed, shielded, 2-con-
ductor with 3.5mm(1/I8”) mini
stereo connector on both ends.

Dimensions

Ref. to illustration at right

Net weight

microphone
Battery box

30 grams (1.06 oz.)
140 grams (4.93 oz.)

On Axis /

Low Cut

dB

-20

-15

-10

-5

90º

180º

45º

135º

90º

45º

135º

250

500

1K
2K
4K

8K

16K

Features

Professional grade acoustic interference tube, shotgun
microphone

High sensitivity condenser capsule

Rugged ABS construction

Integrated and adjustable shock mount to reduce
handling noise

Integral camera cold shoe mount

2 parts design, allow microphone connect directly to
“plug-in power” recording devices

Supplied additional 5M cable for boom pole mount

4 x AA batteries for easier field replacement

Low cut filter

Red cap for attracting people speak into

OPEN

LOCK

To Change the Microphone Cable:

E421B system supplied with a 5M long cable for remote micro-
phone stand mount or boom pole mount. To change the microphone
cable, simply un-screw the red cap at the end of the microphone,
and detach the cable from the mic.

Replace the cable, and screw the red cap back in place. And you’re
ready to go further with your microphone.

Camcorder with 3.5mm Mic input

Except recent model with “Intelligent Shoe Mount” and at lower price,
most older model do incorporating a 3.5mm microphone input jack.

Sony
HDR-FX1000, HDR-FX1, HDR-FX7, HDR-UX7, HDR-HC1, HC3, HC5
HDR-XR500V, HDR-XR520V
DCR-TRV30, DCR-TRV330, DCR-TRV900, DCR-VX1000, DCR-VX2000,
DCR-VX2100,
HDR-SR1, SR7, SR8, SR10, SR11, SR12

Canon
EOS-5D MK2
Vixia HG10, HR10, HF S10, HF S100, HF20, HF100, HF200, HF10,
HF20, HG21, HV30, HV40, FS21, FS200, DC410, ZR960

JVC
GR-HD1, GZ-HD10US, GZ-HD30US, GZ-HD40US, GZ-HD5, GZ-HD6,
GZ-HD7

PANASONIC

HDC-HS100, HDC-SD100, HDC-TM300K, HDC-HS300K, VDR-D310

*All trademarks belong to the associated companies.

Frequency Response

Polar Chart

E421B shown with S32 wind screen

70

262.72

120.2

77.65
