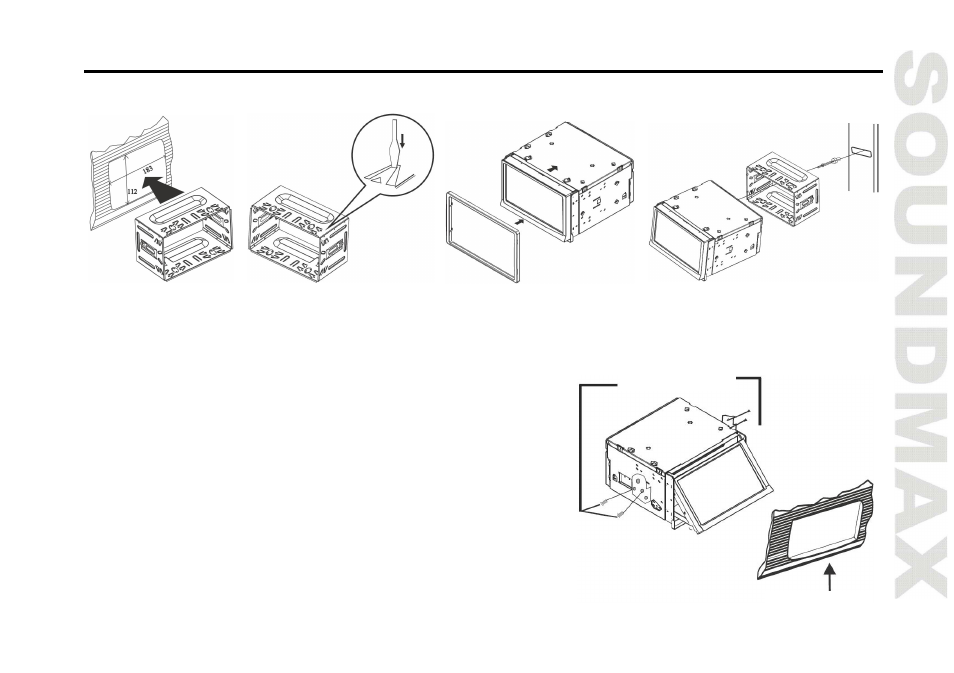

1. Insert the
mounting sleeve
into the dashboard.
2. Bend these claws
outward for a tight fit,
if necessary.
3. Push in the unit and
install the outer trim ring
on it.
4. To support the unit, fix the
rear of the unit using the rear
mounting bolt.
Installation method 2: Installation using the screw holes
at the sides of the unit.
Select a position where the screw holes of the mounting bracket
supplied with the car and the screw holes of the main unit
become aligned (are fitted), and tighten the screws (see at 2
places on each side). And then fasten them to the car.
Car brackets
Dashboard
