8
Using the ISO Connector

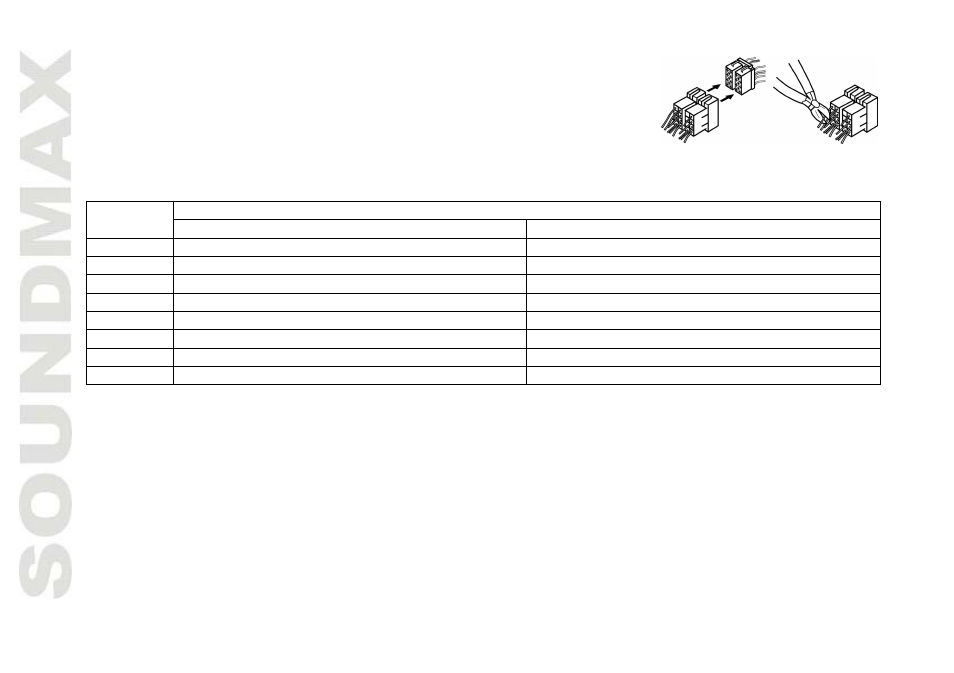

1. If your car is equipped with the ISO connector, then connect the ISO
connectors as illustrated.
2. For connections without the ISO connectors, check the wiring in the
vehicle carefully before connecting, incorrect connection may cause serious
damage to this unit.
Cut the connector, connect the colored leads of the power cord to the car battery as shown in the color code
table below for speaker and power cable connections.
Function Location
Connector A Connector B
1 - Rear right (+) - Purple
2 - Rear right (-) - Purple/Black
3 - Front right (+) - Grey
4 Battery +12V/Yellow Front right (-) - Grey/Black
5 Antenna/Amplifier control - Blue Front left (+) - White
6 - Front left (-) - White/Black
7 Ignition/Red Rear left (+) - Green
8 Ground/Black Rear left (-) - Green/Black
Note: Power antenna wire is intended for power supply of the antenna and for remote control of an
additional amplifier.
