KEYBOARD LAYOUT: DETAILS
Knobs,Buttons & Sliders

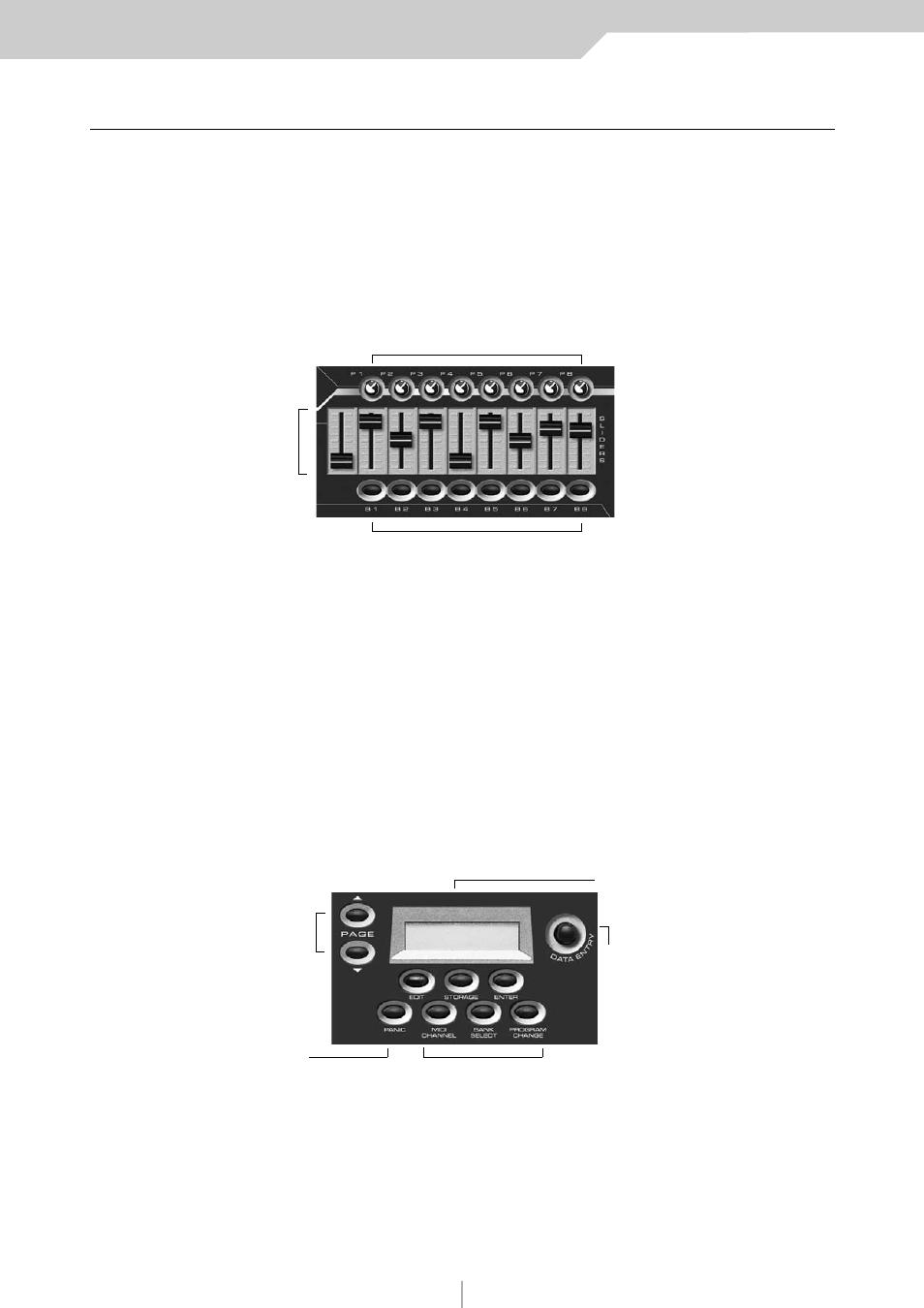

Knobs,buttons, and sliders may be programmed to control anything from a loop on a sampler to reverb depth on
a sound module. 8 knobs, 8 buttons, and 9 sliders are available.
Program Controls
The program control section features: A 2 x 16 Lcd display; A convenient rotary knob for data entry, referred to as
the DE knob; Page up and page down buttons for moving through the various parameter options of the control-
ler you are programming; Edit, Storage and Enter buttons, key elements when programming your keyboard; And
a Panic button if all else fails.
5
buttons 1-8
sliders 1-9
knobs 1-9
Program Buttons
Panic
NOTE: Panic will
transmit a global All
notes off Message.
LCD Display
Page UP
Page Dn.
Data Entry Knob
(DE Knob)
