Instruction Manual
3

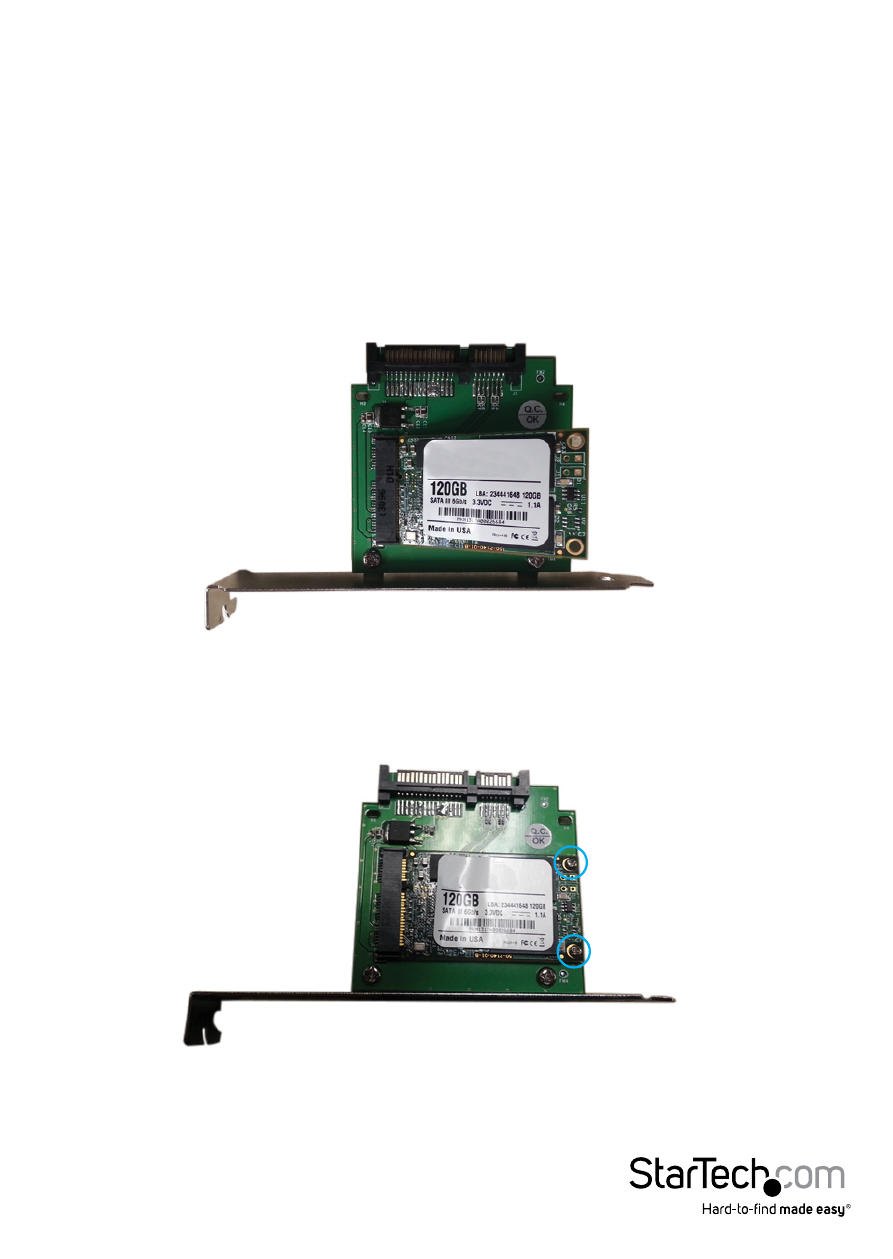

2. Using a small Phillips® head screw driver (not included). Insert and screw each of the
included SSD Installation screws through the mounting holes on the MSATA drive
into the SSD mounting holes on the SAT32MSATPEX.
MSATA Drive Installation
WARNING! SSD Drives and storage adapters require careful handling. If you are
not careful with your SSD Drive, lost data may result. Always handle your drive with
caution. Be sure that you are properly grounded by wearing an anti-static strap when
handling computer components or discharge yourself of any static electricity build-up
by touching a large grounded metal surface (such as the computer case) for several
seconds.
1. Slide the MSATA connectors on your MSATA drive into the MSATA Drive Connector
on the SAT32MSATPEX.
3. The MSATA drive is now installed.
