Instruction Manual
7
5. Replace the cover on your computer system, and installation is now completed.
System Installation

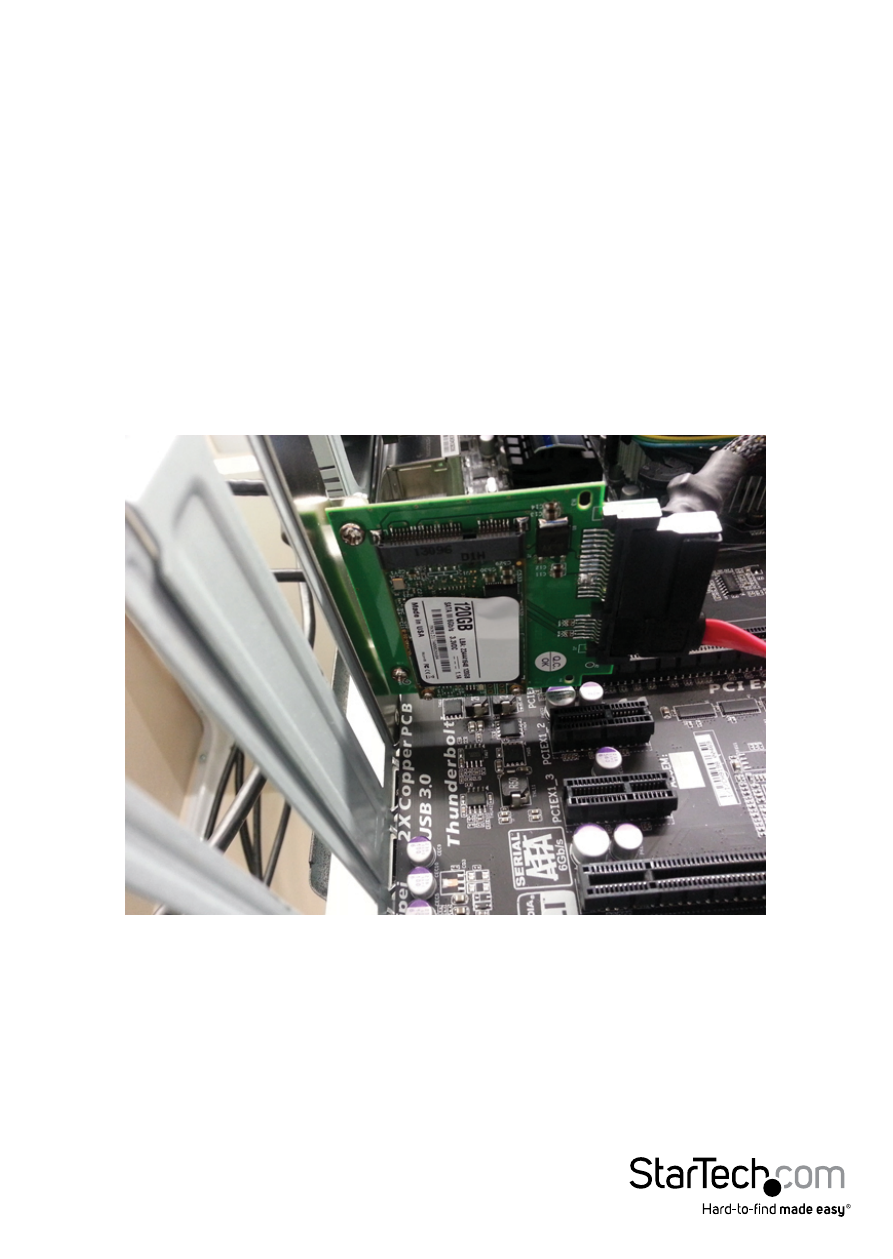

1. Open your computer case (refer to the computer case user manual for details), and
place the SAT32MSATPEX with installed MSATA drive into an available expansion
slot.
2. Using a computer case screw (not included) and the appropriate corresponding
screw driver (not included). Drive the screw into the computer case through the
case mounting hole on the mounting bracket (refer to the computer case user
manual for details).
3. Connect a SATA cable from your motherboard to the SATA Data port on the
SAT32MSATPEX.
4. Connect a SATA Power cable from your power supply to the SATA Power Port on the
SAT32MSATPEX.
