StarTech.com SAT2M2NGFF25 User Manual
Page 12
Instruction Manual
9

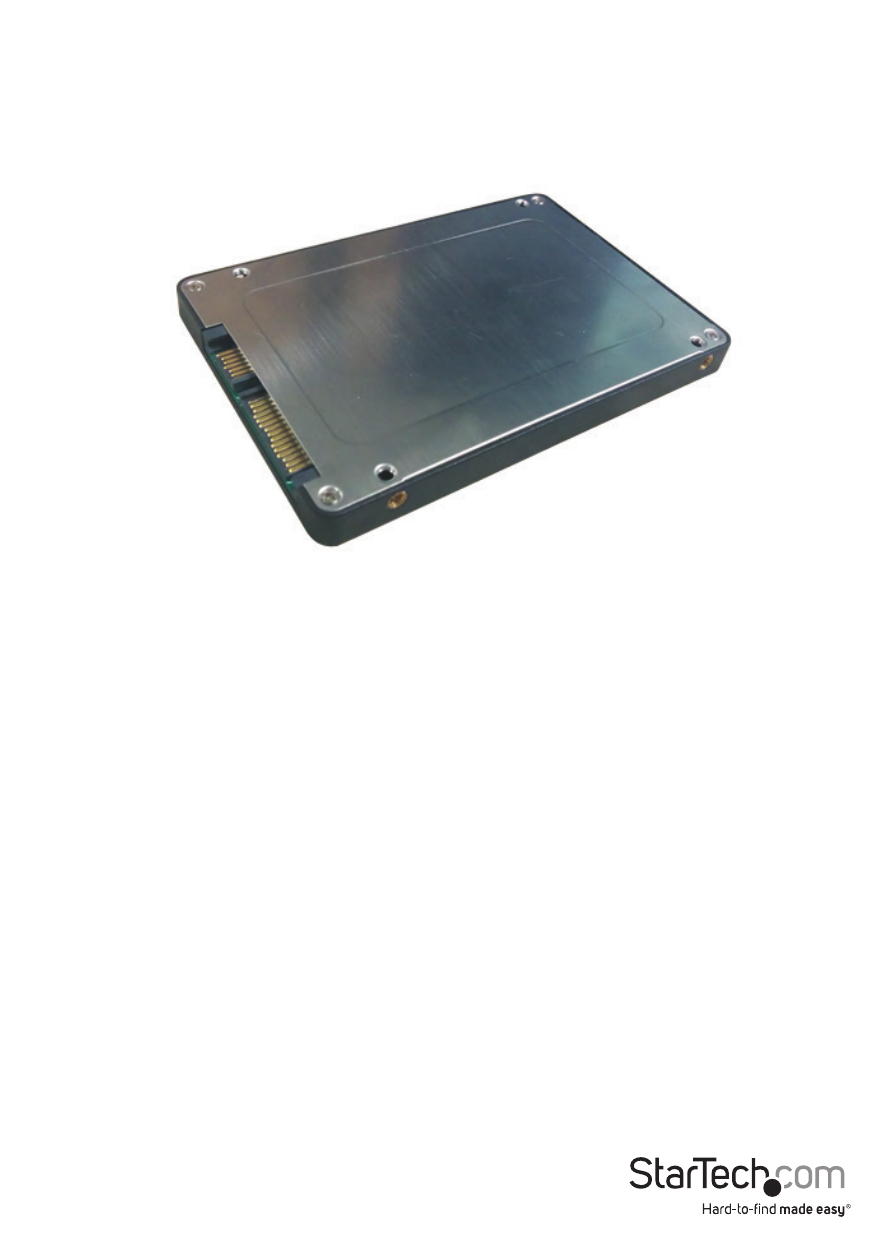

7. Replace the HDD plate on the bottom of the adapter case, and drive four of the
included case screws into the HDD plate mounting holes on the HDD plate, into the
HDD plate mounting holes on the adapter.
8. The SSD has now been installed, and is ready to be implemented in your 2.5” SATA
drive application.
Refer to the manual for your SATA host device for installation instructions. The side
mounting holes and included screw kit may or may not be required to assist in your
installation.
