Hardware installation, Bracket installation – StarTech.com ST521PMINT User Manual
Page 6
Instruction Manual
3
Hardware Installation
Bracket Installation

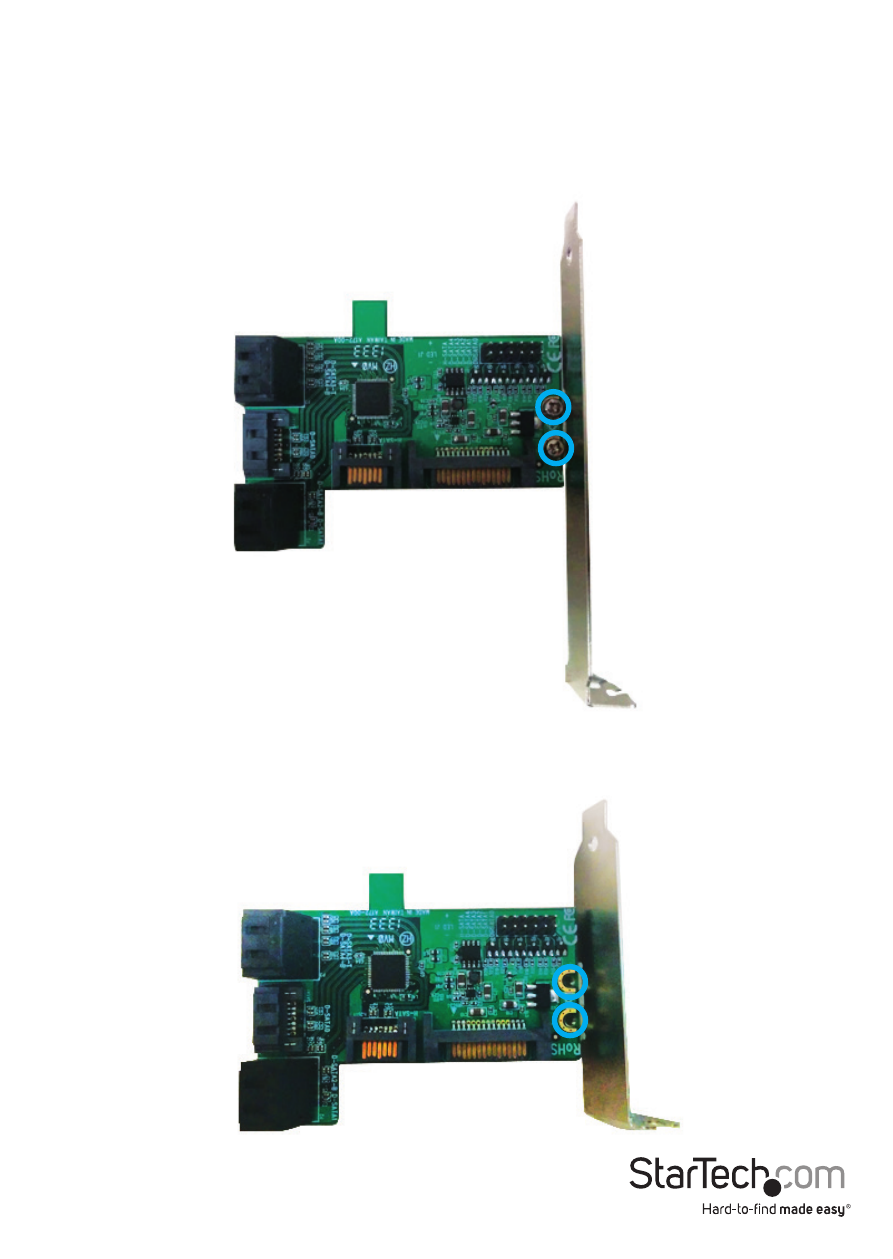

1. Remove the undesired bracket by unscrewing the bracket screws from the top of the
ST521PMINT board using a small Phillips head screw driver (not included).
2. Replace the undesired bracket with your desired bracket lining up the mounting
holes on the bracket with the bracket holes on the on the bottom of the ST521PMINT.
