Instruction Manual
3

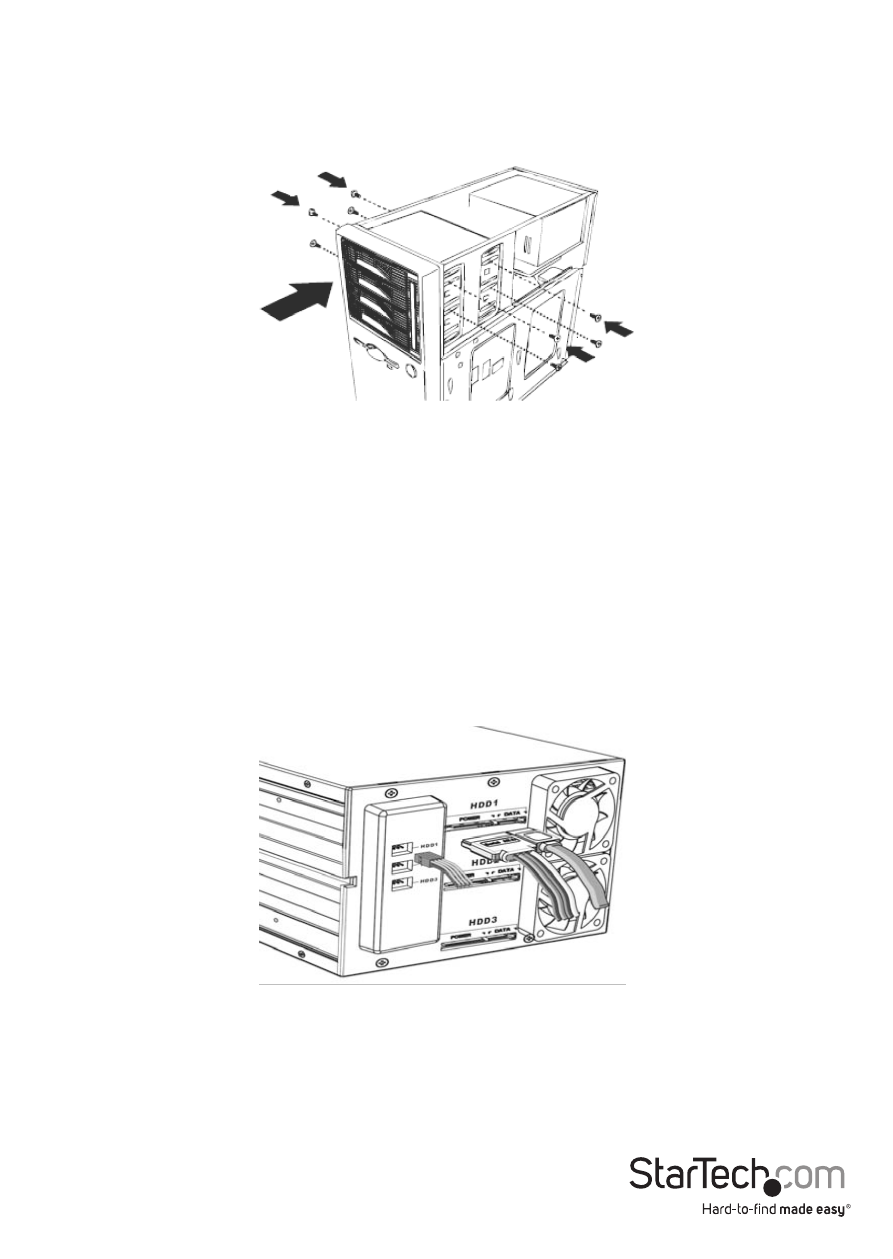

3. Using the mounting screws provided, secure the Multi-Drive Enclosure to the drive
bays:
Connecting the Multi-Drive Enclosure to the motherboard/power
1. Attach one end of a SATA data cable (provided) to a SATA port on the motherboard.
2. Connect the remaining SATA connectors provided by the cable to the topmost data
port located on the rear panel of the Multi-Drive Enclosure.
3. Connect the LP4/TX-4/SATA Power Y-cable to an available LP4 power connector as
provided by the computer power supply.
4. Connect the SATA Power connector provided by the Y-cable to the topmost SATA
power port. Similarly, connect the TX4 connector to the corresponding port, as
shown below.
5. Repeat steps 1-4 for each remaining drive bay/hard drive being installed.
