StarTech.com ARMPIVOT User Manual
Page 6
Instruction Manual
3

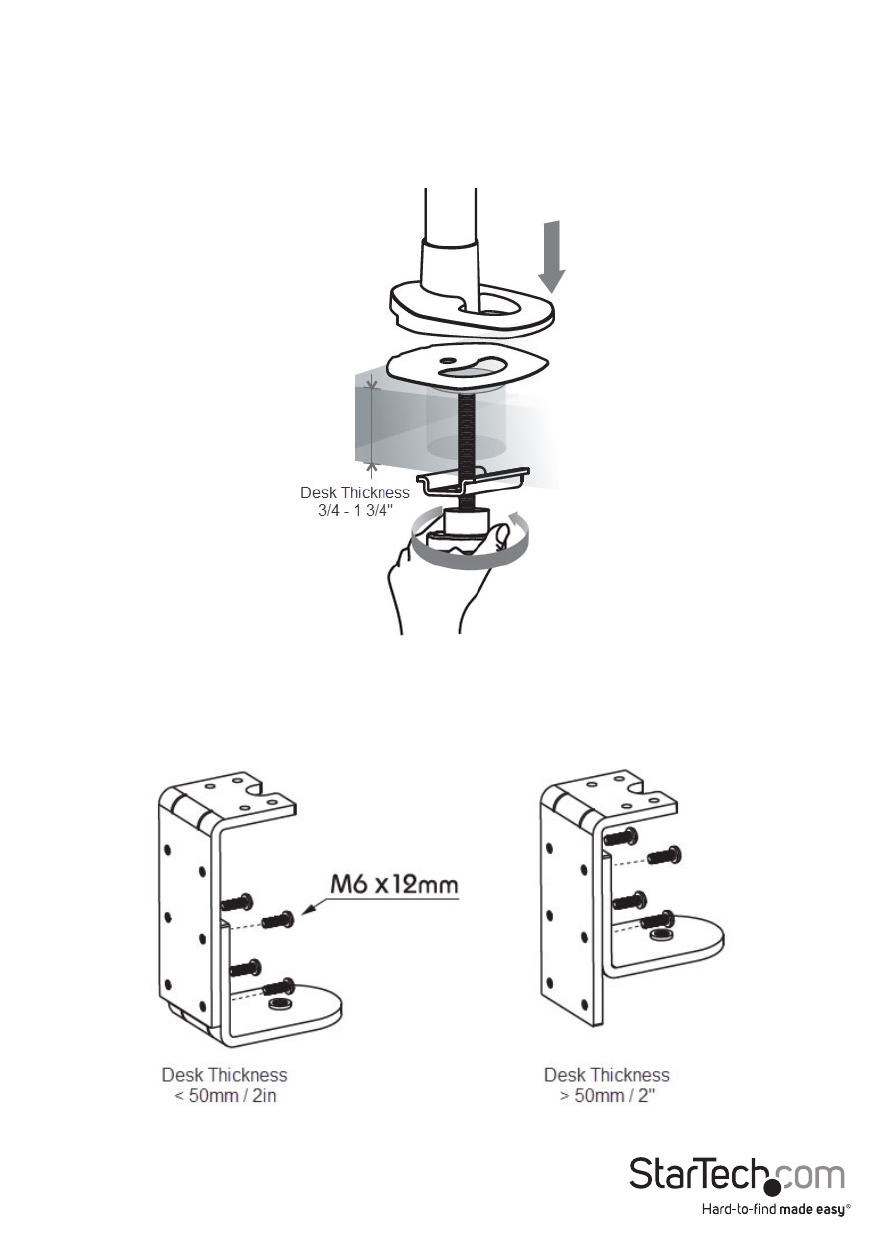

Grommet Mount
Desk Mount
1. Remove the Hand Screw (13) from the base of the Support Post (1).
2. Place the EVA Cushion (4) beneath the Support Post (1) and thread the Hand Screw
(13) from below until secure. Ensure that the Pressure Plate (14) is making full
contact with the desk surface.
1. Attach the Large C Clamp (3) and Small C Clamp (6) pieces using 4 M6x12mm
Screws (8) as shown, depending on the thickness of your desk / table.
