Page 5
Instruction Manual
2
Installation

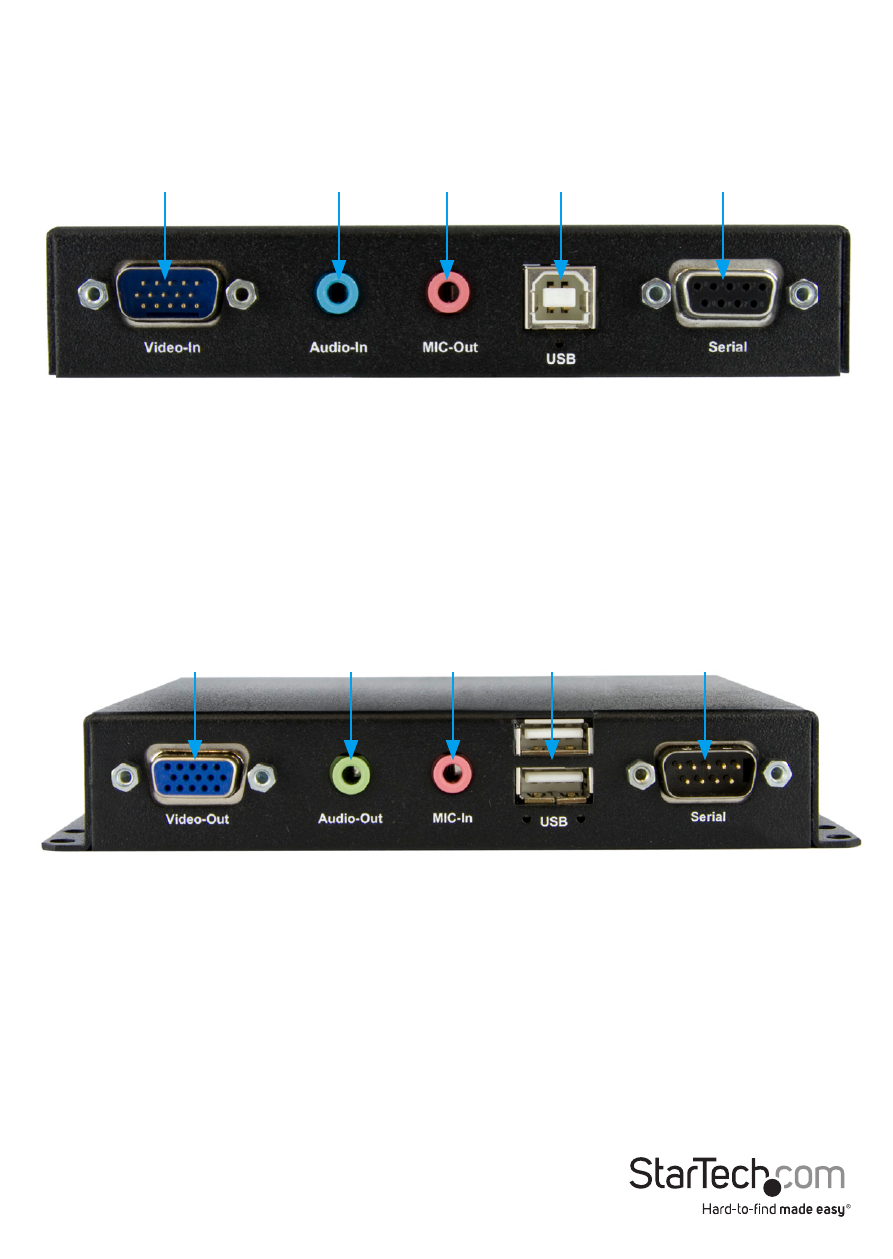

Front View
Transmitter Unit
1. DE-15 VGA In (male)
2. 3.5mm mini-jack audio In
3. 3.5mm mini-jack microphone Out
4. USB type B host connector
5. DB9 RS-232 serial (female)
Receiver Unit
1. DE-15 VGA Out (female)
2. 3.5mm mini-jack audio Out
3. 3.5mm mini-jack microphone In
4. USB type A peripheral connectors
5. DB9 RS-232 serial (male)
1
1
2
2
3
3
4
4
5
5
