Keyboard Status and LCD Panel Power Switch:
1. Num Lock - Keyboard Num Lock status
2. Caps Lock - Keyboard Caps Lock status
3. Scroll Lock - Keyboard Scroll Lock status
4. LCD Panel Power Switch

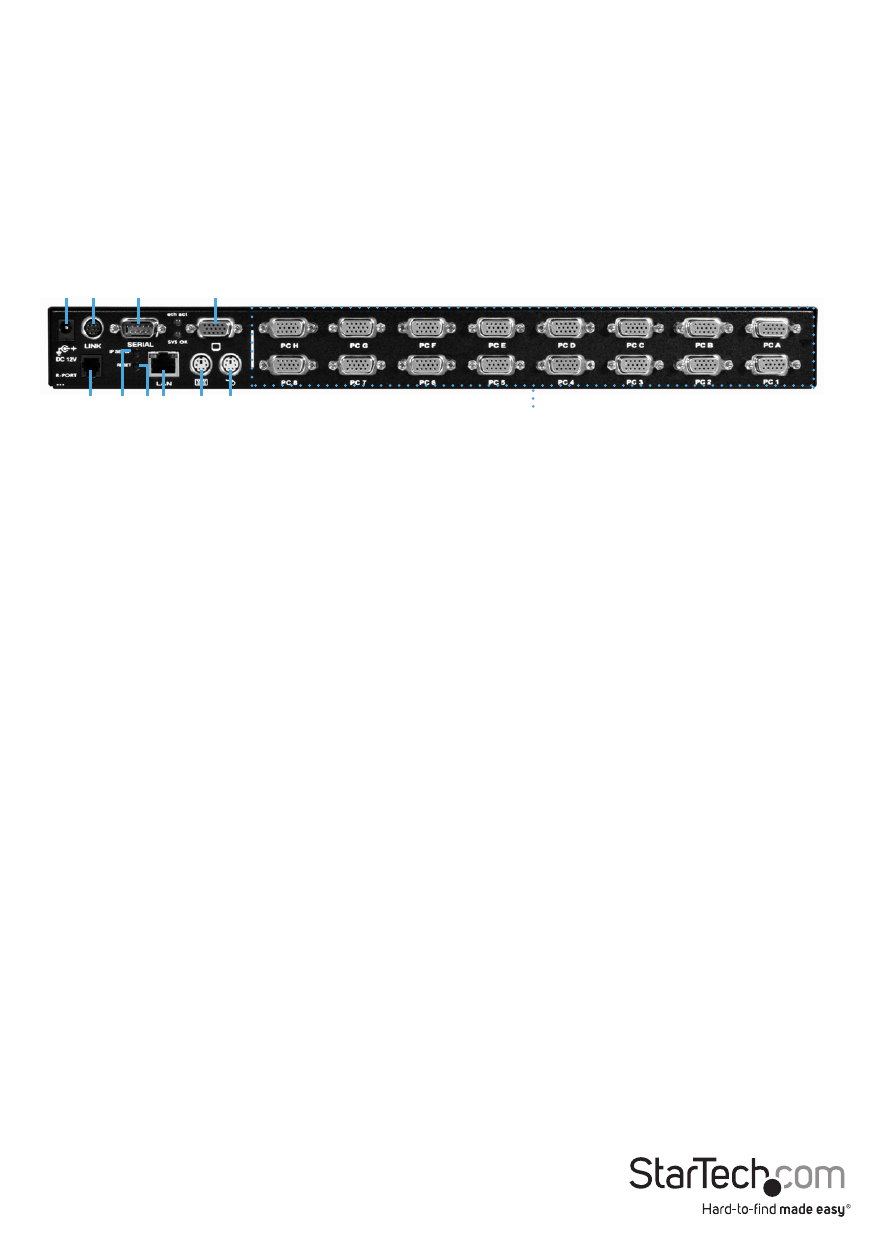

Rear Panel Functions
1 2
3
4
5
6 7 8
9 10
11
1. DC In
2. Link
3. Serial Port
4. VGA Out
5. R-Port
6. IP Setup button - Pressing this button (using a paperclip, etc.) will automatically load
the On-Screen Display.
7. Reset button a) Power reset - reboots power to the CABCONS1716I unit
b) Configuration reset - During configuration, resets values to default
8. LAN
9. PS/2 Keyboard
10.PS/2 Mouse
11.Remote connections (x 16)
