StarTech.com VS421DP - Manual

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 02/10/2012
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1 x VS421DP video switch
• 1 x IR Remote Control
• 1 x Power Adapter
• 1 x Installation Guide
System Requirements
• DisplayPort enabled display device (i.e. monitor/projector/etc.)
• DisplayPort enabled video sources (i.e. computer systems)
• Available power outlet
VS421DP

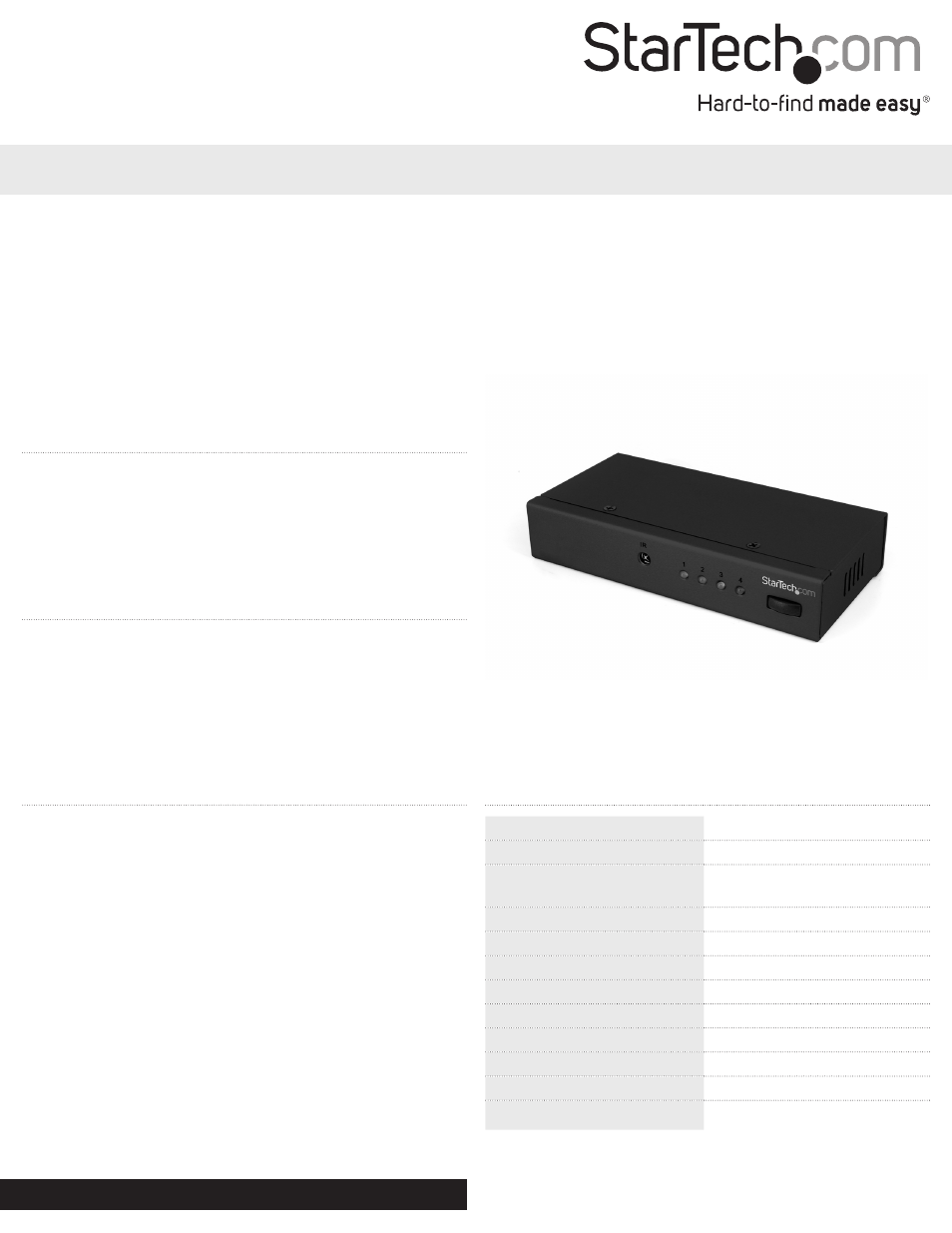

4 Port DisplayPort Video Switch w/ Audio & IR Remote Control
*actual product may vary from photos
Installation
1. Make sure all devices are turned off before beginning the
installation.
2. Connect a DisplayPort cable from the “Out” connector on the
switch to the DisplayPort enabled display device.
Connect a DisplayPort cable from up to four different DisplayPort
video sources to each of the inputs (1 ~ 4) on the switch.
3. Connect the power adapter from an electrical outlet to the switch.
The port 1 Selection LED should light up to indicate the currently
active input.
4. Power on the display device, followed by the video source on port
1.
5. Once video output is confirmed, switch to the next port by
pressing the switching button and power up the next video
source. Repeat this process for each video source.
6. To switch between the inputs on the switch, the front panel
button or the IR remote control can be used.
Specifications
Bus Interface DisplayPort revision 1.1
Number of Ports 4
Connectors
5 x DisplayPort
1 x DC Power
LEDs 4 x Selection Indicator
Maximum Video Resolution 2560x1600@60Hz
Maximum Cable Length 10m / 33ft
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 140°F)
Humidity 0 ~ 80% RH
Power Adapter 5VDC, 2A, center positive
Dimensions 131.0mm x 65.0mm x 26.0mm
Weight 500g
