ST222MXA
ST224MX
ST224MXGB
2x or 4 x VGA Matrix Video Switch Splitter with Audio
*actual product may vary from photos
Packaging Contents
• 1 x ST222MXA video splitter
• 1 x Power Adapter
• 1 x Installation Guide
System Requirements
• VGA enabled display devices (e.g. monitor, projector, TV, etc)
• VGA enabled video source (e.g. computer, game console, etc)
• Available AC power outlet
Installation
1. Make sure all devices are powered off before trying to install.
2. Use male/male DE-15 VGA cables and male/male 3.5mm mini-jack
audio cables to connect the video source device(s) to the “IN” side
on the rear of the video splitter. Make sure the audio and video
from the same device are connected to the same A or B ports on
the splitter.
3. Connect the display devices to the “OUT” VGA connectors on the
rear of the video splitter with male/male DE-15 VGA cables.
4. Connect speakers or headphones to the 3.5mm mini-jack audio
“OUT” connectors.
5. Connect the power adapter to the video splitter and make sure
the Power LED on the front lights up.
6. Power on the video display devices first, followed by the video sources.

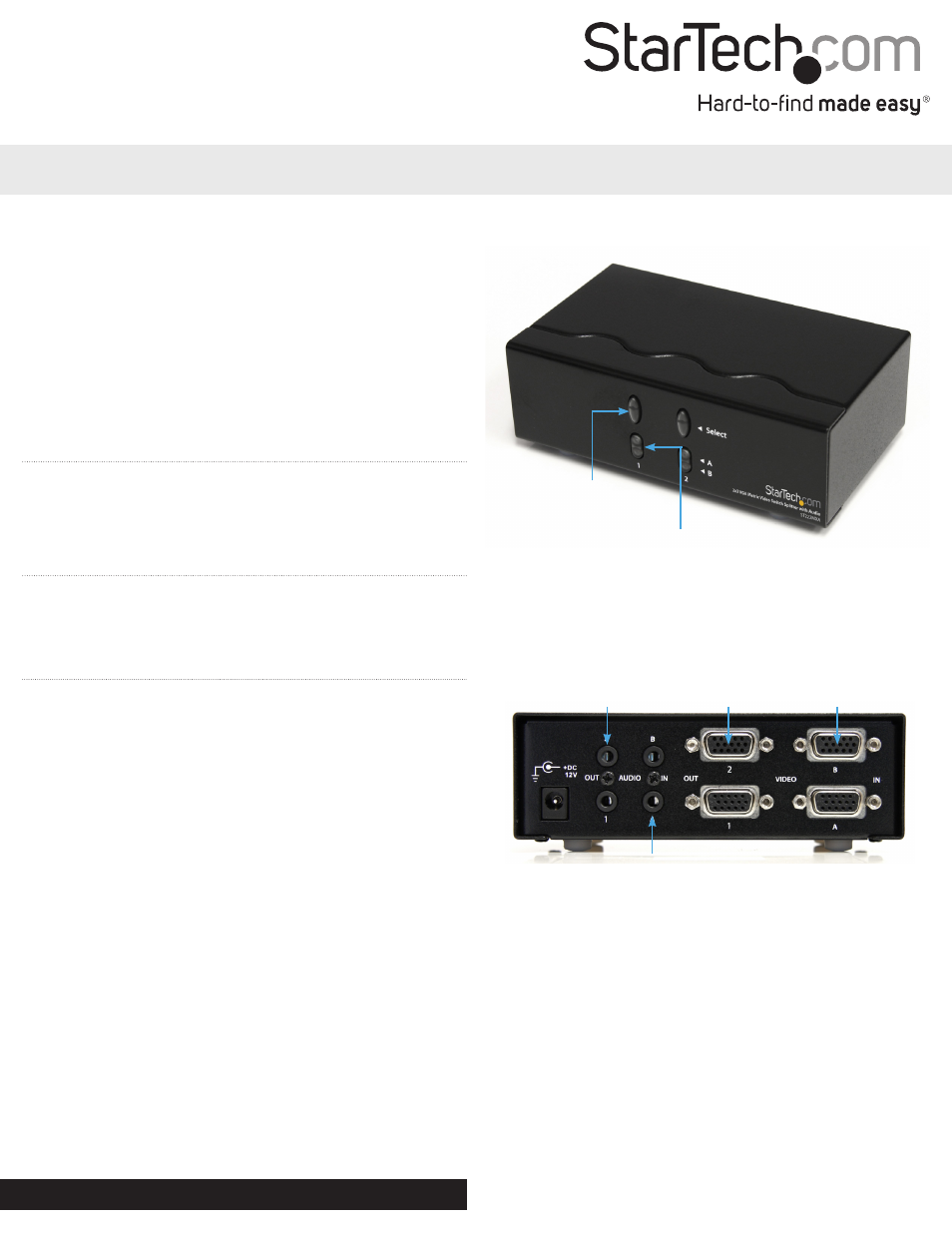

Front View
Front View
Input Selection
Button
3.5mm Audio
Mini-Jack
(Output)
3.5mm Audio
Mini-Jack
(Input)
VGA
Connectors
(Output)
VGA
Connectors
(Input)
Input Selection
LED
*actual product may vary from photos
