Operating controls & functions, Instruction manual – StarTech.com DVI2HDMI User Manual
Page 5
Instruction Manual
2

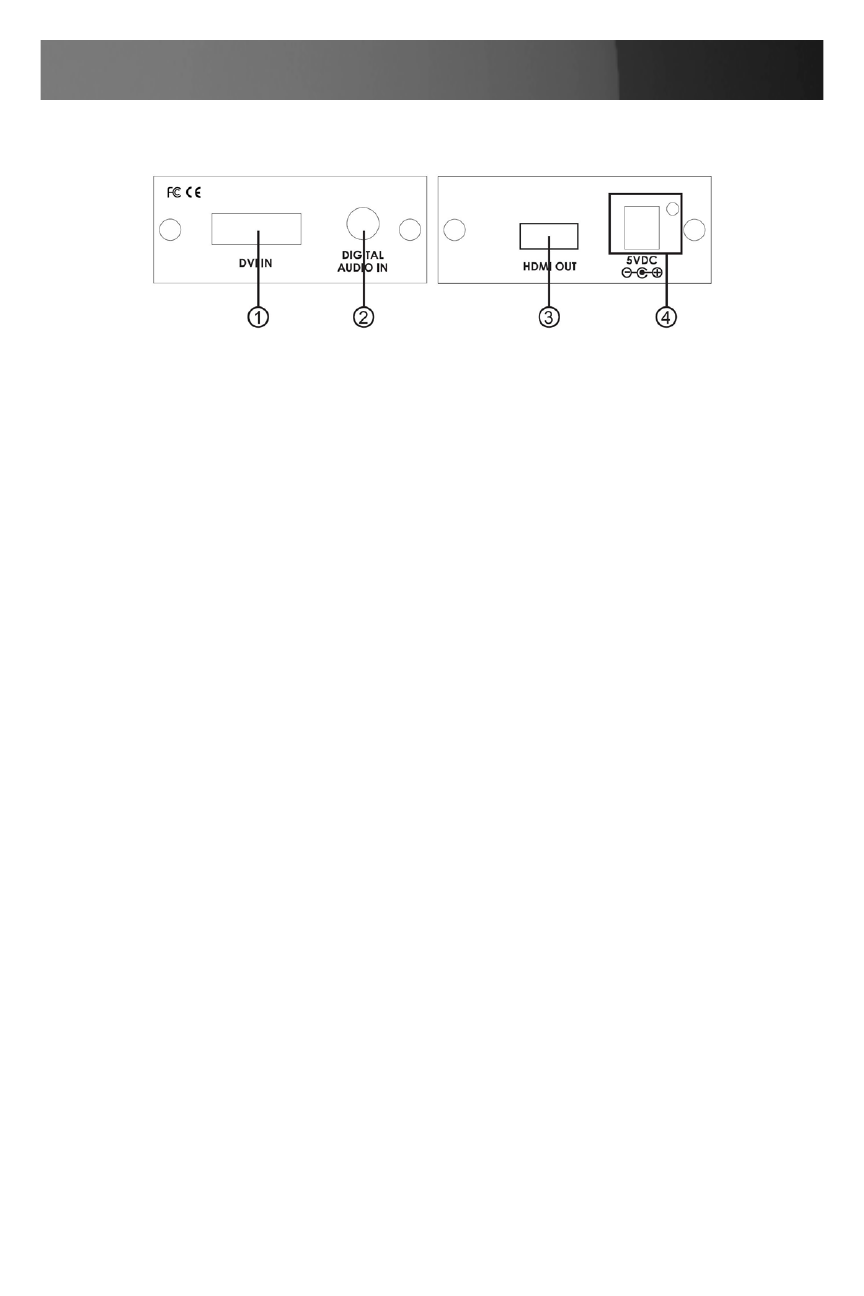

Operating Controls & Functions
DVI Input:
1.
Connects to the DVI output connector of your source
equipment.
Digital Audio (SPDIF) input:
2.
Connects to the digital audio output of
your source equipment.
HDMI Output:
3.
Connects to the HDMI input connector of your HDMI
Display or Switcher.
Power Input:
4.
Plug the supplied 5V DC Power Supply into the unit, the
LED will illuminate when the power is connected.
