StarTech.com COMP2VGA - Manual

Instruction Manual
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Manual Revision: 04/20/2012
For the most up-to-date information, please visit: www.startech.com
Packaging Contents
• 1 x COMP2VGA adapter
• 1 x 15-pin HD extension cable
• 1 x stereo audio cable
• 1 x 9V DC power supply
System Requirements
• PC monitor with 15-pin high-density (HD) port with a horizontal
signal (HS) of 31.5KHz or higher and a vertical signal (VS) of 60KHz
or higher for NTSC systems or 50KHz or higher for PAL systems
• Video and audio source (i.e., DVD, VCR, game machine, camcorder)
• Pair of speakers
COMP2VGA
Composite and S-Video to VGA Video Converter
*actual product may vary from photos
Installation
This section will guide you through the installation of your device.
Please read through this section carefully and complete each step
in the order listed. Also consult the documentation that came with
your PC and video source (i.e., game console, DVD player, etc.) for
specific details.
1. Make sure that your adapter, PC, monitor, and video device are
turned off.
2. Connect the 15-pin HD cable from your computer’s monitor port
to the VGA In port on the back of the adapter.
3. Plug your monitor into the Monitor port on the back of the
adapter.
4. Connect the provided audio cable from your computer’s sound
card to the Line In port on the back of the adapter.
5. Connect your speakers to the SPK Out port on the back of the adapter.

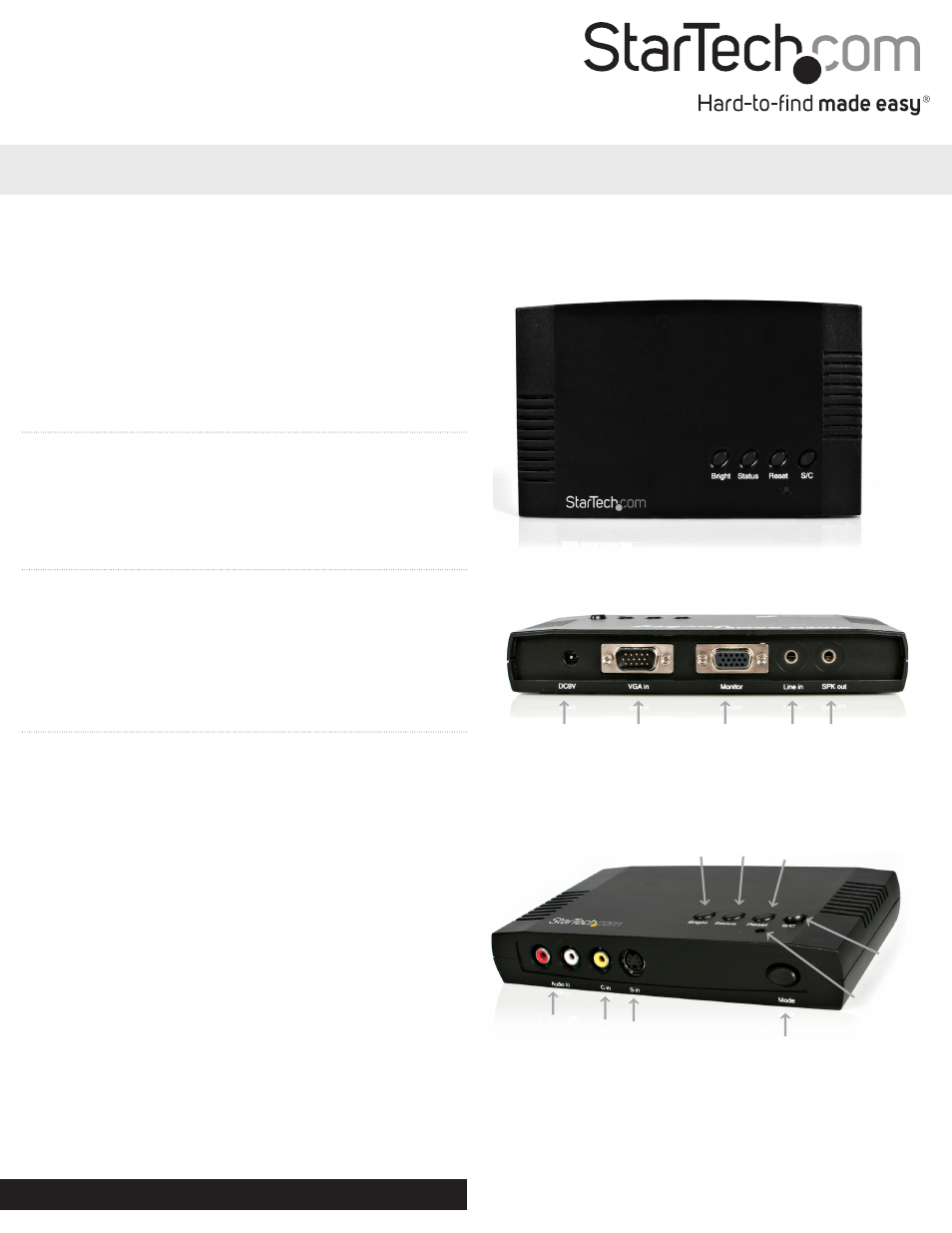

DC9V
Connects power
supply to external
power source
VGA In
Connects 15-pin
HD cable to PC’s
monitor port
Monitor
Connects to your
PC monitor
Line In
Connects audio
cable to PC’s
sound card
SPK Out
Connects to
external speakers
Audio In
Connects to audio
cables from
video source
C
-
in/S-in
Connects to Composite
or S-Video cables on
video source
Bright
Adjusts screen
brightness
Status
Adjusts screen
position
Mode
IN: Video mode
OUT: PC mode
LED (Green)
Lit when adapter
is powered
S/C
IN: Composite
OUT: S-Video
Reset
Resets the adapter
