Instruction Manual
3
Preparing Your Site
Prior to installation, please ensure that the site is prepared to accommodate the
location of the Transmitter and Receiver units.
1. Determine where the local computer will be located and set up the computer.
2. Determine where the remote display(s) will be located and place/mount them
appropriately.
3. If you are using surface cabling, ensure you have enough Category 5
unshielded twisted pair (UTP) Ethernet cabling to connect the Transmitter
Unit to the Receiver unit’s location, and that each end is terminated with a
RJ-45 connector.
OR
If you are using premises cabling, ensure that the Category 5 unshielded
twisted pair (UTP) Ethernet Cabling between the Transmitter Unit and the
Receiver unit has been properly terminated in a wall outlet in each location
and there is a patch cable long enough to connect the Receiver unit and the
Transmitter Unit to their respective outlets.
4. Ensure that both the remote and Transmitter units are close enough to an
available power outlet, to safely connect.

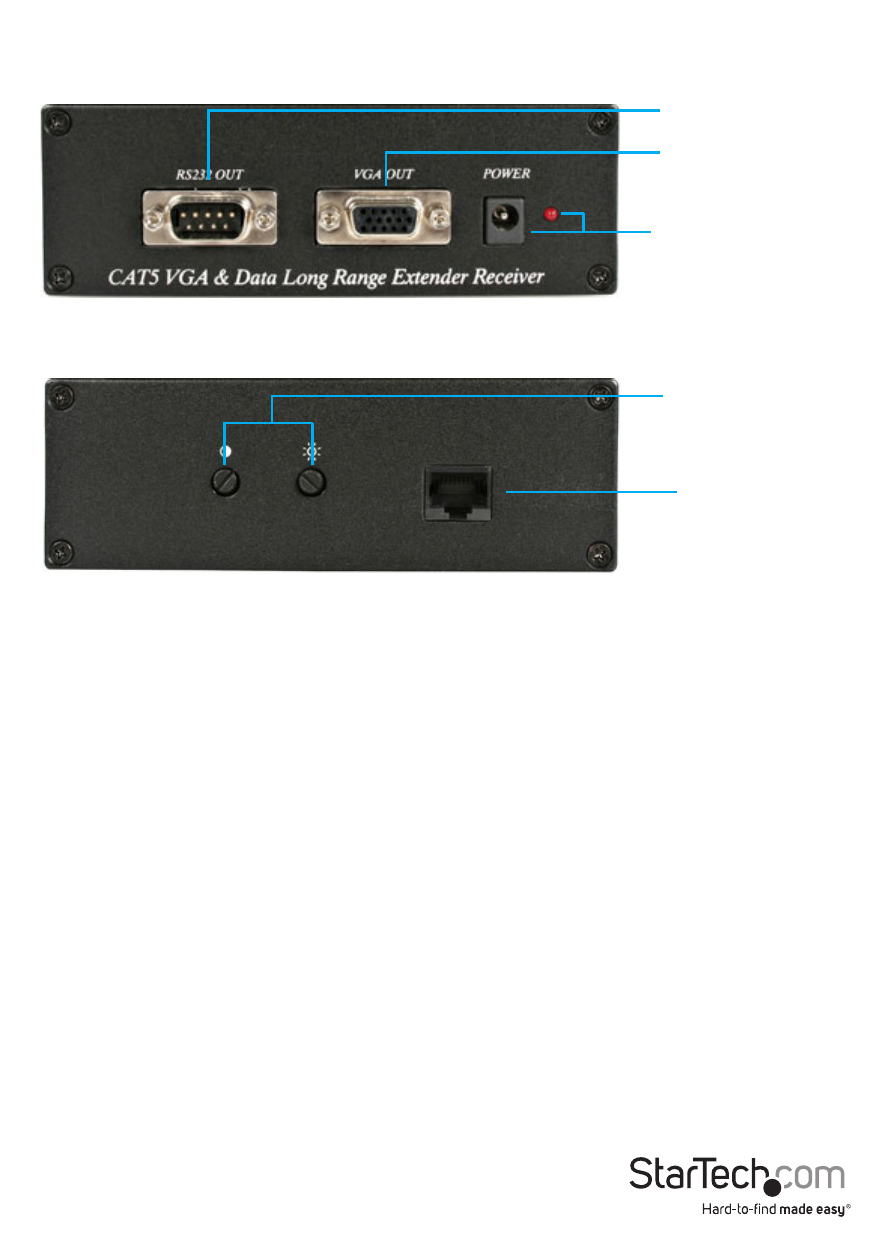

Contrast/
Brightness
Adjustment
RJ45 port
DB9 output
VGA output
Power
connector/LED
Front View - Receiver Unit
Rear View - Receiver Unit
