Installation
ATTENTION!
For the best results, please ensure the video extender units and any
display equipment are properly grounded. Improper grounding may
result in signal noise or potential damage to the extender units.

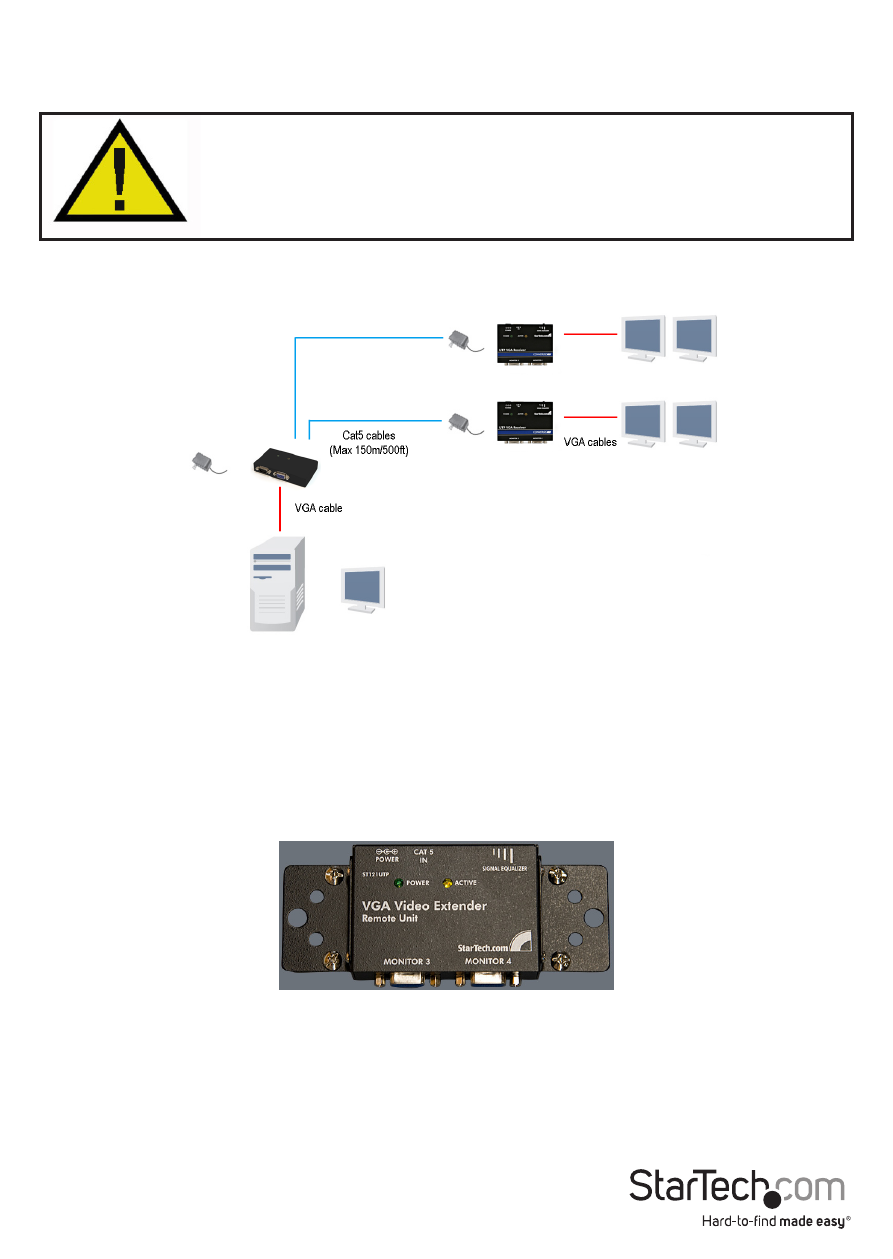

Hardware Installation
ST1212T
ST121R
1. Turn off the video source (i.e. computer) and the intended display devices (i.e.
monitors).
2. Position the ST121R Receiver Unit(s) (sold separately) near the intended remote
display(s).
OPTIONAL: with the optional mounting brackets (StarTech.com ID: ST121MOUNT),
any ST121 series receiver can be securely mounted to a wall or other surface.
*installation photos are for reference only
3. Position the ST1212T Transmitter Unit near the video source.
4. Connect the video source to the “Input” male VGA connector on the Transmitter
Unit, using a standard VGA male/female cable. A local display can be connected to
the “Monitor Out” VGA connector on the Transmitter Unit.
