Page 12

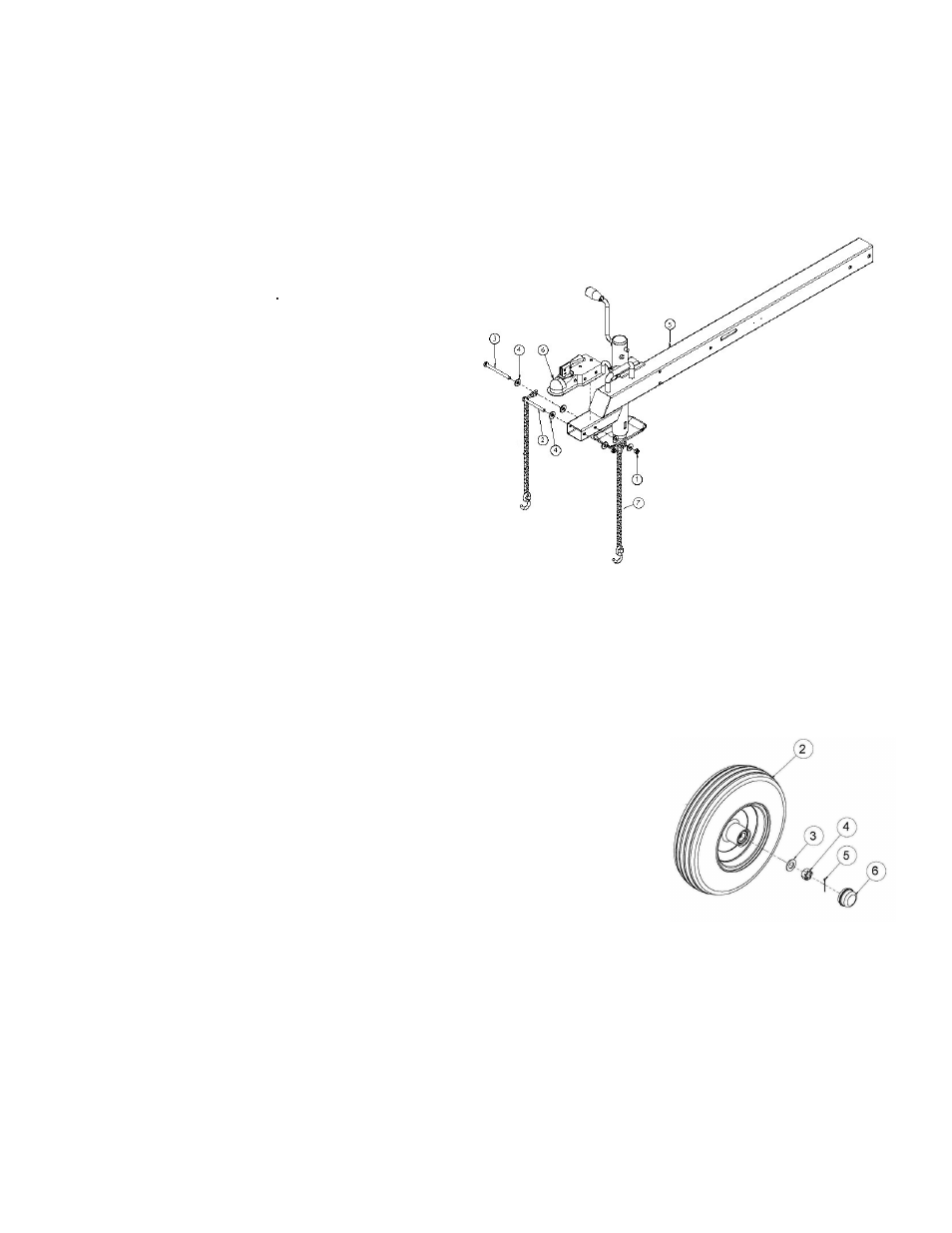

TONGUE ASSEMBLY BREAKDOWN
ITEM NO. PART NO. DESCRIPTION QTY.
1 S17280300 M10 x 1.5 Nylock Nut 2
2 S17271600 M10 x 1.5 x 100mm GR5 Bolt 1
3 S17272000 M10 x 1.5 x 120mm GR5 Bolt 1
4 S17290800 M10 Flat Washer 6
5 S40127200 Tongue with Jack 1
6 S40034600 Hitch Ball Assembly 1
7 S40032300 Safety Chain 2
8 S10040300 Swivel Jack 1
WHEEL AND OTHER REPLACEMENT PARTS
ITEM NO. PART NO. DESCRIPTION QTY.
2 S400312B0 Tire & Wheel Assembly 2
3 O/L 3/4” Light Flat Washer 1/wheel
4 S17012000 3/4” Slotted Nut 1/wheel
5 O/L 1/8” x 1-1/2” Cotter Pin 1/wheel
6 S40032200 Hub Cap 1/wheel
- S40030900 Replacement Wheel Bearing Kit (not shown)
- S40140700 Fender (not shown) 2
S40116800 Hardware Kit 1
O/L- Obtain locally. Common fasteners available through hardware and farm stores.
