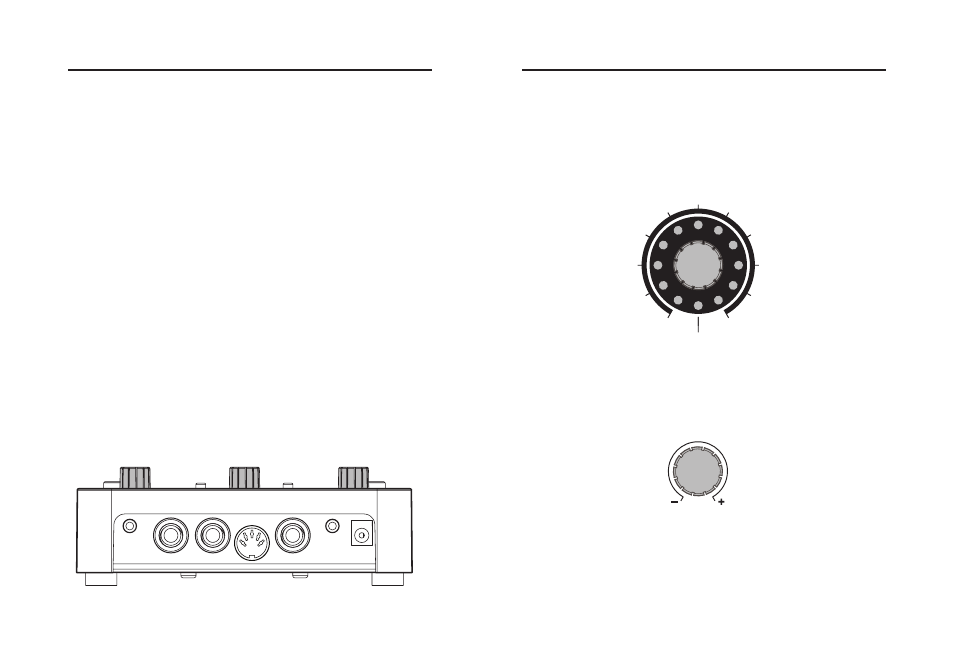

CONTROLS: KNOBS
EFFECT (not labeled)
The effect knob selects which distortion type will be used. There are
11
effect positions around the knob as well as a setting for CLEAN BOOST/
EQ . In the CLEAN BOOST/EQ mode, the distortion effect is bypassed but
the output, midrange, and equalizer still apply. For information on the
individual settings see the Effect Types section.
DRIVE 1
Adjust the amount of distortion before the
MIDRANGE control. See the
Theory of Operation section for more details.
CONNECTIONS
GUITAR IN
Connect your guitar or other instrument here using a standard
MONO
¼" cable.
GUITAR OUT
Connect this to your amp, pedal, or other audio device.
EXPRESSION IN (optional)
Connect a passive expression pedal that uses a
TRS plug here. Allows
morphing of sounds between banks A and B.
SENSOR IN (optional)
Connect an optional Hot Hand sensor here, either wired or wireless.
SENSOR OUT (optional)
Use a Source Audio daisy-chain cable to connect this jack to the sensor
input of another pedal.
MIDI IN (optional)
MIDI program and continuous control input. Connect to a MIDI output
with a standard MIDI cable
9V DC
Connect the included
9 Volt DC power supply here. Use of a non-Source
Audio power supply may cause damage and void the warranty.
CLEAN BOOST / EQ
BENDER
SMOOTH TUBE
POWER STAGE
CRUNCH TUBE
TS9000
BIG PI
EL RATON
FUZZ FAÇADE
METAL
OCTAVE FUZZ TUBE DRIVE
DRIVE 1
SENSOR
IN
SENSOR
OUT
GUITAR IN GUITAR OUT
9V DC
EXP IN
MIDI IN
