Quick Start | 5 4 | Quick Start

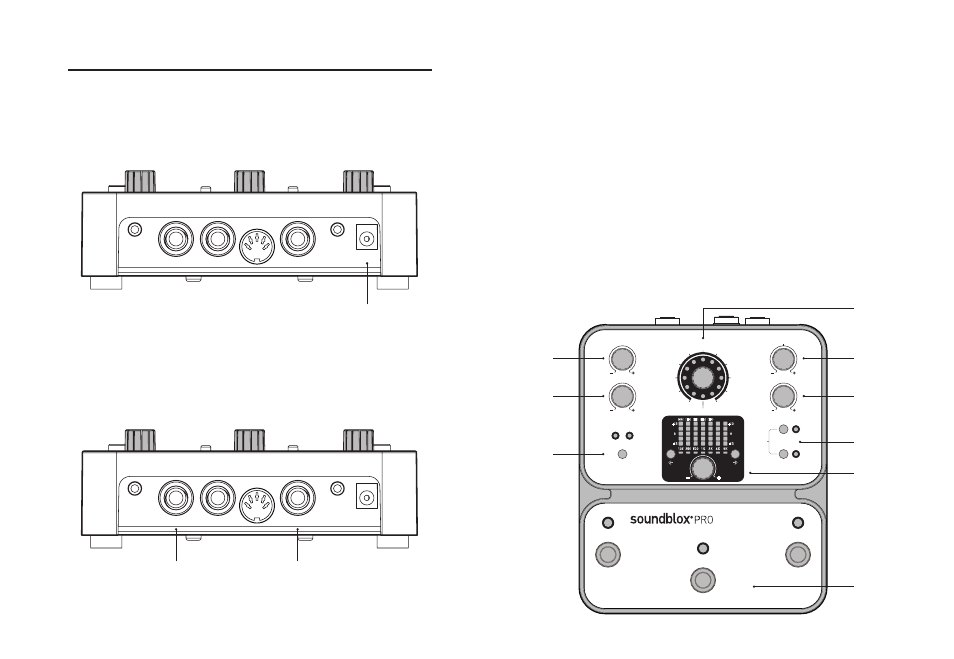

3. BRIEF KNOB, FOOTSWITCH, AND BUTTON DESCRIPTIONS
See Controls section for more details.
A DRIVE 1: adjusts the pre-drive for the selected effect.
B DRIVE 2: adjusts the post-drive for the selected effect.
C PRESET BANK BUTTON: select preset bank A (presets 1 , 2 , and 3 ) or
B (presets 4 , 5 , and 6 ).
D EFFECT KNOB: selects the type of distortion.
E MIDRANGE: boosts or cuts the midrange frequencies between the
two drive controls.
F OUTPUT: adjusts the output level of the effect.
G HH ENABLE and CALIBRATE: for Hot Hand use only.
H EQ SECTION: the two buttons select the frequency band to edit and
the knob adjusts the value of the selected band.
I FOOTSWITCHES: Enables/Disables a selected preset depending
on the currently selected preset bank. Press and hold to save an
edited preset.
QUICK START
1. POWER
To power the unit, connect the included
DC adapter power supply to
the 9V DC jack (A) on the back panel. Note: Using a different supply
could damage the unit and void the warranty.
2. GUITAR/AUDIO CONNECTIONS
Next, plug your guitar (or other instrument) into the jack labeled
GUITAR IN via a standard ¼" cable. Connect your amp (or other audio
device) to the GUITAR OUT jack, again with a standard ¼" cable. Both
input and output are mono signals.
SENSOR
IN
SENSOR
OUT
GUITAR IN GUITAR OUT
9V DC
EXP IN
MIDI IN
SENSOR
IN
SENSOR
OUT
GUITAR IN GUITAR OUT
9V DC
EXP IN
MIDI IN
A
C B
125 250 500 1K 2K
(NG) (HG) (HS) (HA) (HR)
4K 8K
+12
-12
0
< >
+12
-12
0
DRIVE 1 MIDRANGE
CLEAN BOOST / EQ DRIVE 2 OUTPUT
HH ENABLE
CALIBRATE PRESET BANK
4-6 1-3 BACKPAGE
MODE
BENDER
SMOOTH TUBE
POWER STAGE
CRUNCH TUBE
TS9000
BIG PI
EL RATON
FUZZ FAÇADE
METAL
OCTAVE FUZZ TUBE DRIVE
0
CLASSIC DISTORTION 1 4
2 5
3 6
A E
D
B
C
F
G
H
I
