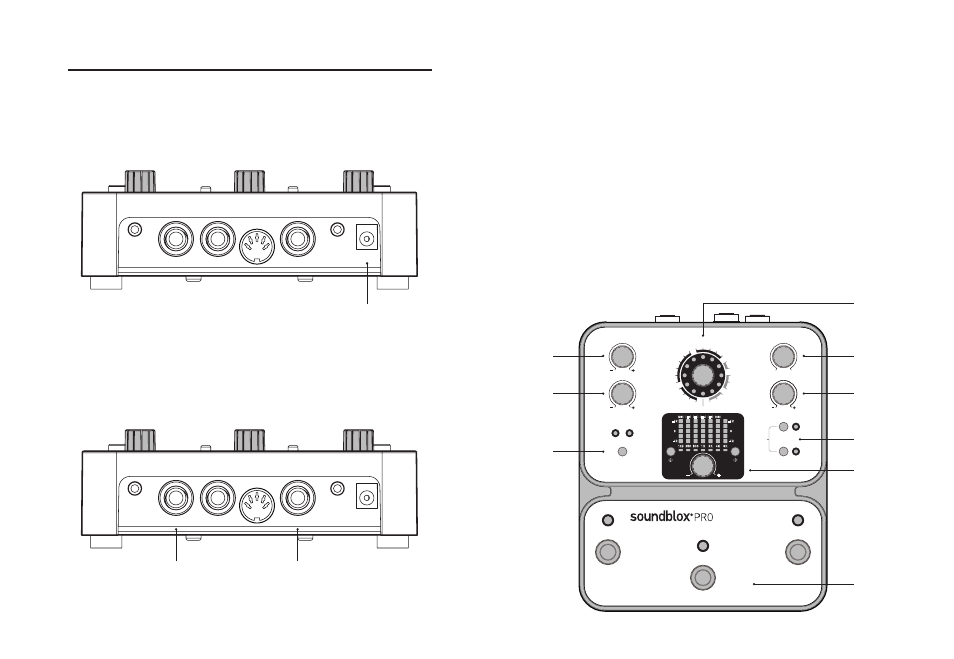

3. BRIEF KNOB, FOOTSWITCH, AND BUTTON DESCRIPTIONS
See Controls section for more details.
A SUSTAIN: adjusts input gain to the front-end compressor.
B DRIVE: the amount of distortion gain applied to the signal.
C PRESET BANK BUTTON: select preset bank A (presets 1 , 2 , and 3 ) or
B (presets 4 , 5 , and 6 ).
D EFFECT KNOB: selects the type of distortion.
E MIX: adjusts the mix of distorted signal to clean signal
F OUTPUT: adjusts the output level of the effect.
G HH ENABLE and CALIBRATE: for Hot Hand use only.
H EQ SECTION: the two buttons select the frequency band to edit
and the knob adjusts the value of the selected band.
I FOOTSWITCHES: Enables/Disables a selected preset depending
on the currently selected preset bank. Press and hold to save
an edited preset.
Quick Start | 5 4 | Quick Start
QUICK START
1. POWER
To power the unit, connect the included
DC adapter power supply to
the 9V DC jack (A) on the back panel. Note: Using a different supply
could damage the unit and void the warranty.
2. GUITAR/AUDIO CONNECTIONS
Next, plug your guitar (or other instrument) into the jack labeled
GUITAR IN (B) via a standard ¼" cable. Connect your amp (or other
audio device) to the GUITAR OUT jack (C) , again with a standard
¼" cable. Both input and output are mono signals.
