4 | Quick Start
QUICK START
1. POWER
To power the unit, connect the included DC adapter power supply to
the 9V DC jack on the back panel.
Note: Using a non-Source Audio power supply could damage the unit.
Please be very cautious when using a 3rd party supply.
2. GUITAR/AUDIO CONNECTIONS
Using standard ¼" mono cables, connect your guitar to the GUITAR
IN jack. Connect the pedal from the GUITAR OUT jack to your amp or
other audio device.
3. BRIEF KNOB, FOOTSWITCH, AND BUTTON DESCRIPTIONS
(see Controls section for more details)
•
EFFECT KNOB (A):
selects the type of distortion.
•
DRIVE (B):
adjusts the amount of distortion applied to the signal.

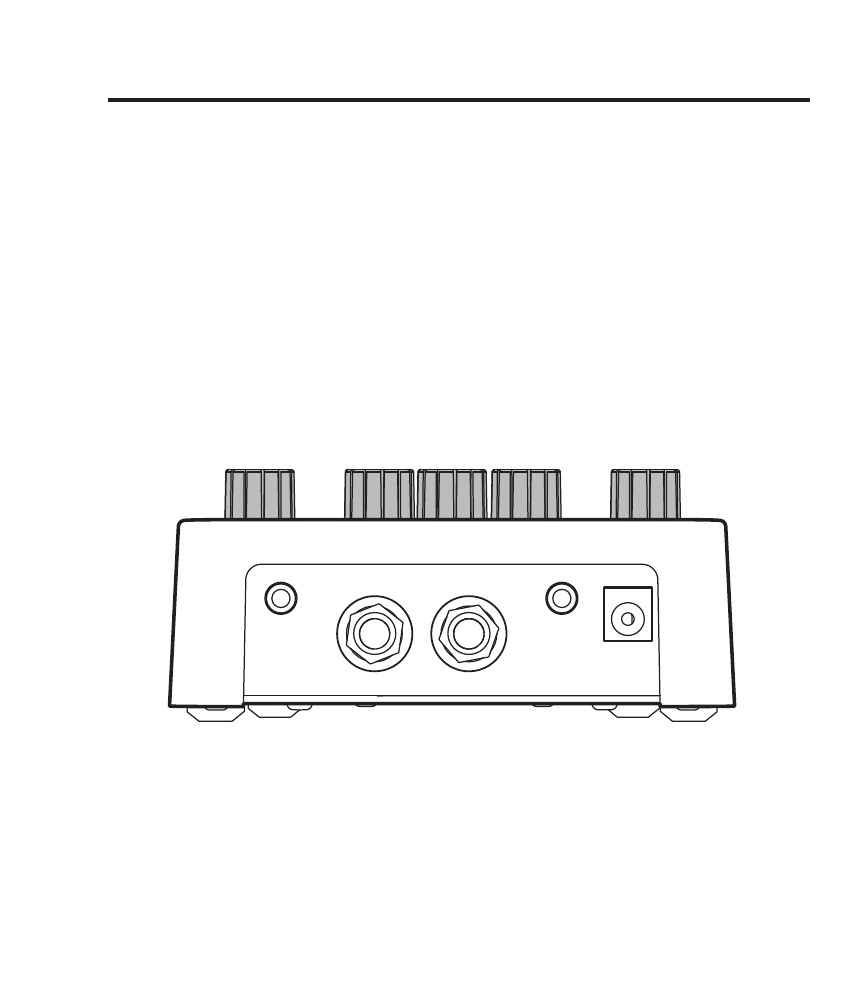

GUITAR IN
MULTI-
FUNCTION
IN
MULTI-
FUNCTION
OUT
GUITAR OUT
9V DC
