EXTERNAL CONTROL
One of the Core Features of the Soundblox 2 line of effects is the MULTI-
FUNCTION Input. The MULTI-FUNCTION input is an intelligent control
input that accepts both digital and analog control signals. It replaces the
SENSOR input on previous Soundblox pedals. The MULTI-FUNCTION
input connects to wired or wireless Hot Hand accessories, the Source
Audio Dual Expression Pedal, or a future Source Audio MIDI interface that
will enable full MIDI I/O access to the pedal.
Selecting an external control input:
Press and hold the TONE SHAPE button, then quickly press the NOISE
GATE button — the LOW/(EXP) LED will turn from green to red. This will
change the function of the NOISE GATE button. Now press the NOISE
GATE button again to select between the control options. The options are
indicated in white text below the gate level labels. There are four possible
settings:
• OFF (no LEDs on): External control is disabled in this mode
• EXP: Expression Pedal mode. Select EXP to enable use with
the SA161 Source Audio Dual Expression Pedal. By default, the
expression pedal will control the Morph (see the Morphing
section for details). The Expression Pedal can also be assigned
16 | External Control
LOW
(EXP)
MED
(MIDI)
HIGH
(HH)
NOISE
GATE

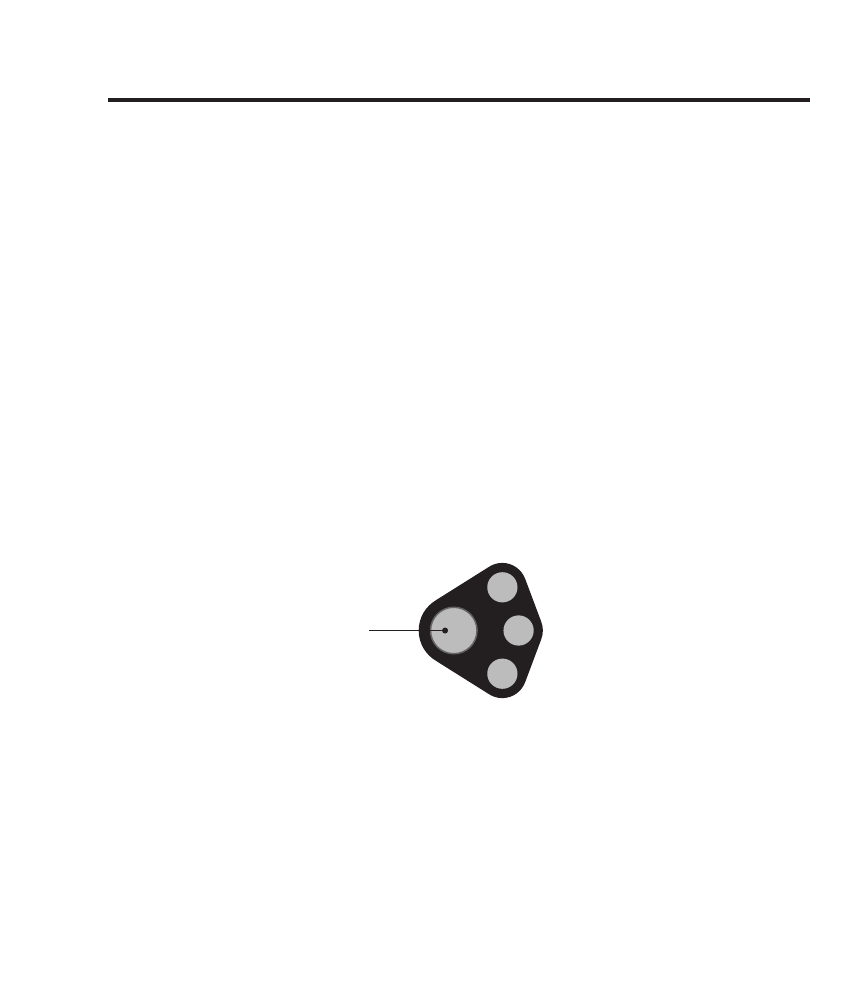

Press button to
select option
