Quick Start | 5
1 2
CONTROL
INPUT
OPTION
SELECT
ENV- ENV+
DEPTH
OPTION
SPEED
DELAY/FREQ
FEEDBACK
VOLUME
TREMOLO
MIX
(HOLD)
DEFAULT
HH
MIDI
EXP
FLANGER
CHORUS
PHASER
RESONATOR
MOD SOURCE
4 STAGE
QUAD
CLASSIC
THRU
ZERO
SHADOW
RES 1
RES 2
VIBE
6 STAGE
8 STAGE DUAL
12 STAGE
O RB I TAL
MODU L A T OR
G
D
A
C
B
F
H H
E

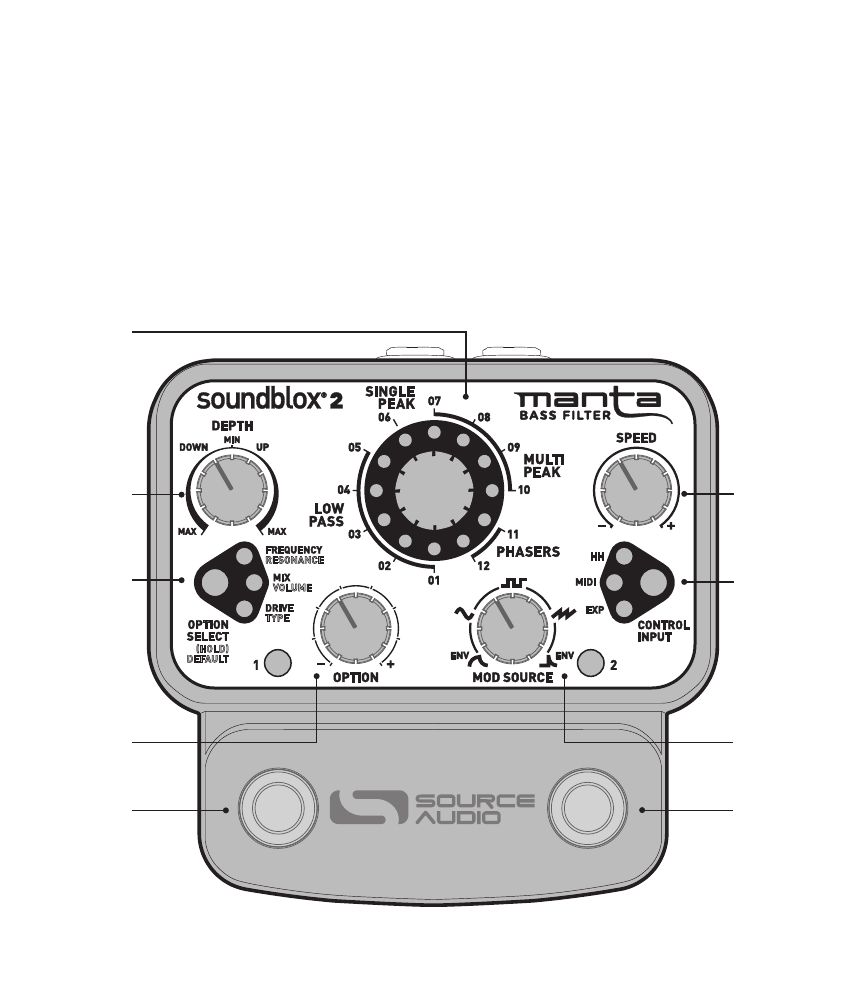

• OPTION (C): Adjusts the parameter selected by the OPTION SELECT button.
• SPEED (D): Adjusts the attack and decay rate of the envelopes, the rate of
the LFO (Low Frequency Oscillator), or the ”Smoothing” of the Hot Hand.
• MOD SOURCE (E): Selects between the envelopes, sine wave LFO, square
wave LFO, and sawtooth wave LFO.
• OPTION SELECT (F): Selects which parameter will be controlled by the
OPTION knob.
• CONTROL INPUT (G): Selects which external controller type will be used.
• FOOTSWITCHES (H): Enables/Disables presets. Press and hold either
footswitch to save an edited preset.
