Chapter 4. Port Menu

TestView

4-4

4.1.6 Connect / Disconnect Button

Connect option opens selected ports. All menu options are activated after the port is opened.

z Use buttons to connect or disconnect all ports displayed in the window.

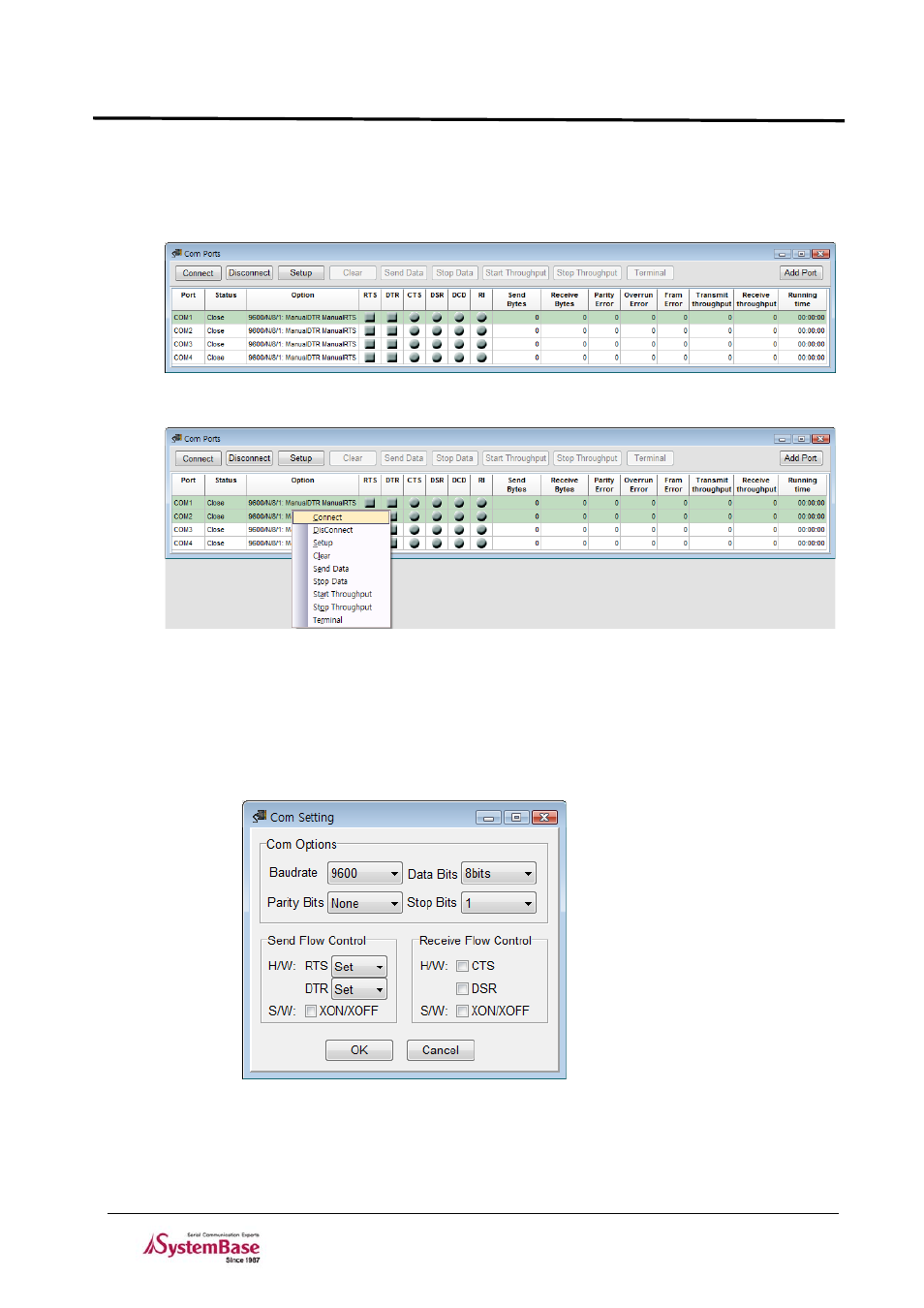

z When you want to connect or disconnect only selected ports, refer to the screenshot below. Ports

are connected in this example.

4.1.7 Setup Button

The options are identical to what is available in “Open COM Port” menu. This option is handy when you

need to change speed or other options when testing ports.

z When you press “Setup” button, “COM Setting” window is displayed.
z Baudrate/Data Bits/Parity bit/Stop Bits/Flow Control options can be changed. It is recommended,

however, that you use default settings except the baudrate.
