Page 11
3. Removing element for service/maintenance.
A. Carefully remove retaining wing-nut, washer, and nut securing element top
plate, Figures C.3.1 and C.3.2.
B. Lift top plate off of element and pull element out of housing, Figures C.3.2
and C.3.4.
C. Clean sealing surfaces of housing, top plates and element end caps so
that they are free of dirt or any other particulate.
D. Clean sealing surfaces of housing and element so that they are free of dirt
or any other particulate.

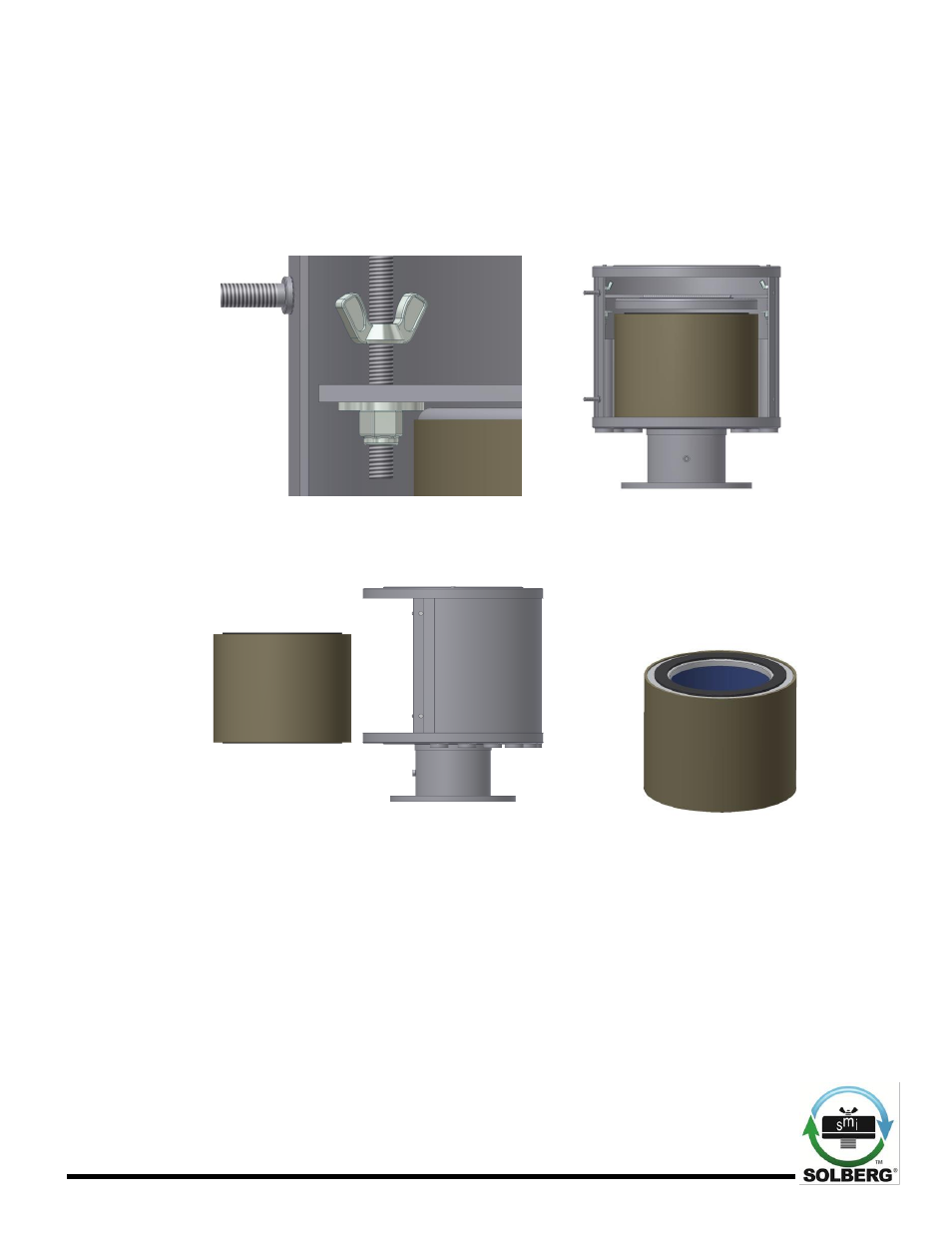

Figure C.3.1: Wing-nut removal. Figure C.3.2: Element sitting in housing
with top plate lifted off.
Figure C.3.3: Element removal from housing. Figure C.3.4: Element free from housing.
