6 EC10DV SERIES

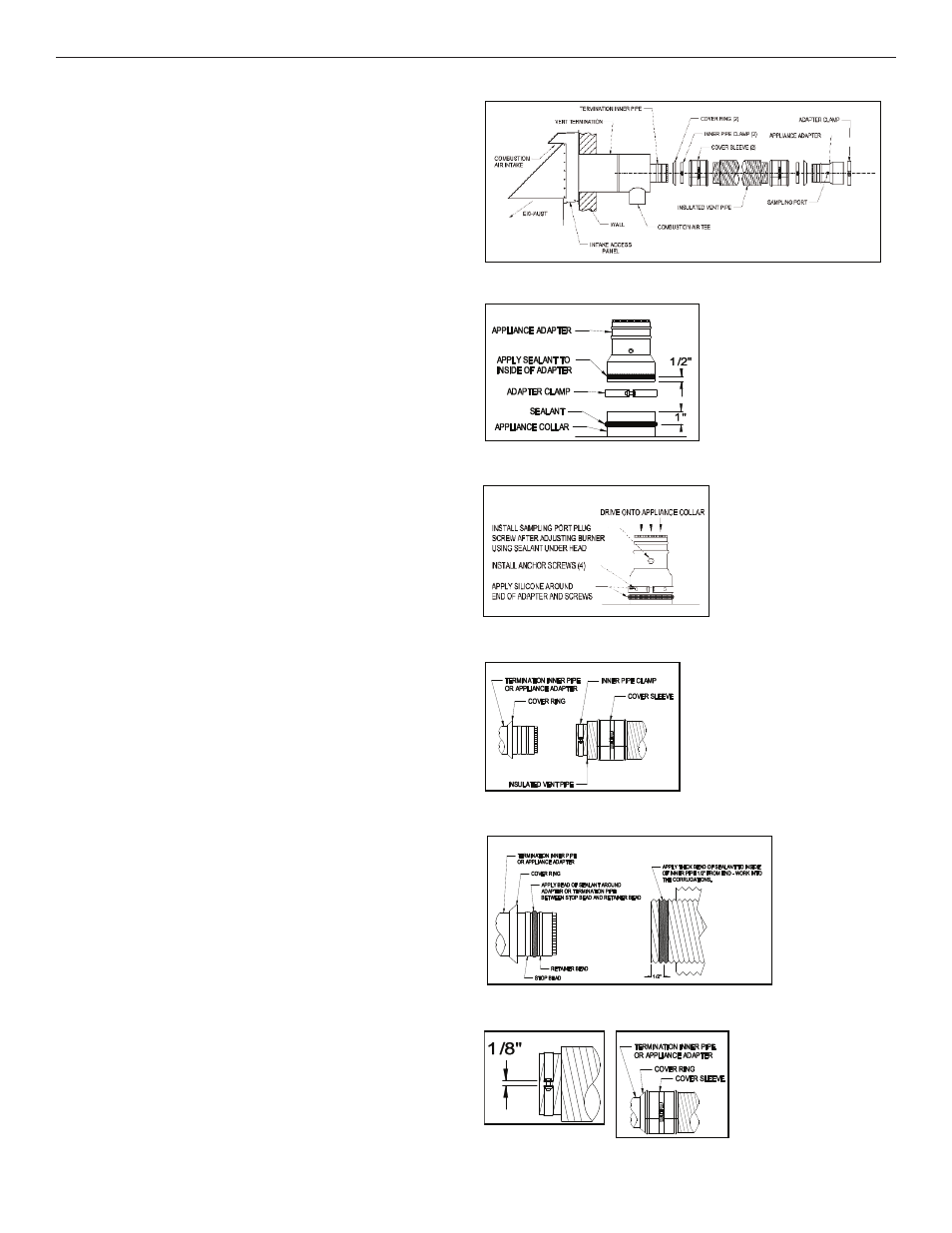

APPLIANCE ADAPTER INSTALLATION:
1. Apply a bead of sealant to appliance collar approx. 1” from
end of collar (Figure 5).
2. Remove all oil and grease from the inside of the appliance
adapter, and apply a bead of sealant to inside of adapter ?”
from end (Figure 5).
3. With a twisting motion, assemble the appliance adapter onto t
he appliance collar.
4. Using a mallet and block of wood, drive the adapter onto the
appliance collar, using care to avoid damaging the appliance
collar or the adapter (Figure 6).
5. Assemble adapter clamp halves using the supplied 5/16” bolts
and square nuts, and install the appliance clamp onto the
adapter and tighten securely (Figure 5).
6. Install the supplied self-drilling, self-tapping anchoring screws
through the 4 holes in the appliance clamp into the appliance
collar (Figure 6). No pilot hole is required.
7. Apply sealant to the end of the adapter and anchoring screws.
(Figure 6).
8. After testing and burner adjustments have been made, apply
sealant to the supplied 3/8” sampling port plug screw and
install the screw in the sampling port (Figure 6).
9. Maintain the following clearances to combustibles. If the
appliance collar is within 18" of combustible material, wrap
minimum 1-1/2" ceramic insulation (installer-supplied) around
the exposed portion of the termination inner pipe and
appliance adapter (Figure 10).
JOINT ASSEMBLY: VENT PIPE TO TERMINATION
AND APPLIANCE ADAPTER
If necessary, the vent pipe may be cut to length with a hacksaw
or cut off saw.
CAUTION: Use safety glasses and other appropriate safety gear.
1. Pull outer vent pipe back 1”-2” from inner vent pipe end and
remove insulation (Figure 7).
2. Slide Cover Sleeve onto end of vent pipe a few inches back
from end of outer vent pipe (Figure 7).
3. Slide Cover Ring over stop bead on termination inner pipe or
appliance adapter (Figure 7).
4. Assemble inner pipe clamp halves using the supplied ?” bolts
and square nuts, and position inner pipe clamp ?” from end of
inner pipe (Figure 7).
5. Remove all oil and grease from end of termination inner pipe
or appliance adapter, and apply a bead of sealant to between
the stop bead and retainer bead (Figure 8).
6. Apply a thick bead of sealant to inside of inner vent pipe ?”
from the end of pipe, working the sealant into the corrugations
(Figure 8).
7. Push the inner vent pipe onto the termination inner pipe or
appliance adapter all the way up to the stop bead.
8. Tighten the inner pipe clamp bolts until both clamp halves are
within 1/8" of each other at each end (Figure 9).
9. Slide the cover sleeve and cover ring together to engage the
ring in the groove of the sleeve, and tighten the cover sleeve
clamp (Figure 10).
10. To maintain 1" clearance to combustibles, wrap minimum
1-1/2" thick ceramic insulation (installer-supplied) around the
exposed portion of the termination inner pipe (Figure 10), and
secure with foil tape (installer supplied).
Figure 4
Figure 5
Figure 7
Figure 8
Figure 6
Page 4
Figure 9
Figure 10
