Sigtronics 900118 User Manual
Page 2
1234.00
Adapter
Radio
Hand Mic
Intercom or MRIM-2 Cable
Speaker wires from
Intercom or MRIM-2
EF Johnson
• Falcon 7610
• Falcon 7640
Function
8 Pin
Sigtronics Wire Color
PTT HI
D
White
MIC LO
E
Black
MIC HI
F
Brown
PTT LO
G
White
HYT America
• TM-600
• TM-610
• TM-628H
• TM-800
Function
8 Pin
Sigtronics Wire Color
PTT LO
C
White
PTT HI
D
White
MIC LO
E
Black
MIC HI
F
Brown
ICOM
• IC-V220
• IC-U220
Function
8 Pin
Sigtronics Wire Color
MIC HI
A
Brown
MIC LO
B
Black
PTT LO
D
White
PTT HI
E
White

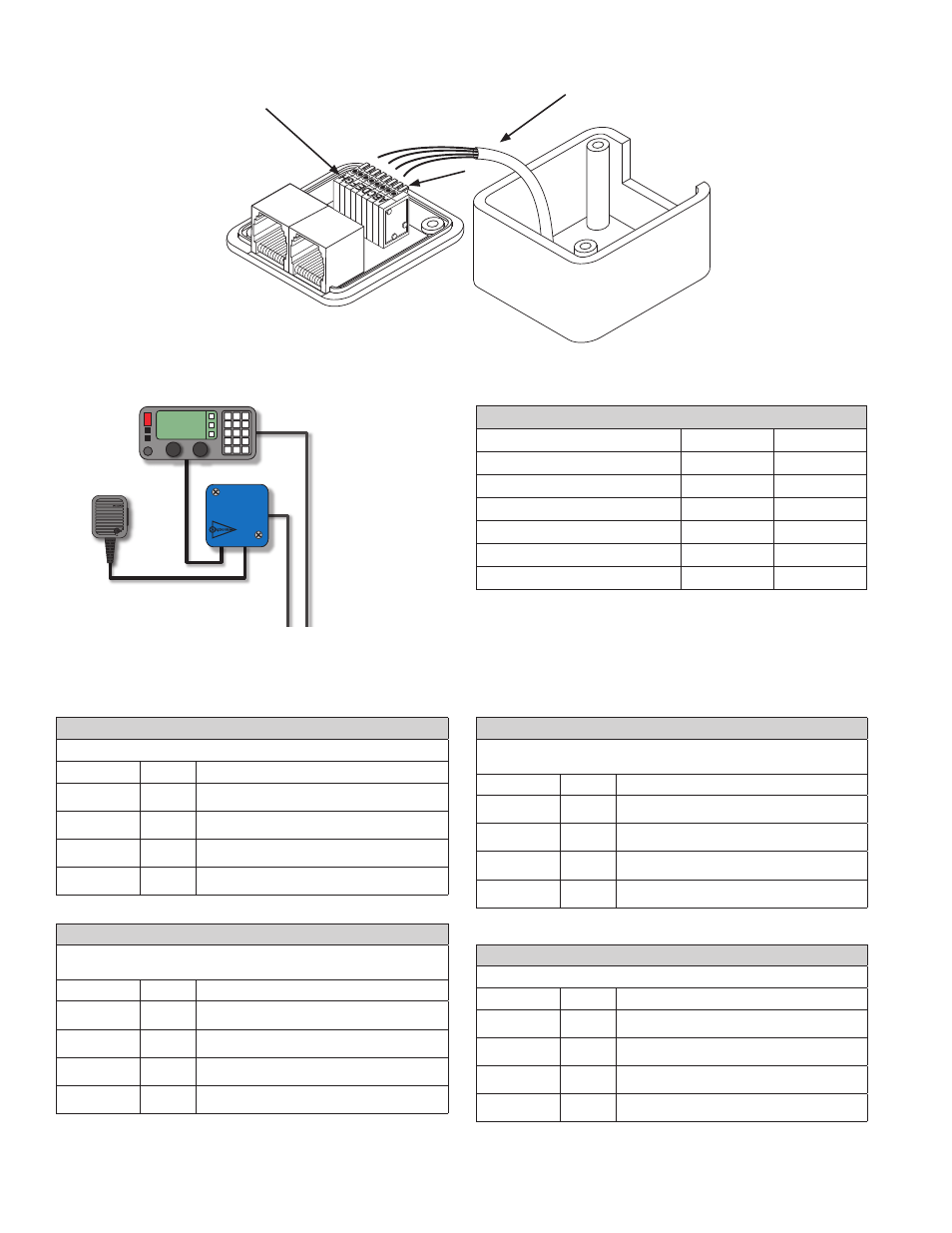

Telephone type jacks
Adapter lid
Adapter bottom
Terminal Block
A
Cable from UltraSound Intercom or MRIM-2
Sigtronics Universal Mobile Radio Microphone Interface “Y” Adapter 8 Pin
Standard Equipment Included
Part Description
Part Number
Quantity
Adapter to Radio Cable — 8 Pin
100718
1
Box Cover Screws
100429
2
Box Mounting Screws
100452
2
Foam, Double Sided
100720
1
Tie Wrap
100450
1
Wire Grommet
100049
1
EF Johnson
• 8600 Series
• 984x Series
• 988x Series
• 989x Series
Function
8 Pin
Sigtronics Wire Color
MIC LO
B
White
PTT LO
B
Black
MIC HI
C
Brown
PTT HI
E
White
