Elevation
High shots are corrected by turning the elevation correc-
tion screw to the left. Low shots are corrected by turning
the screw to the right.
Windage
Shots to the right are corrected by turning the windage
correction screw to the left. Shots to the left are corrected
by turning the screw to the right.
SG 552 with Diopter sight
(average point of impact correction per notch)
Firing- Height Side
range
100 m 1,7 cm/0.67 inches 2,4 cm/0.95 inches
200 m 3,4 cm/1.34 inches 4,8 cm/1.89 inches
300 m 5,1 cm/2.01 inches 7,2 cm/2.84 inches
27
Handling
3.7.2 Adjusting
To correct for elevation and windage, the corresponding
correction screw is turned with a screwdriver.
1 Receiver casing
2 Windage correction screw
3 Rear sight drum
4 Elevation correction screw
Handling
26

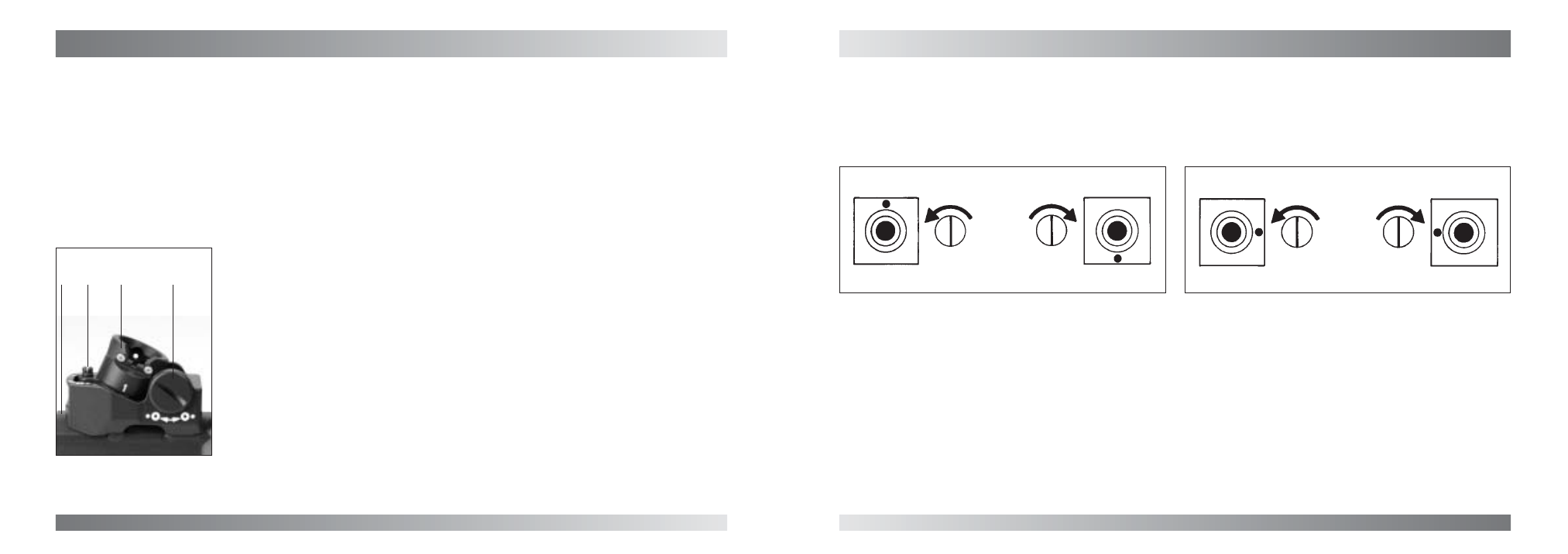

illu. 26) Rear sight
illu. 27) Correction symbol on rear sight
(correction of elevation)
illu. 28) Correction symbol on rear sight
(correction of windage)
1 4 2 3
