SIG SAUER SIG556xi User Manual
Page 49
www.sigsauer.com
49
to disassemble
6.0 field strip disassembly
1. unload rifle (see section 5.0) – visually and physically check to ensure
the rifle is clear of all ammunition;
2. ensure the bolt is forward;
3. retract the takedown pin (rear pin) – this pin is captured and does
not fully remove;
4. retract the pivot pin (front pin). This pin is captured and does not
fully remove.
5. Separate the trigger casing from the receiver;

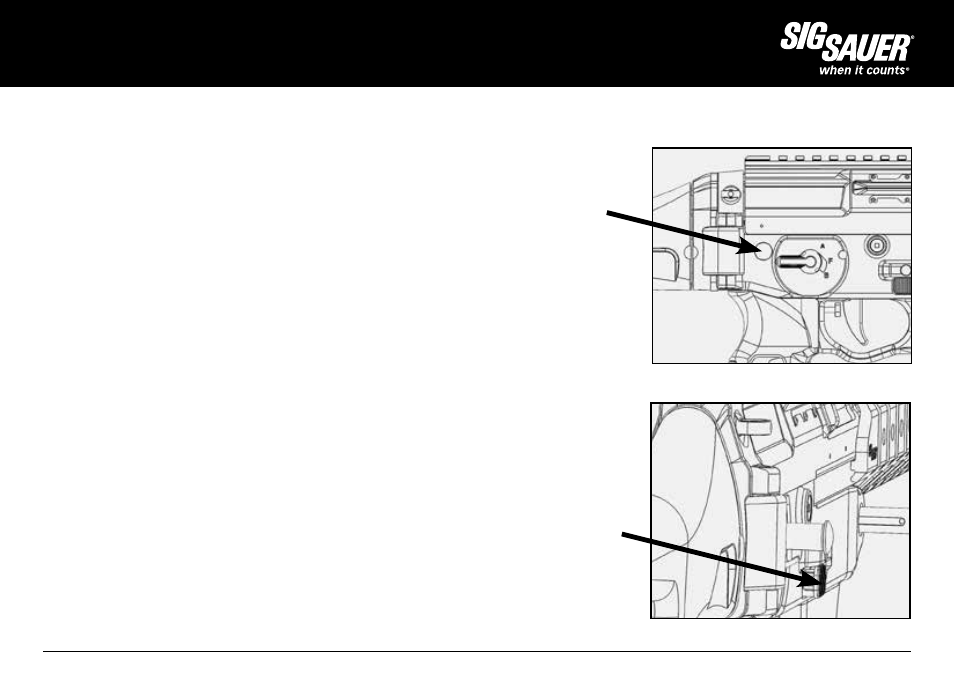

STeP 3
STeP 4
TAKeDOWN
PiN
PiVOT PiN
