9.3.2 assembly

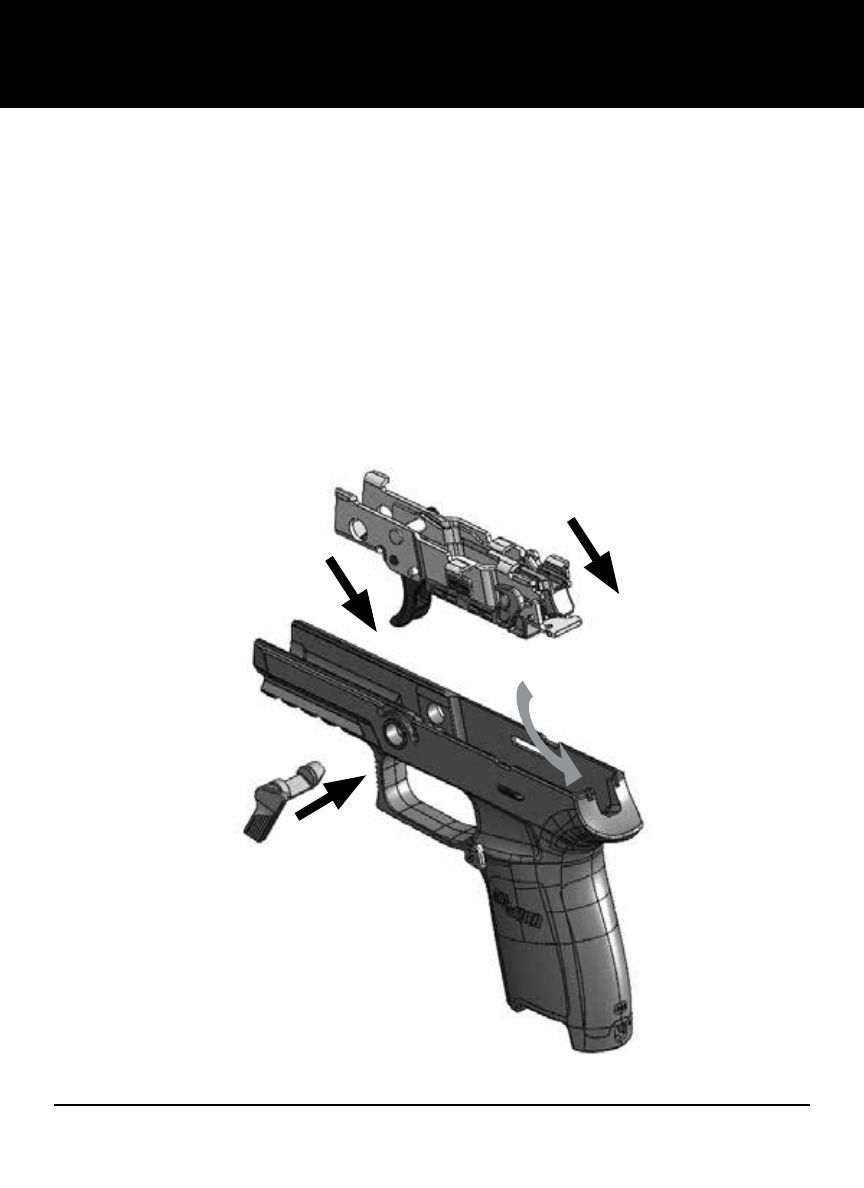

1. insert the frame assembly locking tab into the mating slot inside the rear of the
grip module.
2. Press down on the frame rails, rotating the frame assembly into position.
3. insert the takedown lever (turn and push simultaneously) through the
corresponding hole on the left side of the grip module/frame assembly, locking
the frame assembly in place.
4. assemble the pistol (see section 8.4 “Pistol assembly”).
Step 3
Step1
Step 2
