Santec 9555KT-TM User Manual
Page 9
0 9

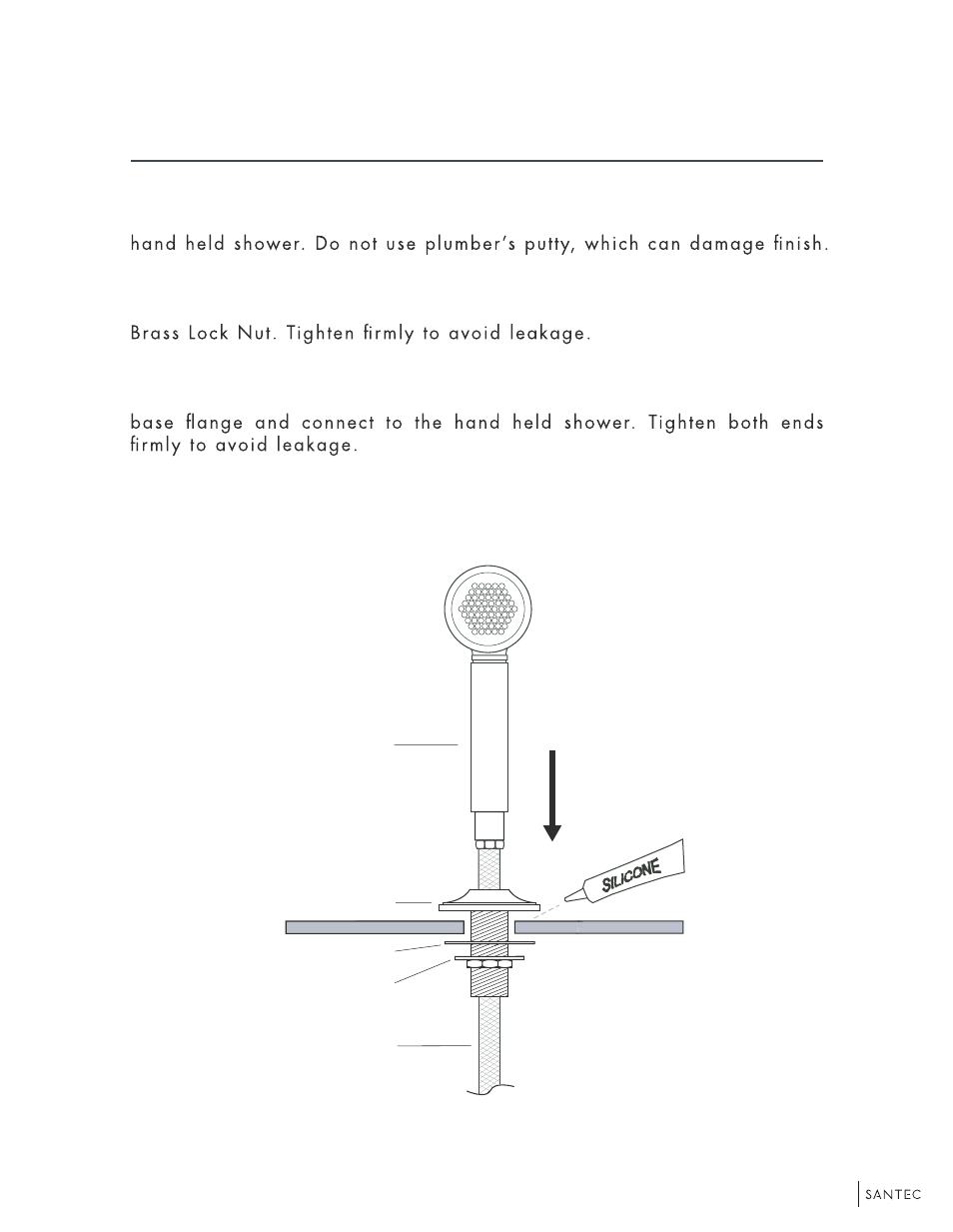

H a n d H e l d S h o w e r Tr i m
Metal Washer
Brass Lock Nut
Base Flange
Apply a ring of silicone caulking around the hole designated for the
Remove the hardware from Base Flange. Slip the Base Flange through the
appropriate hole in deck. From underneath attach the Metal Washer and
From underneath the deck attach the larger side of the 57” hose to the
Spout Diverter Valve. Slip the smaller end of the hose up through the
Hand Held Shower
Hose
Other end of Hose to connect
to Spout Diverter Valve
9555KL, KR, KT _ _
