S p o u t Tr i m
Remove the protective cap from the head of the shank.

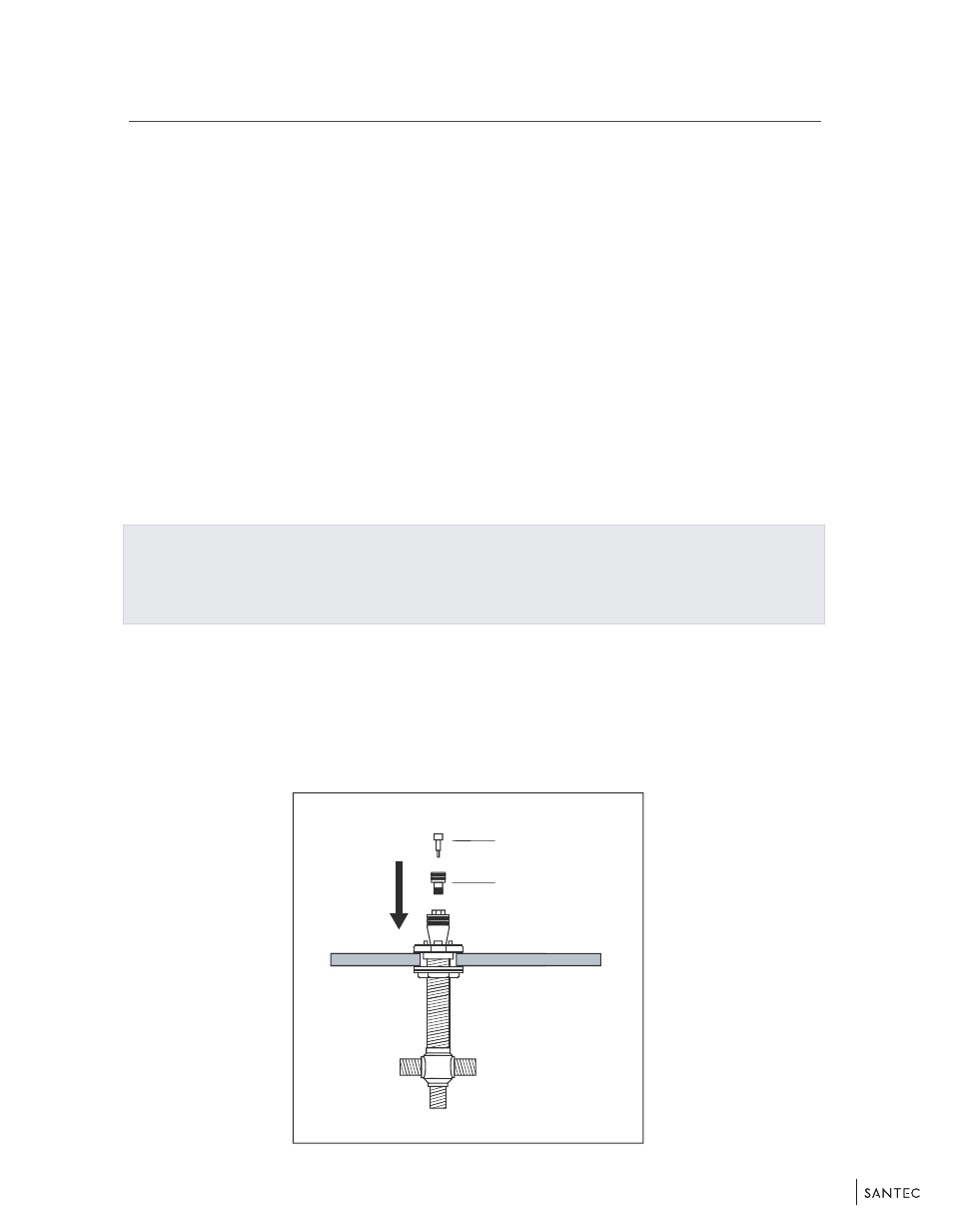

Push the insert tube into the head of the spout shank (See Figure A).
Screw the Insert Rod in the Insert Tube and position the thread holes of
the Insert Rod facing frontward and rear ward.
NOTE: Before attaching spout make sure to have the lever hole on the
spout base facing exactly rear ward.
Slip the spout with the Flange Washer over the Spout Shank top and
push down until the base is locked securely onto the deck (See Figure
B on next page).
IMPORTANT: Use a straight-edge to align the edge of the spout base
exactly parallel with the deck edge. If the spout base is not straight
with the deck edge then loosen the spout mounting hardware from
underneath, align, and re-secure.
Screw the Lift Knob securely into place (See Figure C on next page).
Tighten the set screw with the Allen Key provided (See Figure C on next
page).
Spout Trim Installation
I n s e r t T u b e
I n s e r t R o d
F i g u r e A
9555KL, KR, KT _ _
