Installation and Wire
connection manual
9.
SAMPLE SYSTEMS
(VRX630)
(TTX7501z)
(VCZ625)
(CDC655z/655Tz/1255z/
DCZ625)
CeNET
STAND
ALONE
TV Tuner
CeNET cable
(included the TV tuner)
RCA video cable
(included the TV tuner)
DVD Changer
CD Changer
CeNET Y-adapter
(CCA-519-601,
sold separately)
Ferrite clamp
(Included the DVD changer)
CeNET Cable
(included the Changer)
Set the [CeNET/STAND ALONE]
switch to the [CeNET] position.
∗
To enable the correct input, it is
necessary to configure the VRX630
as described on page 30.
∗
When two CD changers or
MD changers are connected,
CCA-519-601 is required.
Main Unit
VIDEO INPUT terminal
VISUAL/CCD/DVD changer terminal
AV Adapter cable
(CCA-389, sold separately)

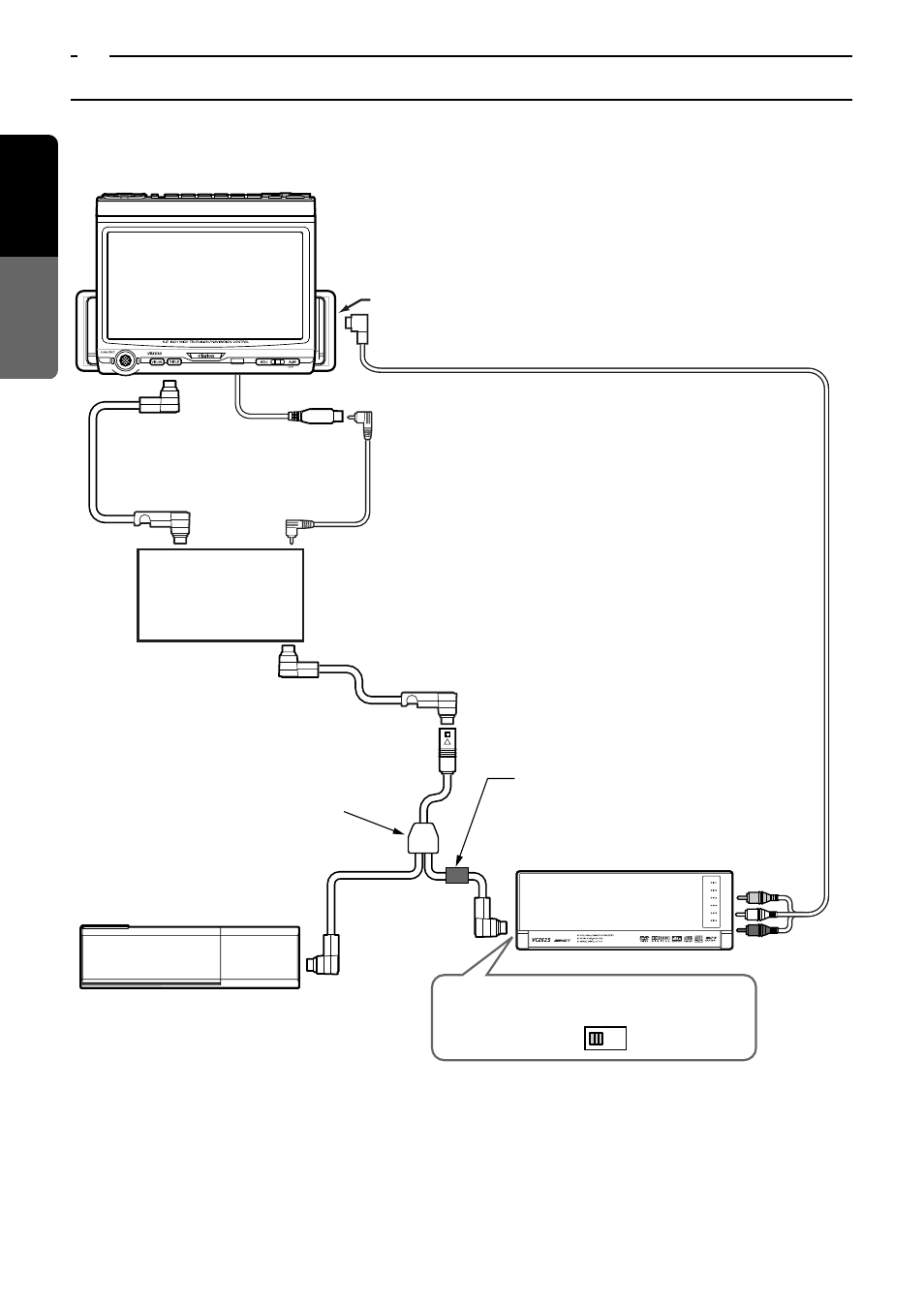

■ Sample System 1
