VRX630

English

Installation and Wire

connection manual

■

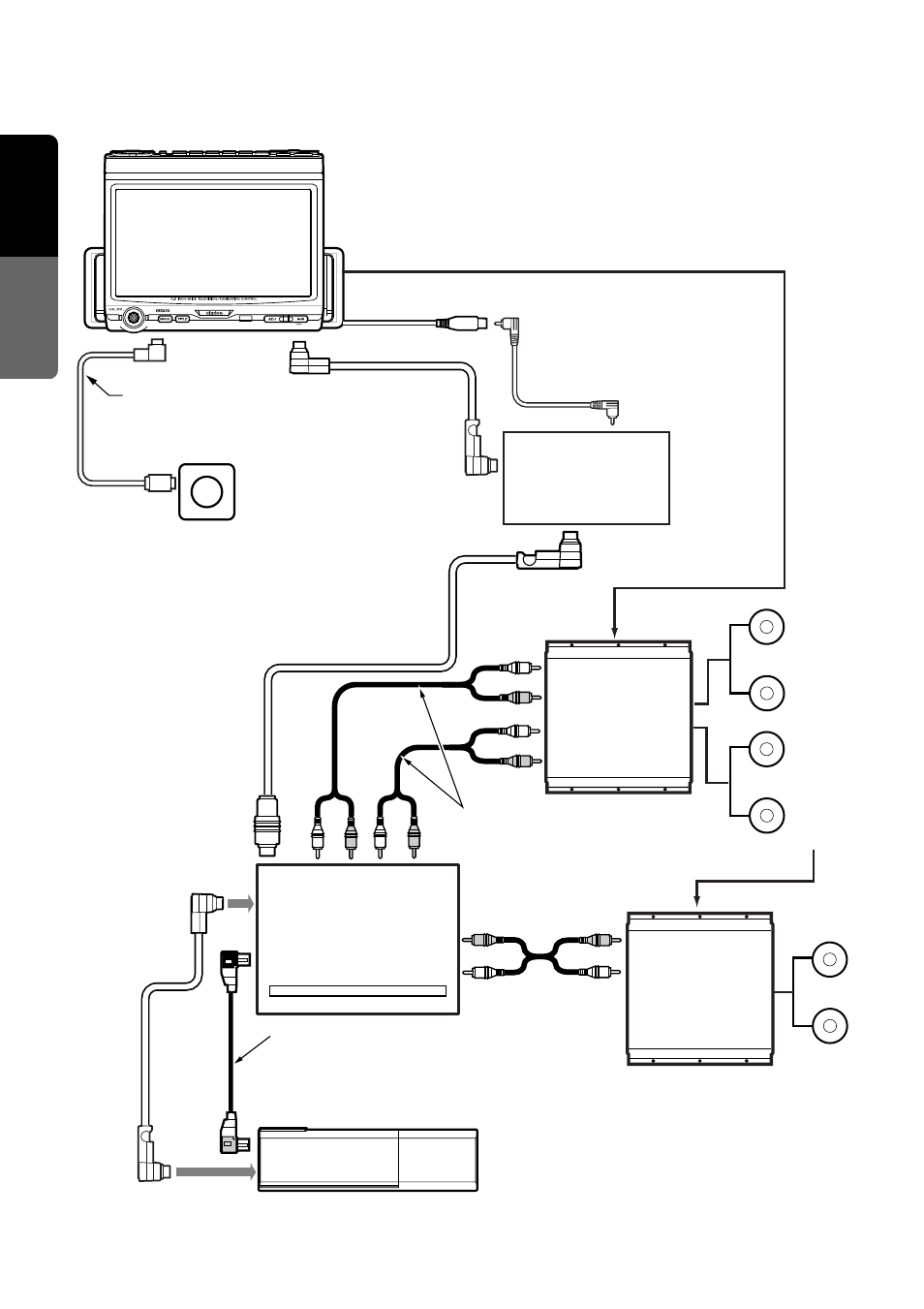

Sample System 3

(VRX630)

(TTX7501z)

(CDC655z/655Tz/1255z/

DCZ625)

(DPH910)

TV Tuner

CeNET cable
(included the TV tuner)

RCA video cable
(included the TV tuner)

CD Changer

CeNET Cable
(included the
Changer)

Front
Speakers

Rear

Speakers

Mini DIN(8P) Cable

(included the
CCD camera)

Amp remote

Main Unit

CCD camera

Sub-

woofer

4-channel

Power Amplifier

2-channel

power amplifier

Digital Sound

Processor

CeNET Cable
(included the DPH910)

RCA PIN cable
(included the DPH910)

Amp remote

RCA PIN cable
(sold separately)

Digital optical fiber cable(sold separately)

VIDEO INPUT terminal

∗

To enable the correct input, it is

necessary to configure the VRX630 as
described on page 30.
