48
VRX630
English
Installation and Wire
connection manual
∗
1:Connect securely to the metal part of the vehicle with a screw, etc.
∗
2:Connect to the power supply terminal which can be turned on and off by the ignition switch.
∗
3:Connect to the power supply terminal where the power is always supplied regardless of whether the
ignition switch is turned on or off.
∗
4:Connect to the remote turn-on lead of amplifiers.
∗
5:Use the attached extension lead when necessary.
∗
6:Connect the terminal to the lead wire on the lamp side of the parking brake lamp switch. After
connection, apply the parking brake, then check that the TV displays an image.
• If the PKB lead is not connected to the side brake, some units may not operate.
AUDIO 4CH. OUTPUT
terminal
Front right
Front left
Rear right
Rear left
Red
Red
White
White
Gray
Brack
Gray
Brack
VISUAL/CCD/DVD changer terminal
8.

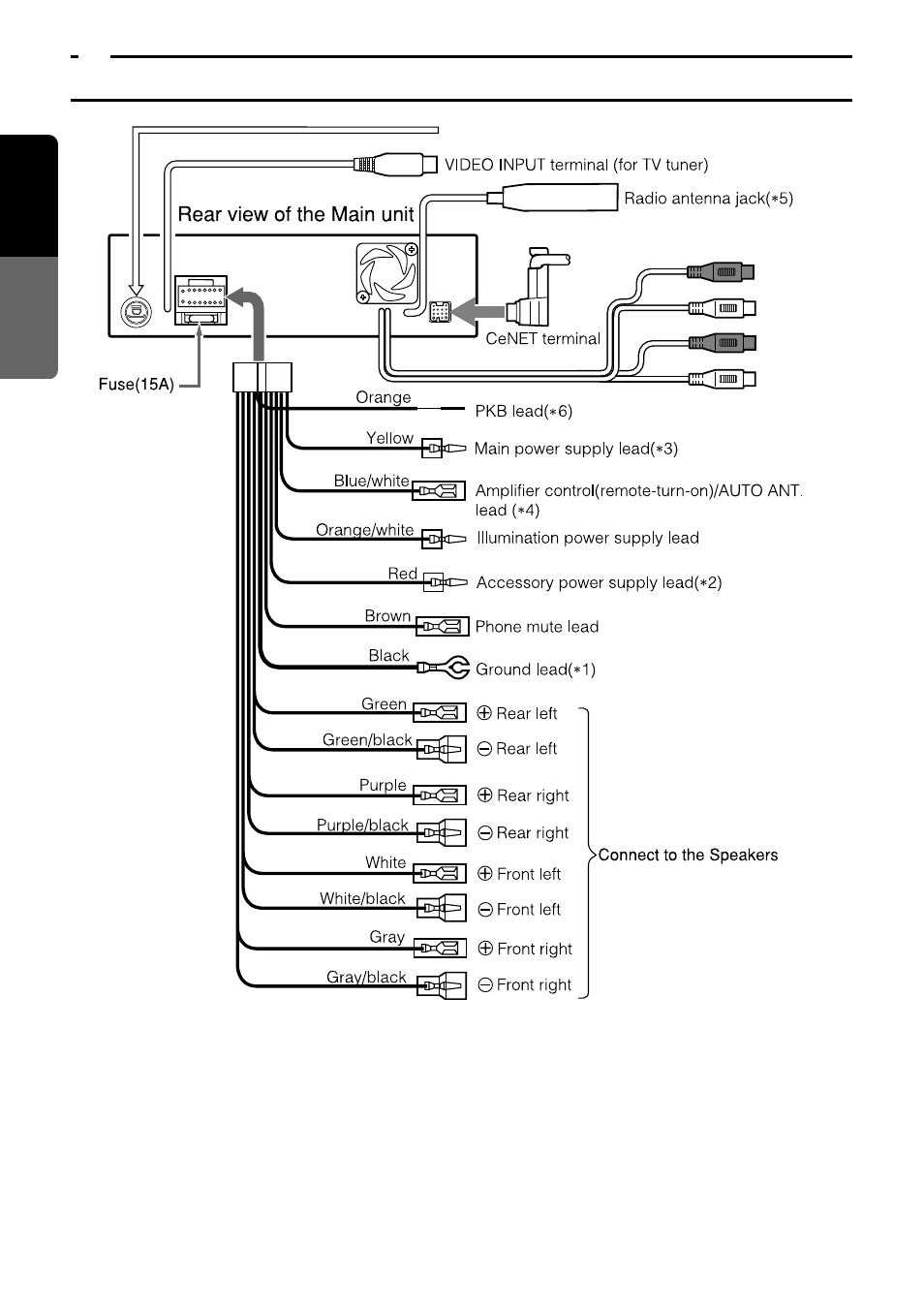

WIRE CONNECTION
