Cecilware ESP1 - Manual (Page 17)

17

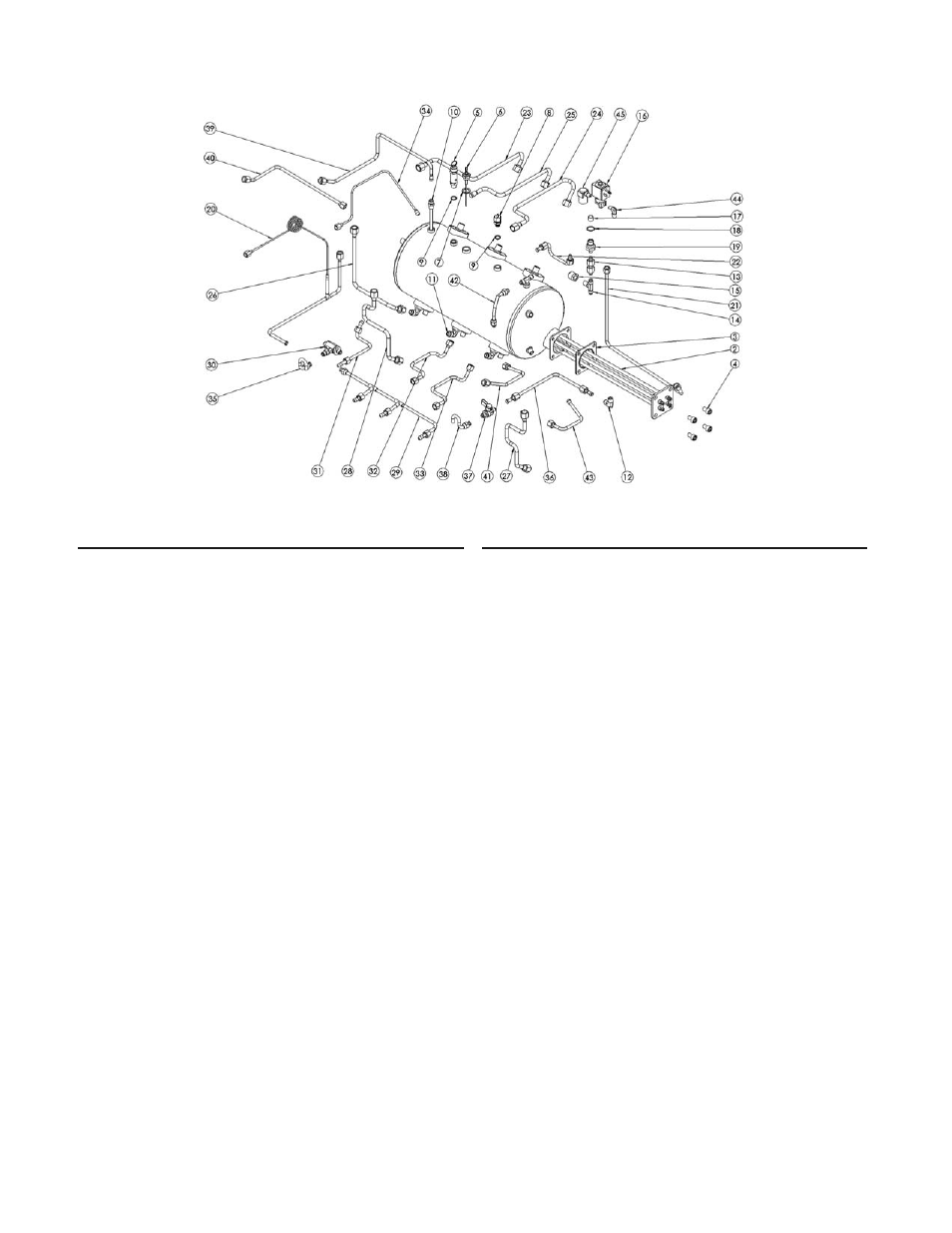

Boiler ESP 3 Hydraulic Circuit
Dia. Part List
# # Description Price
1 xxx BOILER . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 01317 HEATING ELEMENT 6000W 220V . . . . . . . . $ 249.40
3 01318 SI-GASKET ELEMENT FOR 220V . . . . . . . . . $ 16.00
4 xxx HEX SCREW (M10*16) . . . . . . . . . . . . . . . . .
5 xxx SAFETY VALVE . . . . . . . . . . . . . . . . . . . . . . .
6 01320 LEVEL PROBE ASSY
FOR ESP 220V . . . . . . . . . . . . . . . . . . . . . . .
$ 15.20
7 01321 VALVE GASKET BRASS
FOR ESP 220V . . . . . . . . . . . . . . . . . . . . . . .
$ 4.30
8 01319 ANTI-EDDY VALVE V.A.R.
FOR ESP 220V . . . . . . . . . . . . . . . . . . . . . . .
$ 19.50
9 01322 VALVE GASKET BRASS
FOR ESP 220V . . . . . . . . . . . . . . . . . . . . . . .
$ 3.40
10 xxx HOT WATER CONDUCT TUBE IN BOILER .
11 xxx ELBOW BRASS PT1/4*3/8 . . . . . . . . . . . . . .
12 xxx ELBOW BRASS CONNECTOR 3/8*PT3/8 . .
13 xxx AUT. WATER REFILL TUBE UPPER . . . . . . .
14 xxx BRASS CONNECTOR
PT1/4*1/2-20UNF*1/2-20UNF . . . . . . . . . . .
15 xxx BRASS CONNECTOR . . . . . . . . . . . . . . . . . .
16 xxx SOL. VALVE WATER REFILL
ASSY 208-240V 60Hz . . . . . . . . . . . . . . . . . .
17 xxx GROUP FILTER ST.STEEL D13.8*d10.5*11.5
18 xxx NBR O RING . . . . . . . . . . . . . . . . . . . . . . . . .
19 xxx AUT. WATER REFILL REDUCTION . . . . . . . .
20 xxx AUT. WATER REFILL TUBE MIDDLE . . . . . .
Dia. Part List
# # Description Price
21 xxx AUT.WATER REFILL TUBE REAR . . . . . . . . .
22 xxx PRESSURE GAUGE COPPER TUBE . . . . . .
23 xxx HEAT EXCHANGER OUTLET TUBE LEFT . .
24 xxx HEAT EXCHANGER OUTLET TUBE RIGHT .
25 xxx HEAT EXCHANGER OUTLET TUBE MIDDLE
26 xxx HEAT EXCHANGER RETURN TUBE LEFT . .
27 xxx HEAT EXCHANGER RETURN TUBE RIGHT .
28 xxx HEAT EXCHANGER RETURN TUBE MIDDLE
29 xxx FLOW METER INLET TUBE . . . . . . . . . . . . .
30 xxx S.C.N.R.DOSER VALVE 1/2*1/2*1/2 . . . . . . .
31 xxx HEAT EXCHANGER INLET TUBE LEFT . . . .
32 xxx HEAT EXCHANGER INLET TUBE MIDDLE . .
33 xxx HEAT EXCHANGER INLET TUBE RIGHT . . .
34 xxx STEAM PRESSURE GAUGE TUBE . . . . . . .
35 xxx EXPANSION DRAIN TUBE . . . . . . . . . . . . . .
36 xxx BOILER DRAIN TUBE REAR . . . . . . . . . . . . .
37 xxx PRESSURE RELEASE TAP
BULK UNIT PS1/4xPS1/4 . . . . . . . . . . . . . . .
38 xxx BOILER DRAIN TUBE FRONT . . . . . . . . . . .
39 xxx HOT WATER OUTLET TUBE REAR . . . . . . .
40 xxx STEAM OUTLET TUBE FRONT LEFT . . . . . .
41 xxx STEAM OUTLET TUBE FRONT RIGHT . . . .
42 xxx WATER LEVEL UPPER TUBE . . . . . . . . . . . .
43 xxx WATER LEVEL LOWER TUBE . . . . . . . . . . . .
44 xxx ELBOW BRASS CONNECTOR PT1/8 * PT1/4
45 xxx ELBOW BRASS CONNECTOR PF3/8 * PT1/8
xxx special order contact Cecilware for more information
