PS Engineering
PXE7300 Series IFE System
Installation and Operator’s Manual
200-973-0002 Page 2-2 April 2006
2.3.3 Mounting Rack Installation
Remove the unit from the mounting tray by unscrewing the 3/32" hex-head screw that is near the left edge
of the unit. Carefully slide the unit free of the tray. Set the unit aside in a safe location until needed. Install
the tray using six FHP 6-32 x ½" screws. The unit must be supported at front and rear of the mounting tray.
See Appendix B.
The tray mounting can be made in any area that exists for adding additional avionics. Instrument panel
mounting is accomplished in accordance with AC 43.13-2A, Chapter 2.
Existing Structure
(from behind
panel)
Avionics M ounting Rails
Existing Transponder
Center Avionics Stack
Factory Avionics Location
Factory Avionics M ounting Rails

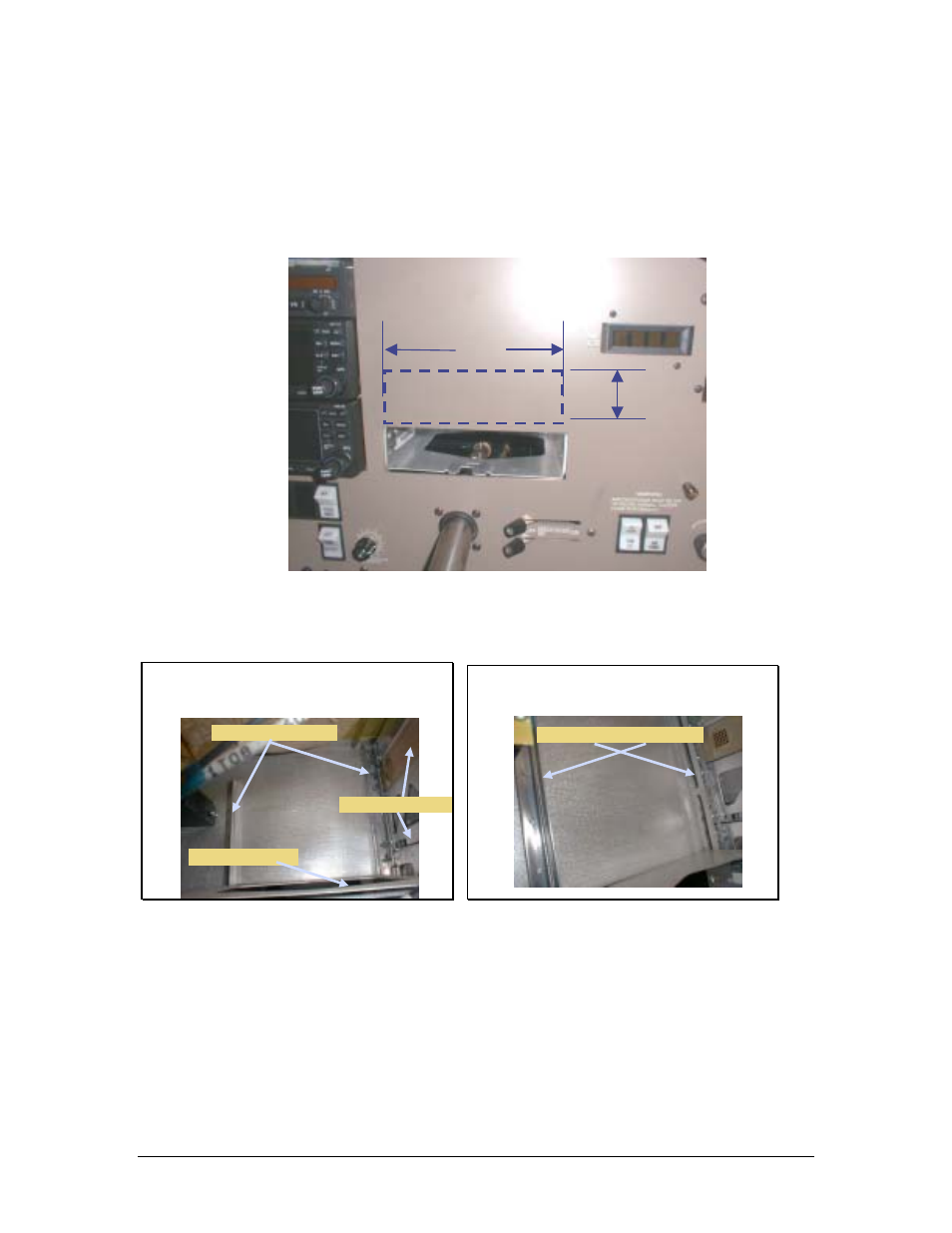

Figure 2-2 Avionics Mounting Rails (Typical)
2.00”
6.31”
Figure 2-1 Typical Tray Installation Location
