Page 21
PS Engineering
PXE7300
Installation and Operator’s Manual
200-973-0002
Appendix D
April 2006
B & C
A
B
A
C
#6-32 Screws
475-632-0012 (6 plcs)
Clipnuts
475-630-0002 (6 plcs)
Existing Avionics
Mounting Rails
(see detail A)
B & C
A
120-425-4402
Connector
475-440-0007 (2 plcs)
Screws
7.71 in
0.32 in
5.57 in
0.32 in
0.92 in
RSH
09-13-02
NEW RELEASE
CAGE CODE
NONE

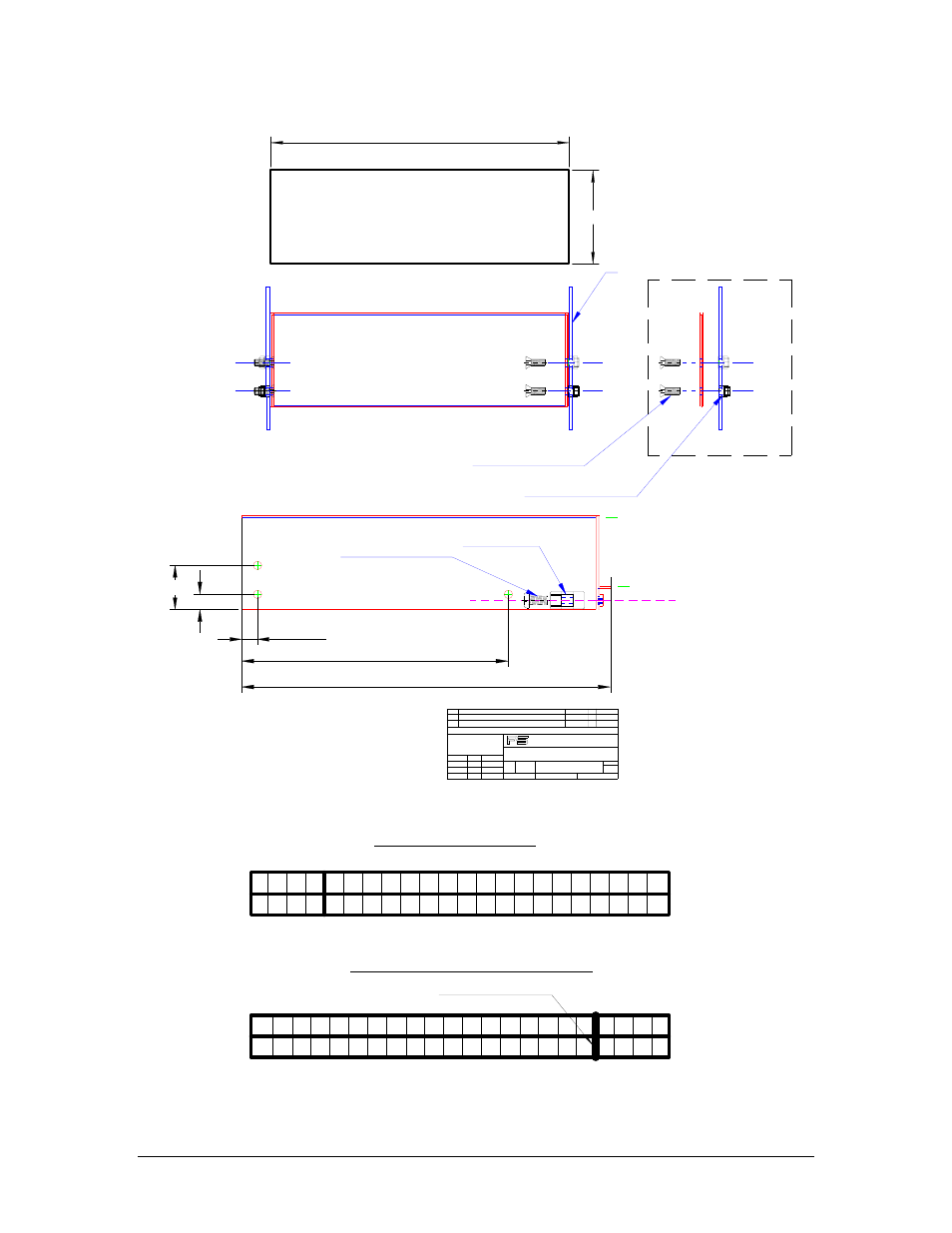

PXE7300 Tray Installation Drawing
0
A
CHECKED BY:
APPROVAL:
SCALE
ACTIVITY
DRAWN BY:
NAME
GLP
MATERIAL
REV
08-28-02
DATE
SIZE
TITLE
DESCRIPTION
GLP
08-28-02
-----
BY
1 OF 1
9800 Martel Road
(865) 988-9800
Lenoir City, Tn 37772
120-973-0430
SHEET
ENGINEERING
INCORPORATED
DRAWING NUMBER
REVISIONS
ECO
1
REV
DATE
Front of tray
Rear
of tray
A
Detail A
Clarify rail mounting assy
1
GLP
09-16-02
-----
6.25
1.97
Figure 6-3 Tray Installation Drawing, 002-973-0430
Connector viewed from the rear
J1
Z
Y
X
W
V
U
T
S
R
P
N
M
L
K
J
H
F
E
D
C
B
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
A
1
Connector Key
J1
Z Y X W V U T S R P N M L K
J H F E D C B
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2
A
1
Connector viewed from the FRONT of unit tray
Connector Orientation, PXE7300
