PS Engineering PXE7300 Pilot’s Guide - Manual (Page 2)

2 PXE7300 Pilot Guide Rev 4 March 2003
GENERAL INFORMATION
SCOPE
This section describes the operation of the PXE7300 In-Flight Entertain-
ment system. Operating controls consist of two rotary knobs with push-
push switches, and four momentary buttons.

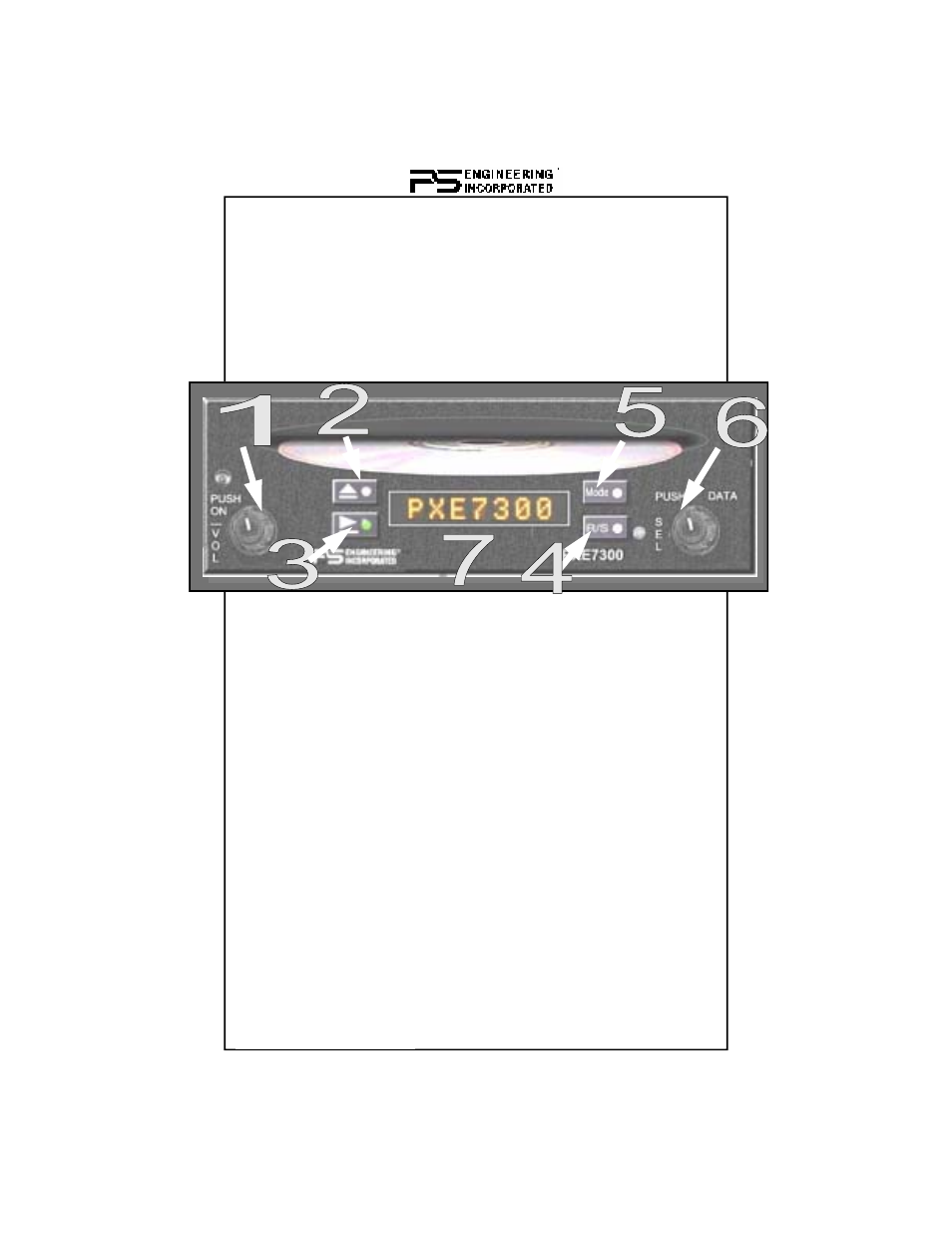

Front Panel Controls
Operating Controls
The single-disk player is designed for simple operation. The Disc player
will begin to play automatically when a Disc is inserted (unless the disc is
specially formatted as 7300 volume, see section on special functions). The
disc will play through in order, and then pause at the end. If a disc is not
inserted, the unit will be in the FM radio mode.
NOTE:
When a disc is inserted, the display will show “Reading . . .” for up to 20
seconds, depending on the media and amount of information contained.
Power/Volume Control (1)
The PXE7300 system is turned on and off by pushing the volume (left
hand) knob.
When the unit is first turned on, the green indicator lights should flash in
sequence top to bottom and left to right (2, 3, 5, 4).
The left knob is the volume control. Turning the knob clockwise will in-
crease the volume.
Stop/Eject Button (2)
The Stop/Eject button will stop the disc. Hold for 3 seconds to eject the
disc.
