PM1000-DAP Dual Audio System Intercom Page 2 April 2008
Section I General Information
1.1 Introduction
The PM1000-DAP, is a panel mounted, 2-
place intercom system (ICS) designed for instal-
lation in aircraft with existing dual audio control
panels (ACP). Please read this manual com-
pletely before installation to minimize the risk
of damage to the unit and to become familiar
with all the features.
1.2 Scope
This manual contains installation and op-
erational instructions for the following PS Engi-
neering unit:
Part Number Description
11900D w/Pilot ISO for Dual ACP Installation
1.3 Description
The PM1000-DAP is a 2-place, panel
mounted intercom with individual volume and
squelch controls for the pilot and copilot. This
unit is specifically designed to provide voice-
activated intercom in a dual audio control panel
aircraft.
A front panel mode switch allows the pilot
to select multiple intercom configurations:
"ISO" mode isolates the pilots from the
intercom and connects to the aircraft radio. This
mode defeats the intercom capability. The copi-
lot retains all radio functions.
"ALL" mode places all headsets on a party
line. Each pilot hears their selected aircraft ra-
dio, entertainment and can use the intercom.
“CREW” (only if equipped with optional
expansion unit ) allows the pilot and copilot
positions to hear the aircraft radios and use the
intercom, while the rear passengers can have
their own intercom conversation without disturb-
ing the crew.
The LED shows green when power is on, and
is not a transmit indicator. The PM1000-DAP
does not have a direct interconnection with the
aircraft audio, and therefore will not affect opera-
tion if power is removed.
Because the crew’s intercom volume control
does not affect the aircraft radio volume, it is pos-
sible to select various balances of volume level
between the ICS and the aircraft radio while in
the ALL mode. Reducing the intercom volume,
the pilots can place the aircraft radio in the fore-
ground while the ICS is in the background.
1.4 Approval Basis FAA-TSO
The PM1000-DAP, part is FAA Approved
under TSO-C50c. It is the installer’s responsibil-
ity to determine approval basis (Part 91, 121, Part
135, etc.) and suitability for use.
1.5 Specifications
Input power: 13.8 - 27.5 Volts DC
Current Drain: < 250 mA (Externally fused at 1 Amp)
Audio Distortion:
<10% @ 70 mW into 150
Ω load
3 dB mic Frequency Response: 300 Hz to 6.0 kHz
Unit weight:
12 Ounces (0.34 kg)
Dimensions: 1.25" H x 2.60" W x 5.50" D
(3.2 x 6.6 x 14 cm)
Temperature -20º C to +55º C
Altitude 15,000 ft.
1.6 Equipment required but not
supplied
A. Interconnect wiring
B. Existing Dual Audio Control Panel System
C. Circuit Protection, 1 Amp.
D. Headsets
1.7 License Requirements
None
Revision 5 Page 11 200-191-0000
1A
11-33 VDC 14
1
11900D Sub-D DB-25 Male
Copilot Phones Lo
Copilot Phones Hi
6
19
21
10
Copilot Mic Audio Hi
Mic Audio Lo
Pilot Mic Audio Hi
Pilot Mic Audio Lo
15
3
16
2 Power Out (+9VDC)
Expansion Audio In
Expansion Audio Out
Ground
23
11
These pins used for expansion
unit only
NOTES:
1. INTERCOM SYSTEM MUST BE ORDERED SPECIFICALLY
FOR USE WITH DUAL AUDIO SYSTEM

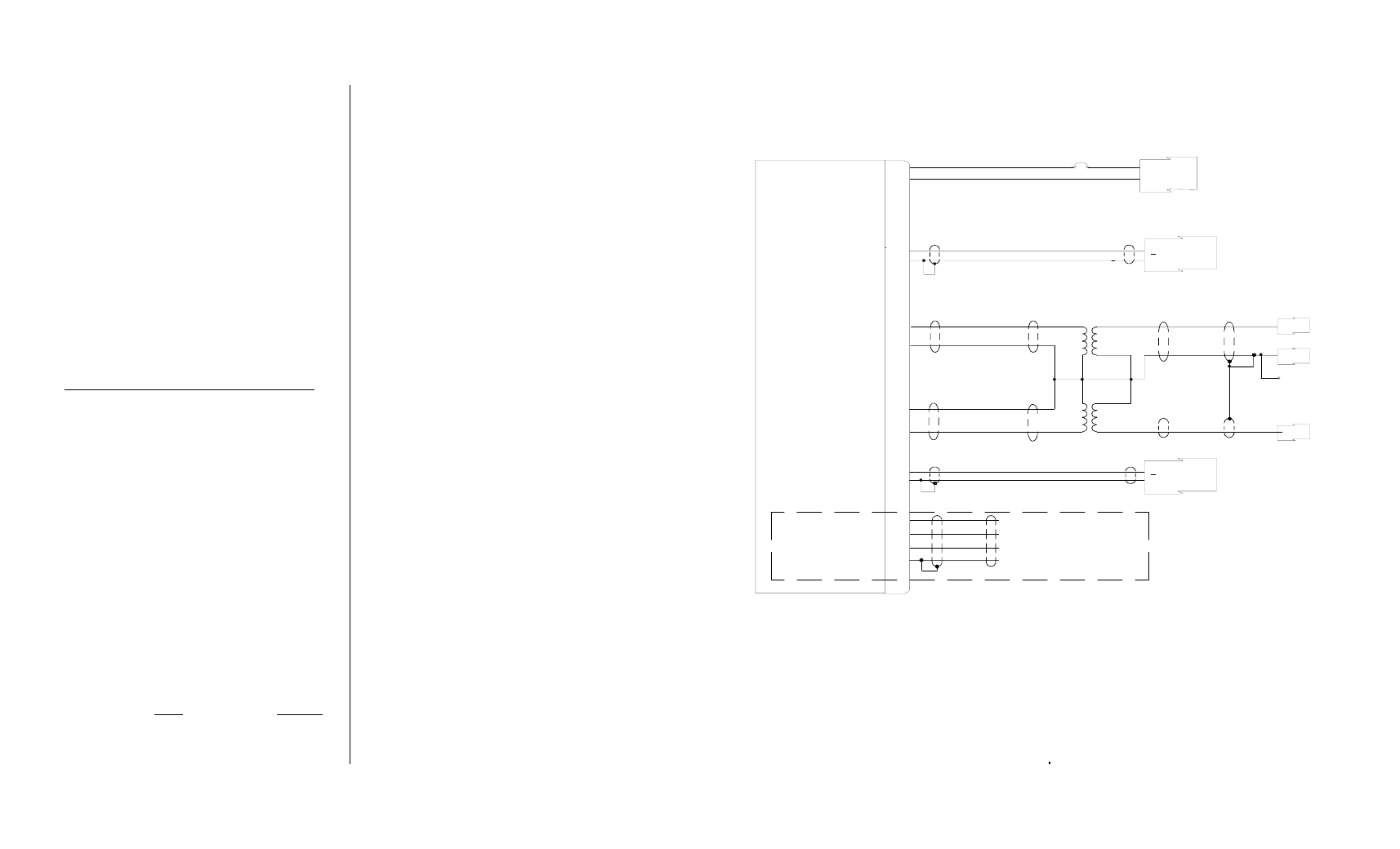

2. CAUTION: This wiring diagram was drawn for King Air 200, Serial
BB973. It is intended solely as a guide. You must check wiring diagrams supplied with
the airplane to determine that the system will be compatible.
3. This diagram is created from Beechcraft diagram "Audio System, Dual System, 415 #R402845."
4. All wire must conform to MIL-22759 or 27500. Minimum 24 gage shielded wire.
5. Use 2-, 3-, and 4-conductor with shield as indicated.
6. PL33 Pins are previously unused pins.
7. Power and ground may be picked up at PL33 if wire size permits.
8. This configuration is for 2-places only.
Contact the factory for information on expanding this system.
Power In
Ground
Pilot Mic Gnd
a
PL 32
a
Copilot Mic Gnd
18
5
Pilot Phone Audio Hi
Pilot Phone Audio Lo
43 PL 14
PL 33
11 PL 14
6 PL 63
Audio Ground
DD
EE
PL 32
Power Ground
King Air 200 w/ dB Systems
