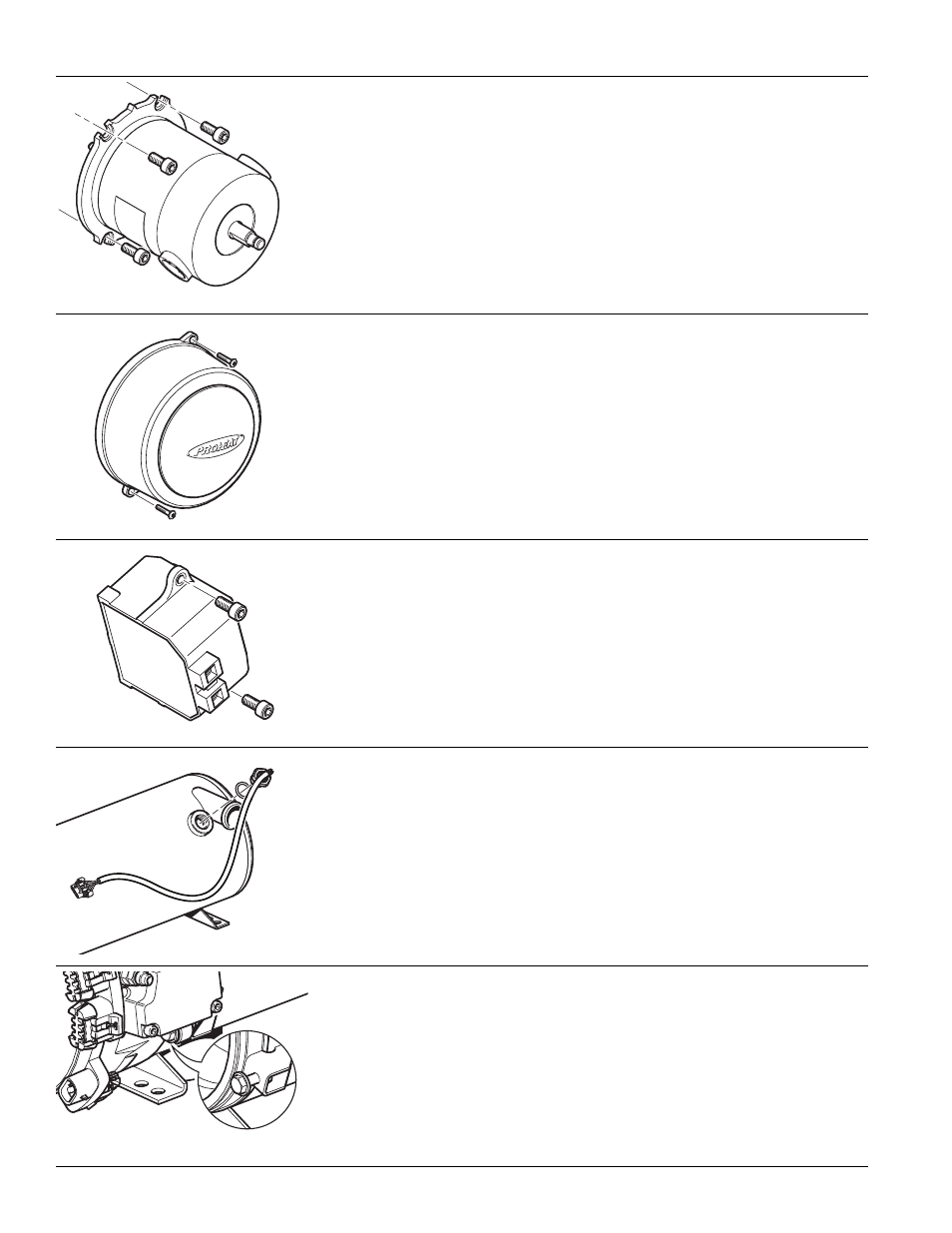

Ignition Module
•
Torque screws (2) to 75 in. lbs. ± 7 in. lbs. (8.5 Nm ± 0.8 Nm).
Blower Housing
•
Torque bolts (2) to 75 in. lbs. ± 7 in. lbs. (8.5 Nm ± 0.8 Nm).
Motor
•
Rotate motor shaft until motor drops into fuel pump gear.
•
Ensure correct alignment (refer to ‘Motor Replacement’ on page 4-33)
•
Torque bolts (4) to 75 in. lbs. ± 7 in. lbs. (8.5 Nm ± 0.8 Nm).
Dual Mode Temperature Sensor
•
Install O-ring onto sensor.
•
Torque sensor to 100 in. lbs. ± 10 in. lbs. (11.6 Nm ± 1.1 Nm).
Burner Head/Heat Exchanger
•
Torque bolts (2) to 100 in. lbs. ± 10 in. lbs. (11.6 Nm ± 1.1 Nm).
